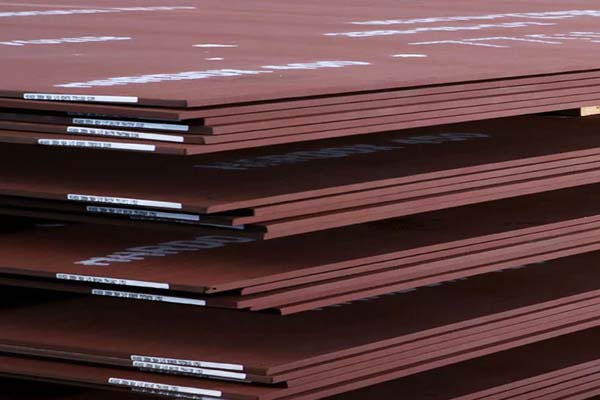

Wear resistant plate, also called abrasion resistant or AR plate, is quenched and tempered steel plate made to stand up to abrasion and impact. Grades are classed by Brinell hardness. Sachiya Steel International stocks three classes, 400, 450 and 500, in thicknesses from 3 mm to 130 mm, widths up to 3,350 mm and lengths up to 14,630 mm, with cut-to-size on request.
Wear Resistant Plate Grades and Hardness
| Product | Hardness | Thickness | Width and length | Other figures |
|---|---|---|---|---|
| Wear resistant plate range | AR400: 360 to 440 BHN AR450: 420 to 500 BHN AR500: 480 to 540 BHN |
3 mm to 130 mm | Up to 3,350 mm wide, up to 14,630 mm long | Standards: typically EN 10029 / EN 10051 |
| Wear 400 plate | 370 to 430 HBW (400 HBW nominal) | 4.0 to 130 mm | Up to 3350 mm wide, up to 14630 mm long | Typical yield strength 1100 MPa |
| Wear 450 plate | 425 to 475 HBW | 3 mm to 80 mm | Up to 2,440 mm wide, up to 7,315 mm long | Typical yield strength about 1,250 MPa; elongation 10% min |
| Wear 500 plate | 470 to 530 HBW (4 to 32 mm) 450 to 540 HBW (32.1 to 103 mm) |
4.0 to 103.0 mm | Up to 3,350 mm wide, up to 14,630 mm long | Typical yield strength 1,400 MPa; Charpy V impact energy 37 J at -40 °C |
The AR400, AR450 and AR500 ranges are the general class ranges given on the range page. The Wear 400, 450 and 500 ranges are the figures given on each grade page.
Choosing a Wear Resistant Plate Grade
General wear, with bending and welding in the workshopWear 400. At 370 to 430 HBW it is the easiest of the three to cut, bend and weld, and it needs no preheat on plate up to 20 mm.
More abrasion, some forming still neededWear 450, at 425 to 475 HBW. The range page puts AR450 at 15 to 20% more abrasion resistance than AR400. Preheat to between 75 and 200 °C, depending on thickness, before welding.
Severe sliding abrasionWear 500, at 470 to 530 HBW. It lasts longer in high-abrasion work, but it is harder to bend, needs preheating to 100 to 200 °C before welding and has to be drilled with carbide-tipped tools.
Impact as well as wearWear 400 has higher impact toughness than Wear 500. Wear 500 is listed with a Charpy V impact energy of 37 J at -40 °C. A Tough Grade of Wear 500 is also listed, in 4.0 to 38.1 mm.
Thick sectionsWear 400 goes up to 130 mm and Wear 500 up to 103 mm. Wear 450 stops at 80 mm.
Chutes, hoppers and conveyor linersAR liners in transfer chutes and conveyor skirt plates last 3 to 6 times longer than mild steel. Bulldozer blades, loader edges and grader mouldboards do not need AR500 hardness; AR400 and AR450 handle soil and gravel.
