Large Diameter Pipe Manufacturers In India

Large Diameter Steel Pipe Specifications

The specifications below summarise the constructions, sizes, and finishing options we hold. Exact size and wall thickness are confirmed at the time of order against the governing standard.

• Ends: plain end, bevelled end, or square cut, with plastic or metal end protectors.
• Lengths: single random, double random, or fixed cut lengths to order; 6 metre lengths are standard for IS 3589 pipe.
• Surface and finish: bare, painted, coated, or galvanised, with stainless finishes available where the grade calls for it.
• Value-added work: bevelling, cutting, X-ray welding for custom fabricated sections, and heat treatment.

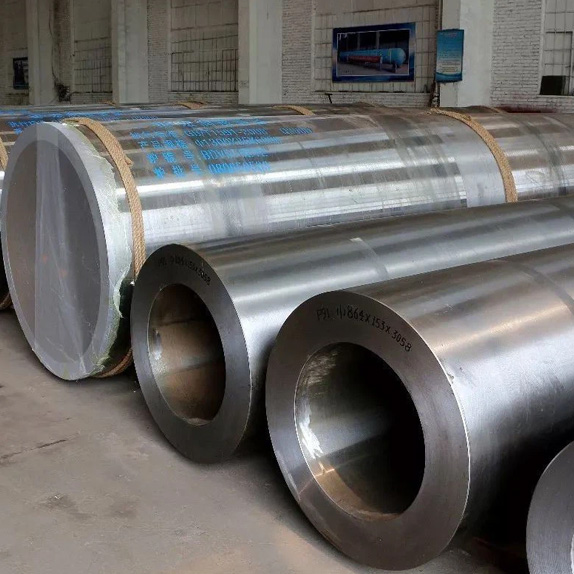

What is a Large Diameter Steel Pipe?

A large diameter steel pipe is a steel conduit with an outer diameter at the upper end of the standard pipe range, generally 16 inches (406.4 mm) and above. There's no single universal cut-off, and in pipeline and infrastructure procurement the term is most often applied to pipe of 24 inches (610 mm) and larger. The defining feature is the bore: a wider diameter carries far more fluid at a given velocity, which is why these pipes anchor long-distance transmission and bulk distribution systems.

Most big diameter steel pipe is welded rather than seamless. The reason is practical. Conventional seamless production becomes difficult and costly beyond roughly 24 inches, so above that size the economical route is to form pipe from rolled plate or coil and weld the seam. Carbon steel is the default material for buried water mains and oil and gas lines. Stainless steel, duplex, and nickel alloys are specified where the process fluid is corrosive or the service temperature is severe. A large diameter pipe is rarely an off-the-shelf item: diameter, wall thickness, length, end preparation, and coating are usually set against a project specification.

Large Diameter Pipe Manufacturing Processes

Large diameter pipe is produced by 5 main routes, each with its own diameter band, pressure rating, and economics: spiral submerged arc welding (SSAW), longitudinal submerged arc welding (LSAW), electric resistance welding (ERW), rolled-and-welded fabrication, and seamless. The construction chosen depends on size, operating pressure, and the medium being carried.

Spiral Submerged Arc Welded (SSAW) Pipe

Spiral welded pipe is formed by feeding steel strip into a forming head at an angle, so the seam runs in a helix along the pipe. The diameter range is the widest of any construction, typically 20 inches to 100 inches (508 mm to 2540 mm). Because a single strip width can produce several diameters, SSAW is the most flexible and cost-effective option for large bores. It suits low to medium pressure duties: water transmission mains, slurry lines, piling, and casing. The longer helical seam is its main limitation, which is why spiral pipe isn't the first choice for high-pressure hydrocarbon service.

Longitudinal Submerged Arc Welded (LSAW) Pipe

LSAW pipe is made from steel plate that is pressed into a cylinder and joined with a single straight seam by double-sided submerged arc welding. The usual range runs from 16 inches to 60 inches (406 mm to 1500 mm). Plate origin and the straight, fully fused seam give LSAW pipe strong geometric accuracy and good pressure resistance, so it competes directly with seamless and ERW pipe between 16 and 24 inches. Long-distance oil and gas transmission lines built to API 5L grades commonly use LSAW pipe for these reasons.

Electric Resistance Welded (ERW) Pipe

ERW pipe is formed continuously from coil and welded along a longitudinal seam using high-frequency electric current, without filler metal. Sizes run from half an inch up to about 24 inches (610 mm), and most large-diameter ERW sits at 20 inches (508 mm) and below; a few advanced high-frequency mills reach roughly 26 inches (660 mm). Wall thickness commonly reaches about 20 to 22 mm in modern high-frequency production. The advantages are dimensional consistency, high production speed, and lower cost, which make ERW pipe a strong choice for low to medium pressure water, structural, and general conveyance lines.

Rolled-and-Welded Fabricated Pipe

This is the route we use for custom large bores that fall outside standard mill sizes. Plate is rolled to the required diameter and welded, then the seam is examined by 100% radiography. Fabricated pipe is produced to the electric-fusion-welded standards (ASTM A671, A672, and A691 for carbon and alloy steel, ASTM A358 and A409 for stainless) and covers 24 inches and above to custom dimensions. We apply this method to deliver thick-wall and oversized sections, and it's how we supply 100% X-ray welded large diameter stainless steel pipe in sizes and wall thicknesses that no rolling mill stocks as standard.

Seamless Large Diameter Pipe

Seamless pipe has no weld at all, since it is pierced and elongated from a solid billet. It remains the benchmark for the most demanding high-pressure and high-temperature service. In commercial practice it is most commonly available up to about 24 to 26 inches, after which welded and fabricated constructions become the practical and economical choice. Seamless large diameter pipe is specified where weld integrity cannot be a variable, such as critical refinery and power plant lines.

Materials and Grades We Offer

We supply large diameter pipe across 5 material families, selected by the corrosion, pressure, and temperature demands of the line.

Standards and Specifications

Our large diameter pipe is built and certified to Indian and international standards. The standard chosen depends on the service: water and sewage, line pipe, pressure service, or stainless process duty.

Large Diameter Steel Pipe Dimension Chart

The chart lists outer diameters from 16 to 48 inches with standard (STD) and extra-strong (XS) wall thickness, both to ASME B36.10M. Other schedules and custom walls are produced to order.

STD and XS wall thickness become constant at 9.53 mm and 12.70 mm respectively for these sizes. Spiral and fabricated pipe is produced in heavier walls and larger diameters beyond this chart, on a project basis.

Coatings and Surface Protection

Coating protects buried and exposed large diameter pipe from corrosion and extends service life. We apply 6 coating systems, each tied to a recognised standard.

Applications of Large Diameter Steel Pipe

Large diameter pipe serves 5 broad sectors: oil and gas transmission, water supply and sewage, structural and piling, power and petrochemical, and mining. The construction and grade are matched to the duty in each case.

Selection guidance: ERW pipe isn't appropriate for high-pressure hydrocarbon trunk lines; LSAW or seamless should be specified there. Spiral pipe is well suited to water and piling but isn't the right choice where the seam length raises a high-pressure integrity concern.

Testing, Inspection and Documentation

Every consignment is verified before dispatch and supplied with full traceability. Standard testing and documentation include:

• Hydrostatic pressure testing and radiographic (X-ray) examination of welded seams
• Tensile, hardness, flattening, flaring, and intergranular corrosion (IGC) testing as applicable
• Positive Material Identification (PMI) and chemical spectro analysis
• Mill test certificates to EN 10204 3.1 and 3.2
• NACE MR0175 and MR0103 compliance where sour service is specified
• Third-party inspection and NABL-approved laboratory test reports on request
• Heat treatment charts, material traceability records, and a quality assurance plan

Why Buy Large Diameter Steel Pipe From Sachiya Steel International

We hold large diameter steel pipe for sale across carbon, stainless, duplex, and alloy grades, backed by full certification and ex-stock availability on common sizes. As one of the established Large Diameter Pipe Manufacturers In India, we fabricate custom oversized and thick-wall sections with 100% X-ray welded seams, and we export to markets across the Middle East, Europe, South East Asia, and beyond. When you buy large diameter steel pipe from us, you'll receive accurate dimensions, documented test results, and a single point of contact from quotation through delivery. Contact our team for a quotation against your specification.

Shipping & Packaging

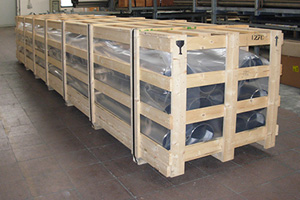

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Large Diameter Pipes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

• Heavy-duty wooden boxes with moisture barrier lining
• HDPE stretch film wrapping on all bundles
• Plastic end caps on pipe ends
• Silica gel desiccants to minimize moisture exposure
• ISPM-15 fumigated wooden packaging for export

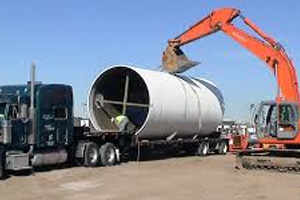

Pipe Bundle Yard Staging

Container End-Cap Protection

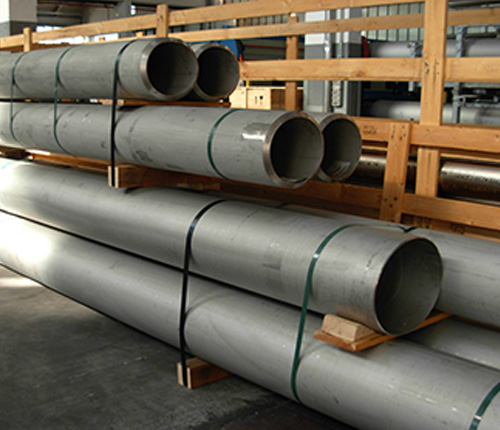

Wrapped Export-Ready Bundles
