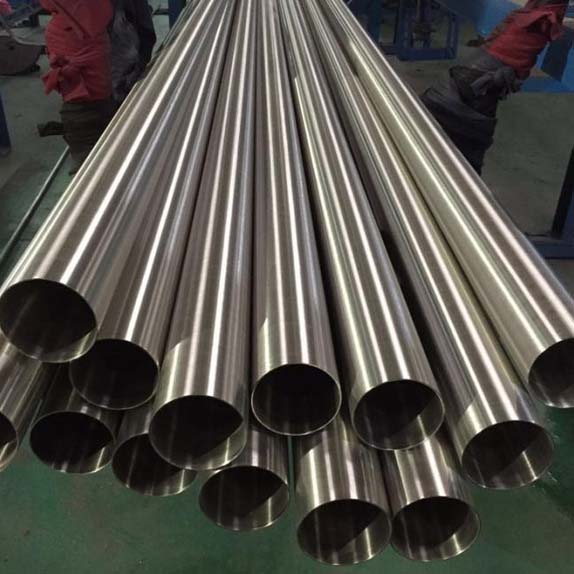

ASTM A312 Stainless Steel 317L Pipe Specifications

The specifications of the SS 317L pipe, including standards, type, dimensions, length, form, and more, are covered in the table below:

Parameter Details
Standard ASTM A312 / ASME SA312
Pipe Type Seamless / Welded / ERW / EFW
Size Range (Seamless) 1/8" NB to 24" NB
Size Range (Welded) 6" NB to 48" NB
Wall Thickness SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, XXS (or as required)
Length Single Random, Double Random, Cut Length
End Type Plain End (PE), Bevelled End (BE), Threaded
Form Round, Square, Rectangular, Hydraulic Pipes
Surface Finish Annealed & Pickled, Polished, Bright Annealed

Stainless Steel 317L Pipe Sizes and Schedules

SS 317L pipe is available from 1/8” to 24” NPS in schedules 5S through XXS. Lengths include single random (5–7 m), double random (10–12 m), and custom cuts.

Parameter Seamless Pipe Welded Pipe
NPS Range 1/8” – 24” 6” – 48”
OD Range 10.3 – 323.8 mm 10.3 – 914.4 mm
Wall Thickness 0.6 – 12.7 mm 0.8 – 12.7 mm
Length Single Random, Double Random, Cut Length Up to 26 metres
Schedules SCH 5S, 10S, 40S, 80S, 160, XXS SCH 5S, 10S, 40S, 80S

Stainless Steel 317L Pipe Price

SS 317L pipe price ranges from approximately ₹390 to 600/kg in India and $8–15/kg internationally. The final price depends on OD, wall thickness, schedule, length, and order volume. The grade costs 15–25% more than 316L due to higher nickel and molybdenum content. Contact our team for a current quote.

Chemical Composition of ASTM A312 TP317L Pipe

The table below lists the chemical composition of Grade TP317L (UNS S31703) per ASME SA-312 / ASTM A312.

Carbon C
Max 0.030%
Manganese Mn
Max 2.00%
Phosphorus P
Max 0.045%
Sulfur S
Max 0.030%
Silicon Si
Max 1.00%
Chromium Cr
18.0 – 20.0%
Nickel Ni
11.0 – 15.0%
Molybdenum Mo
3.0 – 4.0%
Nitrogen N
Max 0.10%
Iron Fe
Balance

Mechanical Properties of SS 317L Pipe

The ASTM A312 TP317L pipe conforms to the following minimum mechanical requirements at room temperature.

75 / 515
MPa (min)
Tensile Strength
30 / 205
MPa (min)
Yield Strength
35%
(min)
Elongation
95
Brinell (HBW)
Hardness (max)
Property Value Unit
Tensile Strength (min) 75 / 515 ksi / MPa
Yield Strength, 0.2% Offset (min) 30 / 205 ksi / MPa
Elongation (min) 35 %
Hardness (max) 217 Brinell (HBW)
Hardness (max) 95 Rockwell B (HRB)
Request a Quote for SS 317L Pipe Request a Quote

Stainless Steel 317L Pipe Equivalent Grades

International designations equivalent to SS 317L, like UNS S31703 and W. Nr 1.4438, are listed in the table below.

Standard / Region Designation
USA UNS S31703
Germany / EU (EN/DIN) 1.4438 / X2CrNiMo18-15-4
Japan (JIS) SUS 317L

Stainless Steel 317L Pipe Industrial Applications

317L stainless steel pipe serves 5 major industries where acidic or chloride-rich conditions demand performance beyond 316L.

Chemical & Petrochemical Processing

Chemical plants use Alloy 317L pipe for sulphuric acid, phosphoric acid, and chloride-bearing process streams in reactor piping and heat exchanger lines.

Pulp & Paper Industry

Bleaching stages in pulp mills expose piping to chlorine dioxide and hypochlorite. Type 317L pipe handles these conditions without the pitting failures that affect lower-molybdenum grades.

Power Generation

Flue gas desulphurisation (FGD) systems and condenser tubing in power plants rely on 317L pipe for resistance to acidic condensates in scrubber environments.

Oil & Gas

Downstream processing and fluid catalytic cracking (FCC) units use 317L pipe where naphthenic acid and chloride-bearing crude fractions are present.

Food Processing

SS 317L pipe's resistance to citric, lactic, and organic acids makes it suitable for sanitary process lines in food-grade piping systems.

317L vs 316L Stainless Steel Pipe – Comparison for Buyers

317L pipe carries higher molybdenum (3.0–4.0% vs 2.0–3.0%) and nickel (11.0–15.0% vs 10.0–14.0%) than 316L, providing stronger corrosion resistance in chloride and acidic environments at a 15–25% price premium.

Property 317L 316L
Molybdenum 3.0–4.0% 2.0–3.0%
Nickel 11.0–15.0% 10.0–14.0%
Chromium 18.0–20.0% 16.0–18.0%
Carbon (max) 0.030% 0.030%
Chloride Pitting Resistance Superior Good
Cost 15–25% higher Baseline

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect 317L pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What Sizes are Available for Stainless Steel 317L Pipe? +
SS 317L pipe is available from 1/8” to 24” NPS in schedules 5S through XXS, with wall thickness from 0.6 to 12.7 mm.
What is the Price of Stainless Steel 317L Pipe? +
Pricing starts from approximately ₹390/kg in India. Final cost depends on OD, schedule, length, and quantity. Request a quote for current rates.
What is the Difference between 317L and 316L Stainless Steel Pipe? +
317L has higher molybdenum (3.0–4.0% vs 2.0–3.0%) and nickel (11.0–15.0% vs 10.0–14.0%), giving it better chloride pitting and acid resistance at a 15–25% premium.
Can 317L Stainless Steel Pipe be Welded? +
Yes. All standard fusion and resistance methods work except oxyacetylene. Use AWS E317L-16 or ER317L filler metal. Low carbon content prevents sensitisation.
What ASTM Specification Covers 317L Stainless Steel Pipe? +
ASTM A312 / ASME SA-312 covers seamless and welded pipe. ASTM A358 covers EFW pipe.
What Industries Use SS 317L Pipe? +
317L pipe is used in different industries like chemical processing, pulp and paper, power generation, oil and gas, and food processing, where chloride and acid resistance is important.
What is the Maximum Operating Temperature for 317L Stainless Steel Pipe? +
317L pipe handles continuous service up to approximately 1,500°F (816°C), with low scaling in ordinary atmospheres up to 1,600–1,650°F (871–899°C).
Where Can I Buy SS 317L Pipe? +
Contact Sachiya Steel International. We supply seamless, welded, ERW, and EFW pipe in all standard sizes with mill test certificates and traceability.
