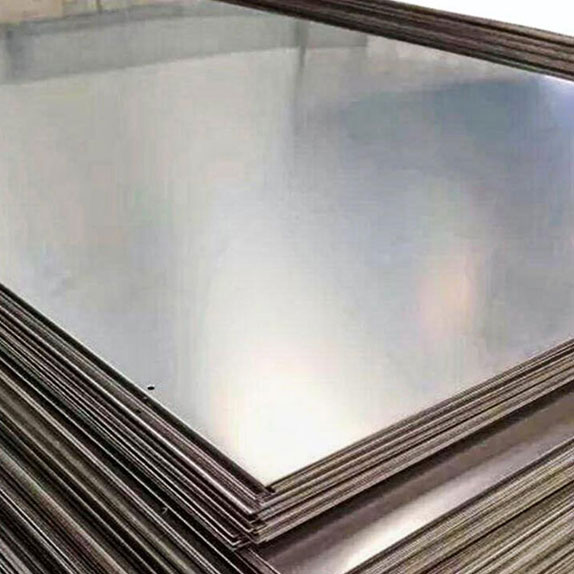

Specifications of ASTM A517 Plates

The specifications of ASTM A517 plates, including surface finish, length and standard, are listed in the table below.

Parameter Specification
Standard ASTM A517 / A517M
Grades / Classes Grade A, B, E, F, H, P, Q, S
Thickness Range 6 mm to 150 mm (typical; varies by grade)
Width Range Up to 3350 mm
Length Range Up to 14900 mm
Heat Treatment Quenched and Tempered
Impact Testing Optional (Charpy V-Notch as per requirement)
Surface Finish Hot rolled, shot blasted, or pickled

Available Sizes of ASTM A517 Plates

A517 plates are stocked in the following dimensions.

Parameter Range
Thickness 6 to 150 mm (0.188 to 6 in)
Width 1,200 to 3,350 mm (48 to 132 in)
Length 1,900 to 14,900 mm (73 to 588 in)

Maximum Thickness by Grade (Comparison Table)

This table compares the maximum thickness across all A517 grades.

Grade Max Thickness
A, B 1.25 in (32 mm)
H, S 2 in (50 mm)
F 2.50 in (65 mm)
P 4 in (100 mm)
E, Q 6 in (150 mm)

ASTM A517 Plates Price

ASTM A517 plate prices range from Rs. 45,000 to Rs. 85,000 per metric ton in India, and $800 to $1,600 per metric ton USD. The price depends on grade, thickness, and quantity. Contact us for current pricing.

ASTM A517 Plate Grades

ASTM A517 has 8 grades (A, B, E, F, H, P, Q, and S) with identical mechanical properties but different chemistries and thickness limits.

Grade A

Grade A is a high-strength alloy steel plate that goes through quenching and tempering for pressure vessels.

Grade B

Grade B is a high-strength alloy steel plate for pressure vessels, available in thicker sections than Grade A while maintaining good toughness.

Grade E

Grade E provides higher yield strength than Grades A and B that makes it suitable for pressure vessels requiring improved load-bearing capacity.

Grade F

Grade F provides similar strength to Grade E but with enhanced impact toughness for more critical service conditions.

Grade H

Grade H is made for pressure vessels that need high strength and reliable performance at lower temperatures.

Grade P

Grade P provides high strength levels for pressure vessel applications where weight reduction and efficiency are important.

Grade Q

Grade Q is a very high-yield plate used in heavy-duty pressure vessels that demand superior strength and durability.

Grade S

Grade S is engineered for applications requiring high strength combined with improved notch toughness, especially in low-temperature environments.

Chemical Composition of ASTM A517 / SA-517 Plates

The chemical composition of ASTM A517 Grade B and E Plates, along with their proportion is listed in the table given below. Grade E's higher chromium and molybdenum improve hardenability for thicker sections.

Grade B

Carbon C
0.15 - 0.21%
Manganese Mn
0.70 - 1.00%
Phosphorus P
0.035% max
Sulfur S
0.035% max
Silicon Si
0.15 - 0.35%
Chromium Cr
0.40 - 0.65%
Molybdenum Mo
0.15 - 0.25%
Vanadium V
0.03 - 0.08%
Titanium Ti
0.01 - 0.04%
Boron B
0.0005 - 0.005%

Grade E

Carbon C
0.12 - 0.20%
Manganese Mn
0.40 - 0.70%
Phosphorus P
0.035% max
Sulfur S
0.035% max
Silicon Si
0.10 - 0.40%
Chromium Cr
1.40 - 2.00%
Molybdenum Mo
0.40 - 0.60%
Vanadium V
Not specified
Titanium Ti
0.01 - 0.10%
Boron B
0.001 - 0.005%

Mechanical Properties of ASTM A517 Plates

The mechanical strength of ASTM A517 Plates, including tensile strength and elongation, is listed in the table below.

690 / 100
MPa (ksi)
Yield Strength (min)
115/135
MPa (ksi)
Tensile Strength
16
%
Elongation (min)
45
% (min)
Reduction in Area
620 / 90
MPa (ksi)
Yield Strength (min)
105/135
MPa (ksi)
Tensile Strength
14
%
Elongation (min)
45
% (min)
Reduction in Area
Property Up to 2.5 in (63.5 mm) Over 2.5 in to max
Yield Strength (min) 100 ksi (690 MPa) 90 ksi (620 MPa)
Tensile Strength 115 - 135 ksi (795 - 930 MPa) 105 - 135 ksi (725 - 930 MPa)
Elongation (min) 16% 14%
Reduction in Area 45% min 45% min

Charpy V-Notch Impact Requirements

ASTM A517 plates require Charpy V-notch testing with a minimum lateral expansion of 0.015 in (0.38 mm) at a purchaser-specified test temperature. Grade B can be guaranteed to -40°F (-40°C).

Request a Quote for ASTM A517 Plates Request a Quote

Industrial Applications of ASTM A517 Pressure Vessel Plates

ASTM A517 plates serve three main sectors.

Boilers & Fusion Welded Pressure Vessels

ASTM A517 plates are used as shell, head, and nozzle material in boiler drums and unfired pressure vessels per ASME BPVC.

Cryogenic & LNG Storage Tanks

These A517 plates are used in moderate low-temperature service when impact testing is specified.

Oil, Gas & Petrochemical Equipment

A517 steel plates are used in separator vessels, heat exchangers, and reactor shells in refineries.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect ASTM A517 Plates from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end plate
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Plate Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies alloy steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is the chemical composition of ASTM A517 Grade F Plates? +
Grade F contains controlled levels of carbon, manganese, chromium, molybdenum, and nickel per ASTM A517/A517M-17, optimised for plates up to 2.50 in (65 mm).
What are the mechanical properties of ASTM A517 Plates? +
All grades require 100 ksi (690 MPa) minimum yield, 115 to 135 ksi tensile, and 16% elongation for plates up to 2.5 in thick.
What is the maximum plate thickness available for each ASTM A517 Grade? +
Grades A and B reach 1.25 in (32 mm). Grades E and Q go up to 6 in (150 mm). Grades F, H, P, and S fall in between.
What is the difference between ASTM A517 and ASTM A514 plates? +
A517 is for pressure vessels (ASME BPVC). A514 covers the same grades for structural use. They are not interchangeable.
What is the yield strength of ASTM A517 plates? +
Minimum yield is 100 ksi (690 MPa) up to 2.5 in thick and 90 ksi (620 MPa) above that.
What grades are available under ASTM A517 for plates? +
Grades like A, B, E, F, H, P, Q, and S are available for ASTM A517 plates.
What is the ASME equivalent of ASTM A517 plates? +
The ASME equivalent of ASTM A517 plate is SA-517.
What applications are ASTM A517 pressure vessel plates used for? +
ASTM A517 plates serve in fusion-welded boilers, pressure vessels, cryogenic tanks, and LNG tankers.
Where can I buy ASTM A517 plates, and what is the price range? +
You can buy ASTM A517 plates from Sachiya Steel International. We provide these flat products in a wide range of grades, lengths, and dimensions. The prices range from ₹90-₹110 per kg in India, and $1-$4 USD internationally, depending on grade, thickness, and quantity. Reach out to us for the latest prices.
