Specifications of Stainless Steel 316L Pipe

The specifications of SS 316L pipe, including its size, diameter, standards, length and thickness, are listed in the table below:

Property Value
Size Range 1/8″ NB to 30″ NB (standard industrial range; larger diameters available on request)
Outer Diameter (OD) As per ASME B36.19M (for stainless steel pipes)
Wall Thickness / Schedule SCH 5S, 10S, 40S, 80S (ASME B36.19M) SCH 10, 20, 30, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS (for broader industry reference)
Type Seamless / Welded / ERW / EFW (Electric Fusion Welded)
Manufacturing Standards ASTM A312 / ASME SA312 (Seamless & Welded) ASTM A358 / ASME SA358 (EFW pipes)
Form Round (standard); Square & Rectangular (typically under ASTM A554, not A312)
Length Single Random (5–7 m) Double Random (10–13 m) Cut Length (as per requirement)
End Finish Plain End (PE) / Bevelled End (BE) / Threaded (generally for smaller sizes)
Surface Finish Annealed & Pickled (AP), Bright Annealed (BA), Polished (if required)
Testing & Inspection Hydrostatic Test, Eddy Current Test, PMI, IGC Test (for corrosion resistance validation)
Applicable Codes ASTM, ASME, ANSI, API (depending on application)

Stainless Steel 316L Pipe Sizes and Dimensions

Stainless Steel 316L pipes are available in the sizes and lengths mentioned in the table given below:

Property Value
Size Range 1/8" to 24" NPS
Schedules 5S, 10S, 40, 80, 160
Standard Length 20-foot random length
Custom Lengths Available on request

Pipe Schedule and Dimensions Chart

OD, wall thickness, and weight for common 316L pipe sizes per ASME B36.19M are mentioned in the table given below:

NPS OD (in) Sch 5S Wall (in) Sch 10S Wall (in) Sch 40 Wall (in) Sch 80 Wall (in) Weight Sch 40 (lb/ft)
1/2 0.840 0.065 0.083 0.109 0.147 0.85
1 1.315 0.065 0.109 0.133 0.179 1.68
2 2.375 0.065 0.109 0.154 0.218 3.65
4 4.500 0.083 0.120 0.237 0.337 10.79
6 6.625 0.109 0.134 0.280 0.432 18.97
8 8.625 0.109 0.148 0.322 0.500 28.55
12 12.750 0.156 0.180 0.375 0.500 49.56

Pipe Weight Per Meter

Metric weight for commonly ordered 316L pipe sizes in Schedule 40 is listed in the table given below:

NPS OD (mm) Weight (kg/m)
1/2" 21.3 1.27
1" 33.4 2.50
2" 60.3 5.44
4" 114.3 16.07
6" 168.3 28.26

Stainless Steel 316L Pipe Price

316L stainless steel pipe pricing depends on size, schedule, wall thickness, form (seamless vs welded), quantity, and raw material costs. Indian market pricing starts from approximately INR 430/kg for standard welded sizes. Common welded sizes range from $3 to $15 per foot (NPS 1/2" to 4", Sch 10S to 40). Larger diameters and seamless pipe cost more. Request a quote for the current 316L stainless steel pipe pricing. Volume discounts apply for bulk orders.

Chemical Composition of Stainless Steel 316L Pipe

The chemical composition of SS 316L pipe, along with its elemental composition, is listed in the table given below:

Element Composition Scale Specification
Carbon C
Max 0.030%
Manganese Mn
Max 2.00%
Phosphorus P
Max 0.045%
Sulfur S
Max 0.030%
Silicon Si
Max 1.00%
Chromium Cr
16.0 - 18.0%
Nickel Ni
10.0 - 14.0%
Molybdenum Mo
2.00 - 3.00%
Nitrogen N
Max 0.10%

The low carbon limit (0.030% max) defines the "L" in 316L. It reduces intergranular corrosion risk in welded joints, a critical factor for piping in aggressive chemical or marine service.

Mechanical Properties of 316L Stainless Steel Pipe

SS 316L pipe handles pressure-bearing applications reliably at these values. The 35% elongation means the material absorbs deformation without cracking under thermal cycling.

Mechanical values of SS 316L pipe as per ASME SA-312 and ASTM A312 are listed in the table given below:

485 / 70
MPa (min)
Tensile Strength
170 / 25
MPa (min)
Yield Strength
35%
(min)
Elongation
100
HRB (max)
Hardness
Property Value Unit
Tensile Strength (min) 485 / 70 MPa / ksi
Yield Strength (min) 170 / 25 MPa / ksi
Elongation (min) 35 %
Request a Quote for 316L Stainless Steel Pipe Request a Quote

Equivalent Grades for Stainless Steel 316L Pipe

International designation equivalent to SS 316L pipe, like UNS no. S31603 are listed in the table given below:

Property Value
Type 316L
UNS S31603
JIS SUS316L
EN/DIN X2CrNiMo17-12-2
EN/NF Z2CND17-12
GB 022Cr17Ni12Mo2
GOST 03Kh17N14M2

Stainless Steel 316L Pipe Forms

316L stainless steel pipe is manufactured in 3 primary forms. Each suits a different operating condition and budget:

SS 316L Seamless Pipe

Seamless 316L Stainless Steel Pipe

SS 316L Welded Pipe

Welded 316L Stainless Steel Pipe

SS 316L ERW Pipe

ERW 316L Stainless Steel Pipe

Stainless Steel 316L Pipe Applications

SS 316L pipe serves 4 major industrial sectors where corrosion resistance and material purity matter most:

Chemical and Petrochemical Processing

Transfer lines for acidic, chloride-rich media needing post‑weld corrosion resistance.

Marine and Offshore

Saltwater cooling, ballast, and seawater service lines on offshore and shipboard systems.

Food, Beverage and Pharmaceutical

Used in clean product transfer piping with CIP support for dairy, brewing, and pharmaceutical plants.

Water Treatment

Chlorinated water, desalination brine, and chemical dosing lines in treatment facilities.

316L vs 316 Stainless Steel Pipe

The main difference between 316L and 316 Stainless Steel pipe is the carbon content. The table given below specifies the differences in detail:

Parameter 316 Stainless Steel 316L Stainless Steel
Carbon Content Max 0.08% Max 0.030%
Welding Suitability Prone to sensitisation Excellent for welding
Carbide Precipitation Risk Higher Minimal
Corrosion Resistance (HAZ) Can be affected Improved resistance
Typical Application Non-welded applications Welded piping in corrosive service
Certification Availability Often dual-certified with 316L Often dual-certified with 316

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect 316L pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export

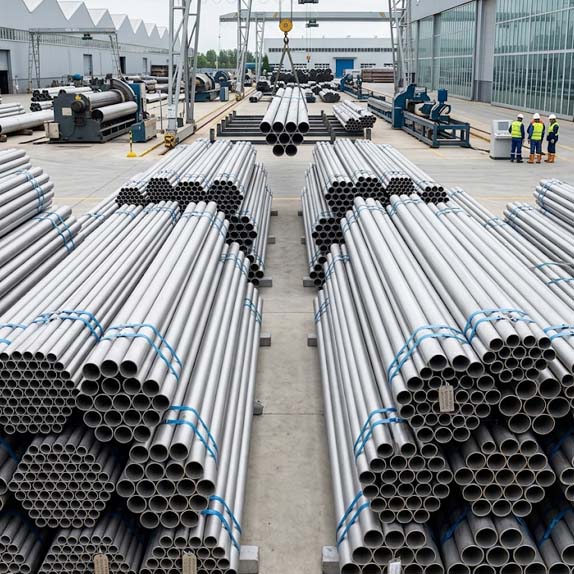

shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is the difference between 316 and 316L stainless steel pipe? +
316L pipe has a carbon limit of 0.030% max, while 316 allows up to 0.08%. Lower carbon prevents carbide precipitation during welding, making 316L the preferred grade for welded pipe in corrosive service.
What is the Cost of SS 316L pipe? +
Pricing varies by size, schedule, form, and quantity. Common welded sizes range from ₹280 to ₹595 per kg in India and $3 to $15 per foot internationally. Contact Sachiya Steel International for a current quote.
What is the Material of 316L Pipe? +
316L pipe is an austenitic stainless steel with 16.0 to 18.0% chromium, 10.0 to 14.0% nickel, and 2.00 to 3.00% molybdenum. UNS designation is S31603; the European equivalent is W.Nr 1.4404.
What Sizes are Available for 316L Stainless Steel Pipe? +
Sizes range from 1/8" to 24" NPS in schedules 5S, 10S, 40, 80, and 160. Standard length is about 20 feet, and we can cut to custom lengths.
What is the Pressure Rating of 316L Stainless Steel Pipe? +
The pressure rating depends on the pipe size (NPS) and wall thickness (schedule), as defined by ASME B31.3. Base mechanical properties are 485 MPa tensile and 170 MPa yield per ASTM A312. Higher schedule numbers mean thicker walls and higher working pressures.
What ASTM Standard covers 316L Stainless Steel Pipe? +
ASTM A312 / ASME SA-312 covers seamless and welded austenitic stainless steel pipe. ASTM A358 applies to electric-fusion-welded pipe. ASTM A778 covers welded, unannealed tubular products.
Is 316L Pipe Suitable for Seawater and Marine Applications? +
The 2.00 to 3.00% molybdenum in 316L pipe helps it resist pitting and crevice corrosion in chloride-rich environments. Because of this, it is commonly used on offshore platforms, on ships, and in desalination plants.
Where can I buy 316L Stainless Steel Pipe? +
Sachiya Steel International stocks 316L stainless steel pipe in seamless and welded forms, sizes 1/8" to 24" NPS. We export globally with seaworthy packaging and full MTC 3.1 documentation. Contact us for availability.
