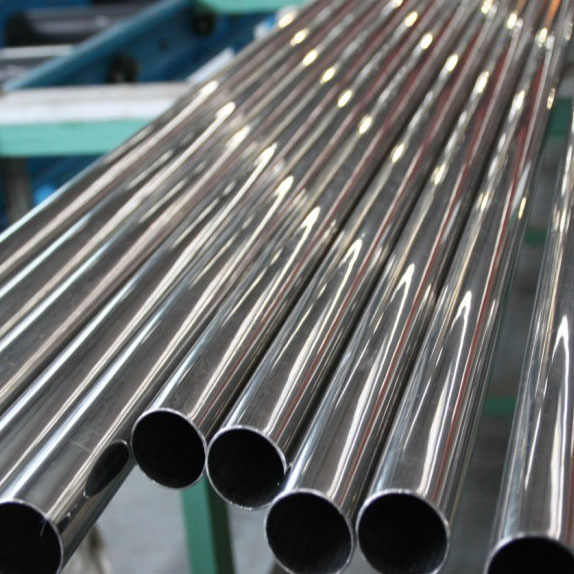

Inconel 600 Pipe Specifications

The specifications of Alloy 600 pipe, including standards, dimensions, forms, finishes, and more are covered in the table below.

Parameter Details
Standard Specification ASTM B167
Pipe Type Seamless / Welded
Manufacturing Process Cold Drawn (Seamless), ERW / EFW (Welded)
Size Range (Seamless) 1/8" NB to 24" NB
Size Range (Welded) 6" NB to 100" NB
Wall Thickness Sch 5, Sch 10, Sch 40, Sch 80, Sch 160, XXS
Length Single Random, Double Random, Cut Length
Form Round, Square, Rectangular, Hydraulic Pipes
End Type Plain End (PE), Bevelled End (BE), Threaded
Surface Finish Annealed & Pickled, Polished, Bright Annealed
Heat Treatment Solution Annealed

Inconel 600 Pipe Sizes

Inconel 600 pipe sizes are provided in the table below, along with the schedules.

NPS (in) OD (in) OD (mm) Available Schedules
1/8 0.405 10.29 Sch 40, 80
1/4 0.540 13.72 Sch 40, 80
1/2 0.840 21.34 Sch 5, 10, 40, 80, 160
3/4 1.050 26.67 Sch 5, 10, 40, 80, 160
1 1.315 33.40 Sch 5, 10, 40, 80, 160
2 2.375 60.33 Sch 5, 10, 40, 80, 160
3 3.500 88.90 Sch 5, 10, 40, 80, 160
4 4.500 114.30 Sch 5, 10, 40, 80, 120, 160
6 6.625 168.28 Sch 5, 10, 40, 80, 120, 160
8 8.625 219.08 Sch 5, 10, 40, 80, 120, 160
10-24 On request On request Available on request

Custom OD and wall thickness are available on request.

Inconel 600 Pipe Price

Prices of Inconel 600 pipe are approximately ₹2,000/kg. In international markets, prices range from US$10 to US$150 per kilogram depending on size, schedule, quantity, and finish. Final pricing varies with diameter, wall thickness, seamless vs welded specification, and nickel market conditions. Contact us for a quotation.

Inconel 600 Pipe Chemical Composition

The table below lists the full chemical composition of Inconel 600 pipe (UNS N06600) per ASTM B167 / ASME SB-167.

ElementComposition ScaleSpecification
NickelNi
72.0% min
ChromiumCr
14.0-17.0%
IronFe
6.0-10.0%
CarbonC
0.15% max
ManganeseMn
1.00% max
SiliconSi
0.50% max
CopperCu
0.50% max
SulfurS
0.015% max

Inconel 600 Pipe Mechanical Properties

Alloy 600 pipe in the solution annealed condition meets these minimum values per ASTM B167 / ASME SB-167.

80 ksi
550 MPa
Tensile Strength (min)
35 ksi
240 MPa
Yield Strength, 0.2% Offset (min)
30%
30%
Elongation (min)
Property Imperial Metric
Tensile Strength (min) 80 ksi 550 MPa
Yield Strength, 0.2% Offset (min) 35 ksi 240 MPa
Elongation (min) 30% 30%
Request a Quote for Inconel 600 Pipe Request a Quote

Inconel 600 Pipe Equivalent Designations

Inconel 600 pipe equivalent designations, like UNS, Werkstoff Nr., AFNOR, and more, are listed in the table below.

Designation Equivalent
UNS N06600
Werkstoff Nr. 2.4816
EN NiCr15Fe
AFNOR NC15FE11M
GOST MNZhMts 28-2,5-1,5

Inconel 600 Pipe Industrial Applications

Inconel 600 pipe is used in high-temperature and corrosive environments across 4 major industries. Operating range spans cryogenic to 2000°F (1093°C).

Chemical Processing

Alloy 600 pipe handles caustic soda, organic acids, and chloride-bearing solutions in chemical plants. Its resistance to chloride-ion stress-corrosion cracking makes it reliable for evaporators and heat exchangers.

Nuclear Power Generation

Nuclear plants rely on Inconel 600 pipe in steam generators for stability under high-temperature water and radiation. The alloy's caustic corrosion resistance makes it suitable in reactor primary circuits.

Heat Treatment & Furnace Equipment

Furnace muffles, retorts, and radiant tubes use this alloy for its oxidation resistance at sustained temperatures up to 2000°F (1093°C). The pipe holds structural integrity through repeated thermal cycling.

Aerospace & Gas Turbine

Alloy 600 pipe is specified for exhaust systems, combustion liners, and afterburner components, where oxidation resistance and mechanical stability at high temperatures are required.

Get Best Price on Inconel 600 Seamless & Welded Pipe Request a Quote

Inconel 600 Pipe vs Inconel 625 Pipe

These nickel-chromium alloys serve different roles. The table below compares key selection criteria.

Property Inconel 600 Pipe Inconel 625 Pipe
UNS Designation N06600 N06625
Nickel Content 72.0% min 58.0% min
Chromium 14.0-17.0% 20.0-23.0%
Molybdenum Not specified 8.0-10.0%
Tensile Strength (min) 550 MPa (80 ksi) 827 MPa (120 ksi)
Primary Use Furnace, nuclear, oxidation Marine, chemical, pitting resistance

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Inconel 600 Pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
Bundle Yard Staging Pipe Bundle Yard Staging
Bundle Edge Protection Container End-Cap Protection
Export-Ready Bundles Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is the standard specification for Inconel 600 Pipe?+
Inconel 600 seamless pipe is covered by ASTM B167 / ASME SB-167. Welded pipe falls under ASTM B517 / ASME SB-517.
What sizes are available for Inconel 600 Pipe?+
Inconel 600 pipe is available from 1/8" to 24" NPS in schedules 5 through XXS, with standard 6m (20 ft) lengths.
What is the price of Inconel 600 Pipe per kg?+
The price is approximately ₹2,000/kg in India. In international markets, the price ranges from US$10 to US$150 per kilogram depending on size, schedule, and quantity. Request a quote for current rates.
What is Inconel 600 Pipe used for?+
Inconel 600 pipe is used in chemical processing, nuclear steam generators, furnace equipment, and aerospace exhaust systems requiring high-temperature oxidation and corrosion resistance.
Can Inconel 600 Pipe be welded?+
Inconel 600 pipe is readily weldable using GTAW (TIG), GMAW (MIG), and SMAW processes with filler metals such as ENiCrFe-3 or ERNiCr-3.
What is the difference between Inconel 600 Seamless and Welded Pipe?+
Seamless Inconel 600 pipe (ASTM B167) has no weld seam, providing uniform strength for high-pressure applications. Welded pipe (ASTM B517) offers cost advantages for lower-pressure service.
What temperature can Inconel 600 Pipe withstand?+
Inconel 600 pipe is rated for continuous service from cryogenic temperatures up to 2000°F (1093°C) with good oxidation resistance throughout.
What schedule options are available for Inconel 600 Pipe?+
Inconel 600 pipe is commonly stocked in Schedule 40 and Schedule 80. Schedules 5, 10, 20, 120, 160, and XXS are available on request.
