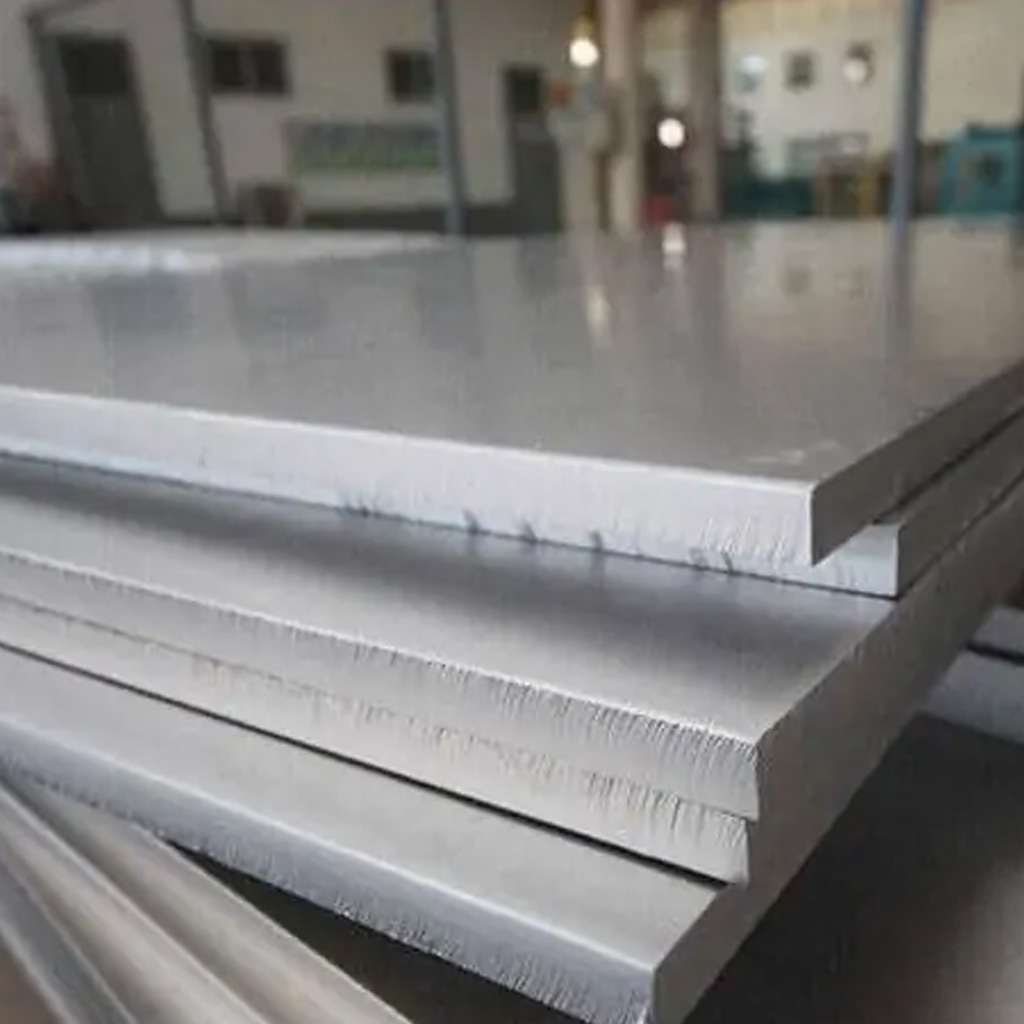

Hastelloy C276 Plate Specifications

The table below lists key specifications including standards, condition, forms and other required information for Hastelloy C276 nickel alloy plates

Property Details
Standard ASTM B575 / ASME SB-575
Thickness 3/16 inch (4.8 mm) to 3 inch (76.2 mm)
Width Up to 2000 mm (80 inches)
Length Up to 6000 mm (240 inches)
Condition Solution Annealed
Form Plate, Sheet, Strip

Hastelloy C276 Plate Sizes and Thicknesses

The sizes of Hastelloy C276 (UNS N10276) plates that are available and the guidelines for stocking them are shown in the table below.

Parameter Specification / Range
Thickness 3/16" to 3" (4.8 mm to 76.2 mm)
Width Up to 2,000 mm (78.7")
Length Up to 6,000 mm (236.2")

Density and Weight Calculation

Using the formula Weight = Thickness × Density, a 25.4 mm (1") plate with a density of 8.89 g/cm3 (8,890 kg/m3) weighs approximately 225.81 kg/m2. This calculation is vital for precise logistics, material handling, and project cost estimation.

Price of Hastelloy C276

Hastelloy C276 plates cost ₹3,500–₹5,500/kg in India and $45–$70/kg in the USA. Final pricing depends on order volume, plate thickness, market demand, and manufacturer certifications

Hastelloy C276 Plate Chemical Composition

The chemical composition of Hastelloy C276 plate (UNS N10276) according to ASTM B575 is shown below.

Hastelloy C276 (UNS N10276) features a high-nickel base reinforced with molybdenum, chromium, and tungsten. This precise chemistry ensures exceptional resistance to pitting and crevice corrosion in the most aggressive chemical environments.

Nickel Ni
Balance
Molybdenum Mo
15.0 – 17.0%
Chromium Cr
14.5 – 16.5%
Iron Fe
4.0 – 7.0%
Tungsten W
3.0 – 4.5%
Cobalt Co
Max 2.50%
Manganese Mn
Max 1.00%
Carbon C
Max 0.010%

Mechanical Properties of Hastelloy C276 Plates

Solution-annealed C276 plates meet the minimum mechanical characteristics set by ASTM B575. Please check the yield and critical strength numbers that are listed below.

We verify solution-annealed C276 plates reach 690 MPa minimum tensile strength and 40% elongation. These specs provide the structural integrity and ductility for high-pressure industrial vessels. It is the professional choice for maintaining your manufacturing facility’s critical safety.

690 (100)
MPa (ksi)
Tensile Strength
283 (41)
MPa (ksi)
Yield Strength
40%
(min)
Elongation
Property Value
Tensile Strength (min) 690 MPa (100 ksi)
Yield Strength, 0.2% Offset (min) 283 MPa (41 ksi)
Elongation in 2 in. (min) 40%
Get the Best Price - Contact Our Sales Team Request a Quote

Equivalent Table for Hastelloy C276 Plates

Refer to the following table for the international material equivalents and standardised designations for Hastelloy C276 (UNS N10276).

Standard Designation / Grade
UNS N10276
EN 10028-7 NiMo16Cr15W
AFNOR NW 0276
DIN 17744 NiMo16Cr15W
JIS G4902 NW 0276
BS 3072 NA 45
GOST ХН65МВ

Hastelloy C276 Plate Industrial Applications

Hastelloy C276 plates serve 4 key industries where severe corrosion demands a high-performance nickel alloy plate.

Chemical and Petrochemical Processing

Examples of applications for C276 plates include column internals, heat exchangers, and reactor vessels that are subjected to mixed acid streams. Additional applications include column internals.

Flue Gas Desulfurisation (FGD) Systems

FGD scrubber linings and ductwork use C276 plates to resist sulfuric acid, hydrochloric acid, and fluorides.

Oil and Gas Production

Sour gas service components use C276 plates to resist hydrogen sulfide (H2S) corrosion per NACE MR0175.

Pharmaceutical and Food Processing

Reactor vessels and mixing tanks use C276 plate for resistance to aggressive cleaning agents without contaminating high-purity products.

Hastelloy C276 Plates vs. Alternative Alloys

Compare the corrosion resistance and mechanical performance of Hastelloy C276 plates against other high-performance industrial alloys.

Property Hastelloy C276 Hastelloy C22 Inconel 625
Mo Content 15.0-17.0% 12.5-14.5% 8.0-10.0%
Cr Content 14.5-16.5% 20.0-22.5% 20.0-23.0%
Reducing Acid Resistance Superior Good Moderate
Oxidising Acid Resistance Good Superior Good
Chloride SCC Resistance Excellent Excellent Good

Corrosion Resistance of of Hastelloy C276 Plates

Alloy C-276 plate resists corrosion in both oxidising and reducing environments, due to its high molybdenum (15.0-17.0%) and chromium (14.5-16.5%) content.

Resistance to Acids

Hastelloy C276 plates withstand hydrochloric acid up to 20% at room temperature, sulfuric acid across a broad range, and phosphoric acid.

Resistance to Pitting and Crevice Corrosion

C276’s 3.0 to 4.5% tungsten content actively resists localised attacks from chloride contamination, seawater, and wet chlorine gas. This specialised alloy ensures your infrastructure survives in the most aggressive and volatile chemical situations.

Resistance to Stress Corrosion Cracking

Nickel alloy C-276 plate resists chloride-induced stress corrosion cracking in sour gas and chloride-bearing process streams.

Shipping & Packaging for Hastelloy C276 Plate

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect hastelloy plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Edge and corner protection with plastic padding
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Plate Bundle Yard Staging
Shipping packaging Plate Bundle Edge Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies hastelloy products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is the standard specification for Hastelloy C276 Plates? +
Our Hastelloy C276 plates are made to meet the specifications set by ASTM B575 and ASME SB-575. These standards pertain to low-carbon nickel-chromium-molybdenum alloy plate, sheet, and strip designed for demanding industrial environments with elevated temperatures.
What is the price of Hastelloy C276 Plate per kg? +
Hastelloy C276 plates cost ₹3,500–₹5,500/kg in India and $45–$70/kg in the USA. Final pricing depends on order volume, plate thickness, market demand, and manufacturer certifications
What thicknesses are available for Hastelloy C276 Plates? +
Hastelloy C276 plates are available from 3/16 inch (4.8 mm) through 3 inch (76.2 mm). Custom thicknesses can be arranged on request.
What are the main applications of Hastelloy C276 Plates? +
Hastelloy C276 plates power chemical processing, FGD system linings, and oil and gas sour service. They also reinforce pharmaceutical reactors and critical pollution control systems.
What is the difference between 254 SMO Plates and SS 316 Plates? +
Can Hastelloy C276 Plates be welded? +
Weld C276 plates using GTAW or SMAW with ERNiCrMo-4 filler metal. Because the carbon content is 0.010% max, you can use them as-welded. No post-weld heat treatment is necessary for your installation.
What is the equivalent material for Hastelloy C276 Plates in India? +
European W.Nr 2.4819, DIN NiMo16Cr15W, and Chinese GB NS334 all match the high-performance Hastelloy C276 (UNS N10276) specification perfectly.
Is Hastelloy C276 Plate expensive compared to stainless steel? +
The large amounts of nickel, molybdenum, and tungsten in C276 plates do make them more expensive. The better corrosion resistance means a longer service life, which more than makes up for the cheaper initial cost.
What are the Mechanical Properties of Hastelloy C276 Plate? +
Per ASTM B575: tensile strength 690 MPa (100 ksi), yield strength 283 MPa (41 ksi), elongation 40%.
