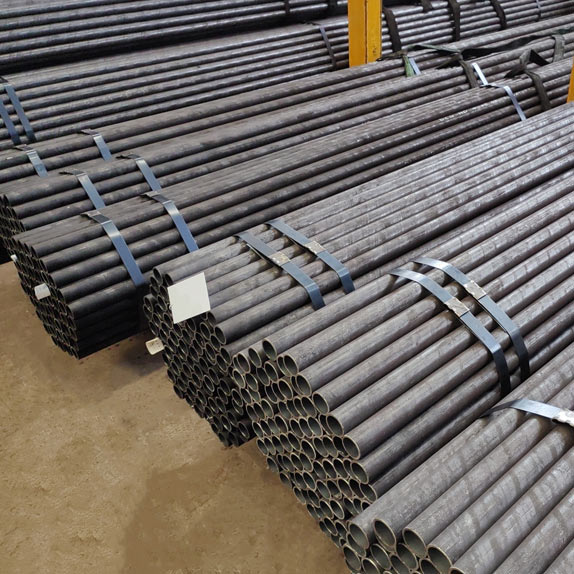

Carbon Steel Boiler Tubes Manufacturer and Supplier

Carbon steel boiler tubes are industrial conduits composed of iron and carbon, containing up to 1.2% manganese and 0.4% silicon. These critical components uphold international standards like ASTM A192, A210, and A178, securing the safety and performance required for intense thermal power applications.

ASTM A192 tubes feature a composition of 0.06 to 0.18% Carbon, providing a tensile strength of 325 MPa and 180 MPa yield. Carbon steel is the most popular choice worldwide for keeping high-temperature boiler pressure systems efficient because it conducts heat well and performs reliably at temperatures up to 1000°F (538°C).

Sachiya Steel International is a trusted carbon steel boiler tubes manufacturer, supplier, stockist, and exporter based in Mumbai, India. We hold ISO 9001, 14001 and 45001 certifications. With an experience of more than 20 years and a ready inventory of 1,500 to 2,000 metric tons covering seamless and ERW boiler tubing. IBR-approved tubes ship with mill test certificates.

We supply carbon steel boiler tubes globally, offering diameters from 10mm to 200mm and walls up to 20mm. Our 12-meter lengths support industrial steam systems and heat exchangers everywhere.

This page covers:

Specification
Price
Applicable Standards
Grades
Types
Applications
FAQs

Specifications for Carbon Steel Boiler Tubes

The following technical data covers Carbon Steel Boiler Tube material specifications and mechanical requirements, including ASTM standards for high-pressure thermal applications.

Property	Specification / Details
Common Standards	ASTM A192 / ASME SA192, ASTM A210
Manufacturing Type	Seamless (SMLS) and ERW (Electric Resistance Welded)
Size Range (OD)	1/2" to 7" (10 mm to 200 mm)
Wall Thickness	0.8 mm to 20 mm (Standard and Minimum Wall)
Standard Lengths	5.8m, 6m, 11.8m, 12m, or Custom Cut Lengths
Surface Treatment	Oiled, Black Paint, or Varnish to prevent corrosion

Carbon Steel Boiler Tube Sizes

The boiler tube size chart below shows standard carbon steel tube dimensions we stock.

Parameter	Range
OD	10 mm to 200 mm (3/8 in. to 8 in.)
Wall Thickness	1 mm to 20 mm (0.035 in. to 0.787 in.)
Length	Up to 12 metres (custom available)
Common ODs (A178)	1 in., 1.5 in., 2 in., 2.5 in., 3 in.

Applicable Standards for Carbon Steel Boiler Tubes

Carbon steel boiler tubes comply with ASTM A192, A210, A178 and ASME standards. BS 3059 equivalent ASTM and IBR boiler tube standards (IS 1914) also applies.

Standard	Title	Type
ASTM A192 / ASME SA-192	Seamless CS Boiler Tubes, High-Pressure	Seamless
ASTM A210 / ASME SA-210	Seamless Medium-Carbon Boiler/Superheater	Seamless
ASTM A178 / ASME SA-178	ERW Carbon Steel Boiler Tubes	ERW

Carbon Steel Boiler Tubes Price

In India, the price for standard carbon steel boiler tubes generally ranges from ₹70 to ₹115 per kg, while in the USA, similar industrial-grade carbon steel pipes typically range from $0.90 to $1.10 per kg. Contact us for pricing.

Types of Carbon Steel Boiler Tubes

Carbon steel boiler tubes come in 2 primary types: seamless (ASTM A192 / A210) and ERW (ASTM A178).

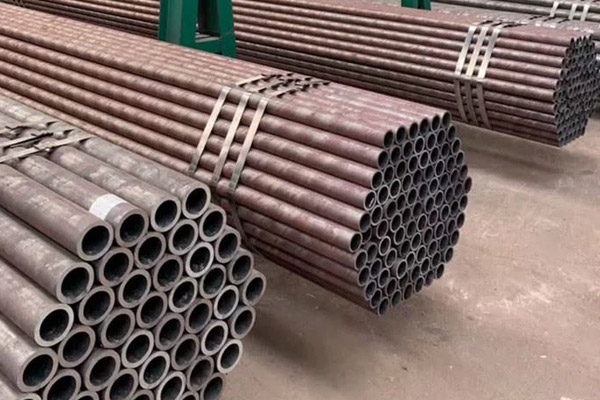

Seamless Carbon Steel Boiler Tubes

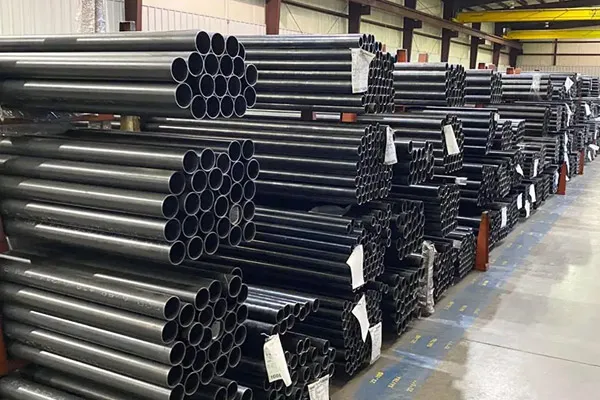

ERW (Electric Resistance Welded) Carbon Steel Boiler Tubes

ERW Carbon Steel Boiler Tubes

Get Best Price: Contact Our Sales Team Request a Quote

Carbon Steel Boiler Tube Industrial Applications

CS boiler tubes serve fire-tube boilers, water-tube boilers, superheaters, economisers, and heat exchangers in 3 key sectors.

Power Generation

Thermal power plants use carbon steel boiler tubes in water-wall panels and superheater systems for efficient heat transfer.

Oil and Gas and Petrochemical

Refineries and petrochemical plants rely on carbon steel boiler tubes in waste heat recovery boilers and process systems.

Industrial Steam Systems

Food processing, textile, and paper industries use boiler tubes for efficient saturated steam generation.

Carbon Steel Boiler Tube Grades

Boiler tube material grades include ASTM A192 (single grade), ASTM A210 (Grades A-1, C), and ASTM A178 (Grades A, C, D).

ASTM A192 / ASME SA-192 Grade A:

ASTM A192 (UNS K01200) is a seamless low-carbon steel specification for high-pressure boiler service. It operates up to 1000°F (538°C), though graphitization risk increases significantly when temperatures exceed 800°F (427°C).

ASTM A210 / ASME SA-210 Grades:

A210 covers seamless medium-carbon tubes where higher strength is required.

Grade A-1:

Offers superior tensile and yield strength compared to A192, making it ideal for high-performance superheater tube applications.

Grade C:

Provides maximum structural strength for critical, high-temperature superheater service in demanding industrial boiler environments.

ASTM A210 and ASTM A178 Grades

ASTM A178 specifies ERW boiler tubes across three distinct grades, categorised by their carbon content and mechanical performance.

Grade A:

Grade A is a low-carbon ERW tube designed specifically for fire tubes and boiler flues in low-pressure systems.

Grade C:

SA-178 Grade C delivers a robust 415 MPa tensile strength, supporting higher-pressure ERW service across various power plant components.

Grade D:

Grade D uses carbon-manganese alloying to achieve a high 485 MPa tensile strength for the most demanding pressure applications.

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect carbon steel boiler tubes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Pipe Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Carbon steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

Why is Carbon Steel used in Boiler Tubes?+

Carbon steel provides good thermal conductivity, strength up to 1000 o F (538 o C), and weldability at lower cost than alloy steel.

What type of tubing is used in Boiler Tubes?+

Boiler tubes are produced as seamless (ASTM A192, A210) or ERW (ASTM A178). Seamless is required for high-pressure sections.

What sizes are Carbon Steel Boiler Tubes available in?+

Available OD ranges from 10 mm to 200 mm, wall thickness from 1 mm to 20 mm, and lengths up to 12 metres.

What is the difference between ASTM A192 and ASTM A210?+

ASTM A192 covers low-carbon seamless boiler tubes. ASTM A210 provides higher-strength medium-carbon grades (A-1 and C) for more demanding conditions.

What is the price of Carbon Steel Boiler Tubes?+

Pricing is approximately Rs 95 to Rs 250 per kg in India. Contact us for a current quote.

Which material is used for Boiler Tubes?+

Carbon steel (ASTM A192, A210, A178) is the most common boiler tube material for low to medium temperature service.

What is the BS 3059 Equivalent in ASTM?+

BS 3059 Part 2 Grade 360 equals ASTM A192 / ASME SA-192. Grade 440 equals ASTM A210 Grade A-1. Part 1 ERW 320 equals ASTM A178 Grade A.

Are your Carbon Steel Boiler Tubes IBR approved?+

Yes, we supply tubes with IBR (Indian Boiler Regulation) approval and mill test certificates.
