What are Buttweld Fittings?

Buttweld fittings are wrought pipe fittings that are welded directly to the end of a pipe to change its direction, branch it, reduce its size, or close it off. The fitting and the pipe are bevelled, aligned end to end, and joined with a full-penetration weld. This gives a strong, leak-tight joint with smooth internal flow, which is why buttweld connections are preferred on larger-bore and higher-pressure lines. The fittings are made from pipe, plate, or forgings, then shaped by hot or cold forming and heat treated. Dimensions follow ASME B16.9, while the metal itself is supplied to an ASTM or MSS material specification.

Butt Weld Fittings Specifications

The specifications of Buttweld Fittings, including size range, schedules, bend radii, and weld ends, are listed in the table given below.

Parameter Details
Size Range NPS 1/2 inch to 48 inches; larger welded and fabricated sizes on request
Schedules Sch 5S, 10S, 40S, 80S, STD, XS, 160, and XXS
Bend Radii 1D, 2D, 3D, 5D, 6D, 8D, 10D, or custom
Manufacturing Type Seamless, welded, and fabricated; welded fittings can be supplied with 100% radiographic examination when specified
Weld Ends Bevelled to ASME B16.25 for site welding

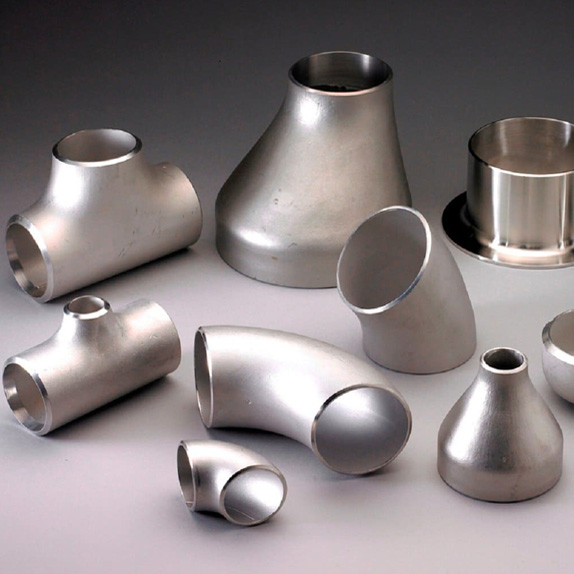

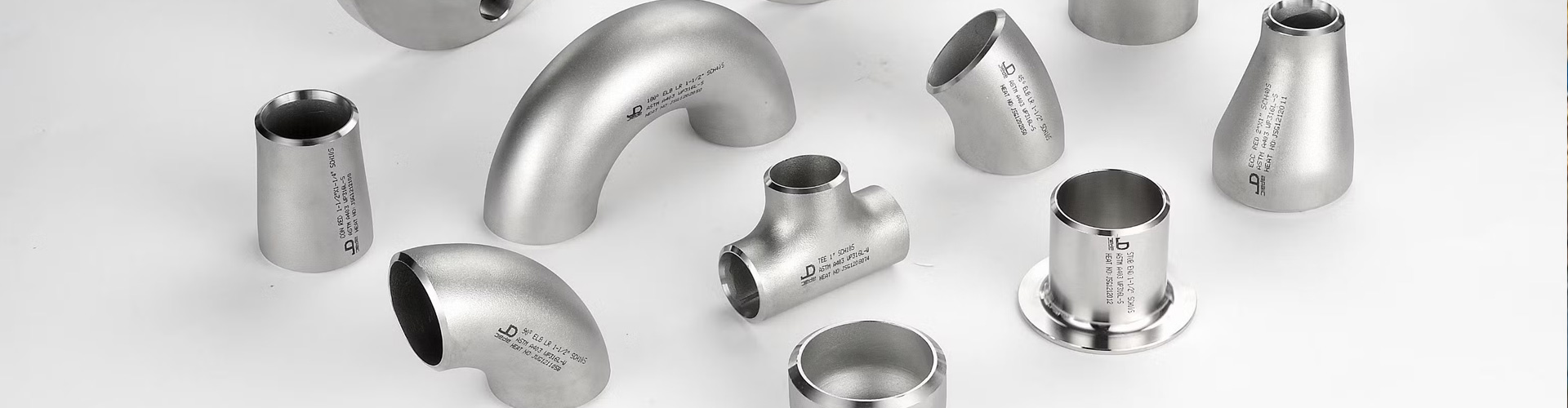

Types of Buttweld Fittings We Manufacture

We manufacture the full range of standard buttweld pipe fittings to ASME B16.9 specifications for industrial piping systems.

  • Elbows: 45°, 90°, and 180° return bends, in long radius and short radius.
  • Tees: equal tees and reducing tees for branch connections.
  • Reducers: concentric and eccentric, for changes in line size.
  • Caps: for sealing the end of a run.
  • Crosses: equal and reducing, for four-way junctions.
  • Stub ends: used with lap joint flanges.
  • Pipe bends: 3D, 5D, 10D, and piggable bends in custom radii.

Pipe Fittings Materials and Grades

We produce buttweld fittings across a wide range of material families, each tied to its own ASTM or MSS material standard.

Material Family Material Standard Common Grades
Carbon Steel ASTM A234 WPB, WPC
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91
Low-Temperature Carbon Steel ASTM A420 WPL3, WPL6
Stainless Steel ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WP310, WP904L
Duplex & Super Duplex ASTM A815 WP S31803/2205, S32750/2507, S32760
High-Yield (Line Pipe) MSS SP-75 WPHY 42 to WPHY 70
Nickel Alloys ASTM B366 Inconel (600, 625, 718), Hastelloy (C22, C276), Monel (400), Incoloy (800, 825)
Request a Quote for Buttweld FittingsRequest a Quote

Standards We Comply With

Our buttweld fittings are manufactured and certified to the dimensional and material standards listed below.

Standard Scope
ASME B16.9 Factory-made wrought buttwelding fittings, NPS 1/2 to 48: dimensions, tolerances, testing, marking
ASME B16.28 Wrought steel short-radius elbows and return bends
ASME B16.25 Buttwelding end (weld bevel) preparation
MSS SP-43 Lightweight stainless steel buttwelding fittings (Sch 5S and 10S)
MSS SP-75 High-test wrought buttwelding fittings for line pipe (WPHY grades)
ASTM A234 / A403 / A420 / A815 Material specifications: carbon and alloy, austenitic stainless, low-temperature, duplex
ASTM B366 Wrought nickel and nickel-alloy buttweld fittings

Industrial Applications of Buttweld Fittings

Buttweld fittings are used wherever piping must carry fluids at high pressure or high temperature through a permanent, leak-tight joint. The grade is matched to the medium and the duty, so the same fitting type is supplied in carbon steel for one line and in stainless or alloy steel for another. We supply buttweld fittings into the following sectors:

Oil and Gas

Transmission pipelines, refineries, and offshore platforms, where carbon steel (A234 WPB) and high-yield (MSS SP-75 WPHY) grades carry hydrocarbons under pressure.

Petrochemical and Chemical Processing

Reactor and transfer lines, where stainless (A403) and duplex (A815) fittings resist corrosive and chloride-bearing media.

Power Generation

Boiler feed, steam, and superheater lines in thermal and nuclear plants, where chrome-moly alloy grades (A234 WP11, WP22, WP91) handle high-temperature service.

Water and Wastewater

Treatment plants and distribution headers, where carbon and stainless fittings join large-bore mains.

Fertiliser and Process Plants

Ammonia, urea, and acid lines that call for corrosion-resistant stainless and nickel-alloy fittings.

Shipbuilding and Marine

Deck and engine-room piping that must withstand a saline environment.

Testing, Inspection and Documentation

Every batch is tested and supplied with full traceability. Standard documentation includes:

  • Radiographic (X-ray) examination of welded fittings and hydrostatic testing where required
  • Positive Material Identification (PMI) and chemical spectro analysis
  • Tensile, hardness, and intergranular corrosion (IGC) testing where specified
  • Mill test certificates to EN 10204 3.1 and 3.2
  • NACE MR0175 compliance for sour service, and third-party or NABL-approved laboratory reports on request

Buy Buttweld Fittings From Sachiya Steel International

As established buttweld fittings manufacturers in India, we hold common sizes ex-stock and fabricate custom and large-bore fittings to order, with full certification on every dispatch. Send us your size, grade, schedule, and quantity, and our technical team will reply with a quotation and current pricing.

Shipping & Packaging

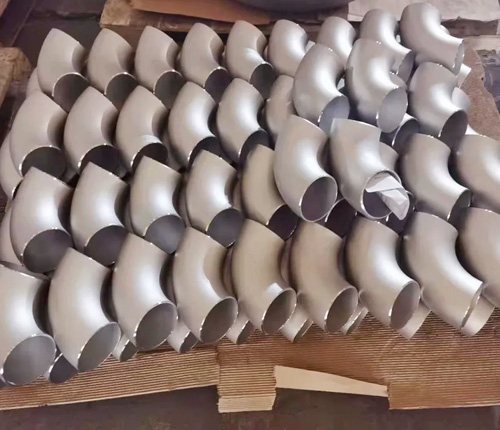

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Buttweld Fittings from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on weld ends
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export

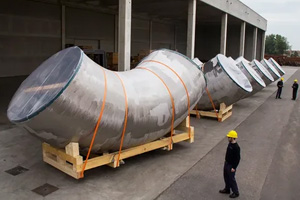

shipping preparation Fitting Bundle Yard Staging

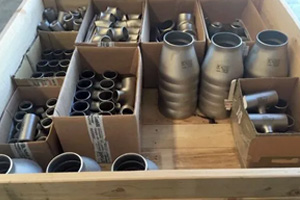

Shipping packaging Container End-Cap Protection

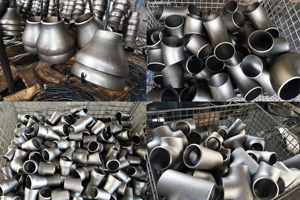

Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies buttweld fittings to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What are buttweld fittings?+
Buttweld fittings are wrought fittings welded end to end onto a pipe to change direction, branch, reduce, or cap a line. They give a strong, leak-tight joint with smooth internal flow.
What is the size range of buttweld fittings?+
Standard buttweld fittings are made from NPS 1/2 inch to 48 inches under ASME B16.9. Larger welded and fabricated fittings are produced to order.
Which standards apply to buttweld fittings?+
Dimensions follow ASME B16.9 (with B16.28 for short-radius elbows). The material follows an ASTM or MSS specification: A234 for carbon and alloy steel, A403 for stainless, A420 for low temperature, A815 for duplex, and MSS SP-75 for high-yield line-pipe grades.
What is the difference between buttweld and socket weld fittings?+
Buttweld fittings are welded end to end to ASME B16.9 and suit larger bores and higher pressures. Socket weld fittings are forged to ASME B16.11 and used on smaller pipe, where the pipe slots into a socket and is fillet welded.
Are buttweld fittings seamless or welded?+
They are made both ways. We supply seamless, welded, and fabricated buttweld fittings; welded fittings can be supplied with 100% radiographic examination when specified by the project requirements.
