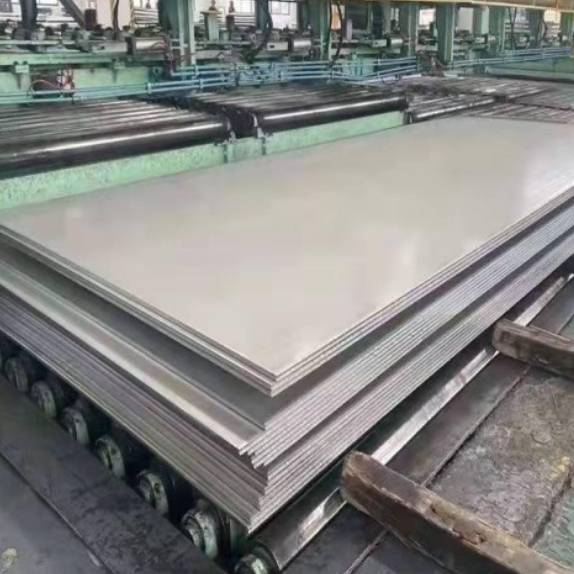

Specifications of Duplex 2205 Plate

The specifications of Duplex 2205 plate, including standards, length and form, are listed in the table below.

Property Value
Standards ASTM A240 / ASME SA240
Thickness Range 3 mm to 150 mm
Width Range Up to 2500 mm
Length Range Up to 12000 mm
Form Plates
Finish Types Hot Rolled (HR), Cold Rolled (CR), Pickled
Surface Condition Annealed, Pickled, Shot Blasted
Plate Thickness 4.5 mm to 100 mm
Sheet Thickness 0.02 mm to 4.0 mm
Standard Plate Dimensions Width: 900 mm to 2400 mm; Length: 3000 mm to 12000 mm

Duplex 2205 Plate Sizes and Dimensions

The sizes and dimensions of Duplex 2205 are listed in the table given below.

Property Value
Plate Thickness 4.5 mm to 100 mm
Sheet Thickness 0.02 mm to 4.0 mm
Width Range 900 mm to 2400 mm
Length Range 3000 mm to 12000 mm

Duplex 2205 Plate Thickness Range

The thickness range of Duplex 2205 plates is listed in the table given below.

Parameter Specification
Minimum Plate Thickness 4.5 mm
Maximum Plate Thickness 100 mm
Sheet Thickness Range 0.02 mm to 4.0 mm
Common Plate Range 6 mm to 50 mm (most frequently ordered)
Heavy Sections Above 50 mm, typically used for offshore and heavy-duty components

Standard Plate Dimensions (Width x Length)

The standard plate dimensions of Duplex 2205 plates are listed in the table mentioned below.

Category Specification
Plate/Sheet Width 900 mm to 2400 mm
Plate/Sheet Length 3000 mm to 12000 mm
Coil Width 610 mm to 2000 mm
Strip Width 4 mm to 3000 mm
Custom Sizes Available as per specific project requirements

Surface Finishes

SAF 2205 plate is supplied in the finishes mentioned below.

  • 2B surface finish
  • BA (bright annealed) surface finish
  • No.4 (brushed) surface finish
  • Mirror surface finish
  • Sandblasted surface finish

Duplex 2205 Plate Price

Duplex 2205 plate price is approximately ₹300 to ₹450 per kg in India and $3.50 to $11.00 USD per kg, depending on thickness, quantity, and finish. NACE-compliant plates cost more.

Mirror and BA finishes add to the price. For current pricing on 2205 stainless steel plates, request a quote.

Chemical Composition of Duplex 2205 Plate

The chemical composition of Duplex 2205 plate is shown in the table given below, along with its proportion.

Carbon C
0.030 max
Manganese Mn
2.00 max
Phosphorus P
0.030 max
Sulfur S
0.020 max
Silicon Si
1.00 max
Chromium Cr
22.0–23.0
Nickel Ni
4.5–6.5
Molybdenum Mo
3.0–3.5
Nitrogen N
0.14–0.20

Mechanical Properties of Duplex 2205 Plate

The mechanical properties of Duplex 2205 plate are listed below, along with tensile strength and elongation.

620 / 90
MPa (min)
Tensile Strength
450 / 65
MPa (min)
Yield Strength
25%
(min)
Elongation
Property Value
Tensile Strength (min) 620 MPa (90 ksi)
Yield Strength (min) 450 MPa (65 ksi)
Elongation (min) 25%
Get Best Price on ASTM A240 Type 2205 Plate Request a Quote

Equivalent Designations of Duplex 2205 Plates

International designations equivalent to Duplex 2205 plates, including UNS and ASTM, are listed in the table below.

Standard Designation
UNS S32205 / S31803
ASTM ASTM A240 Grade 2205
ASME SA 240 Grade 2205
EN (X2CrNiMoN22-5-3)
DIN 1.4462
ISO 15156
AFNOR Z2CND22-05Az
JIS SUS 329J3L

Duplex 2205 Plate Applications by Industry

3 sectors account for most Duplex 2205 plate orders:

Oil & Gas Industry

Alloy 2205 plates are commonly chosen for constructing offshore platform topsides and subsea manifolds due to their superior corrosion resistance.

Chemical Processing

This grade is commonly selected for fabricating pressure vessels and for manufacturing tubesheets in heat exchangers across process industries.

Marine & Desalination

DSS 2205 plates provide reliable performance in marine structures exposed to seawater and in structural frames for desalination reverse osmosis systems.

Duplex 2205 Plate vs 316 Stainless Steel Plate

For buyers comparing 2205 duplex stainless steel plate against 316L, the key factors are strength and chloride resistance. The table below explains in detail.

Parameter Duplex 2205 316L SS
Yield Strength (min) 450 MPa (65 ksi) 205 MPa (30 ksi)
Tensile Strength (min) 620 MPa (90 ksi) 485 MPa (70 ksi)
PREN (typical) ~35 ~25
Chloride SCC Resistance Up to 150 degrees C Limited above 60 degrees C
Relative Cost Higher per kg Lower per kg

Thinner Duplex 2205 sections can replace heavier 316L sections, lowering material weight and total project cost.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect duplex 2205 plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Edge and corner protection with plastic padding
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Plate Bundle Yard Staging
Shipping packaging Plate Bundle Edge Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies duplex steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

How thick is a 2205 Duplex Plate? +
Duplex 2205 plate comes in thicknesses from 3 mm to 150 mm per ASTM A240.
What is the difference between Duplex 2205 Plate and 316 SS Plate? +
The primary difference is strength. Duplex 2205 plate has a minimum yield of 450 MPa, compared to 205 MPa for 316L. Chloride stress corrosion cracking resistance is also far superior. It is reliable up to 150 °C versus roughly 60 °C for 316L.
What is the price of Duplex 2205 plate per kg? +
Prices range from ₹300 to ₹450 per kg in India and $8 to $15 in USD. Thickness, finish, and quantity are factors that affect the final rate.
Can Duplex 2205 Plate be welded? +
Yes. Use filler metal 2209 and keep interpass temperature below 150 °C. Avoid autogenous welding to prevent excessive ferrite.
What sizes of Duplex 2205 Plate are available? +
Duplex 2205 plate is available in thickness ranging from 3mm to 150 mm, width upto 2500 mm and length upto 12000 mm. Custom dimensions are available on request.
Is Duplex 2205 Plate suitable for marine applications? +
Yes. PREN of approximately 35 provides strong pitting resistance in seawater. Common uses include desalination plants, offshore platforms, and cargo tank linings.
What is the chloride resistance of Duplex 2205 Plate? +
The plate resists chloride stress corrosion cracking up to approximately 150 °C (302 °F). PREN of ~35 exceeds 316L's ~25. Service above 300 °C (572 °F) isn't recommended because of sigma phase embrittlement.
