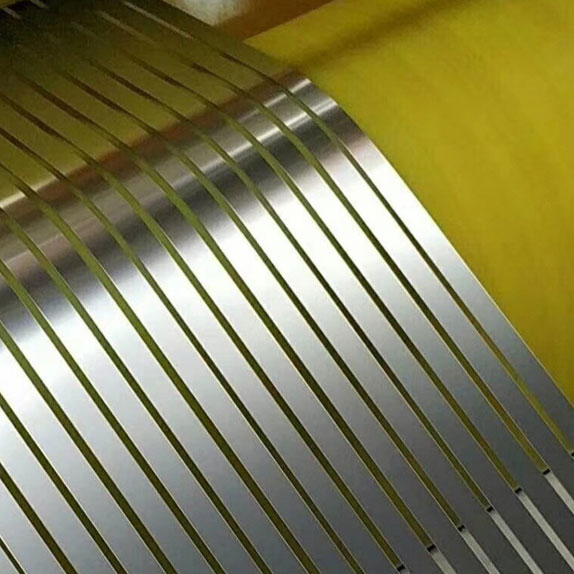

Specifications for Stainless Steel Precision Strips

The specifications of Stainless Steel Precision Strips are listed below, including size, length and surface finish.

Parameter Specification
Material Grades 304, 316, 430
Standards ASTM A240 / ASTM A666
Thickness Range 0.02 mm to 3.0 mm
Width Range 3 mm to 600 mm
Form Coils, Precision Strips
Finish Types 2B, BA, No.4, Hairline (HL), Mirror Finish
Edge Type Slit Edge, Deburred Edge, Round (Coined) Edge

Sizes & Dimensions

Stainless steel precision strips are available in the following size ranges, with custom slitting to exact widths.

Parameter Range
Thickness 0.05 mm - 4.0 mm (0.002" - 0.157")
Width 3 mm - 650 mm (0.118" - 25.59")
Form Continuous coil, cut-to-length, oscillate-wound
Coil ID Per customer requirement

Surface Finishes & Edge Conditions

The surface finishes and edge conditions of SS precision strips are listed in the table below.

Parameter Details
Finish Types 2B, BA (Bright Annealed), No. 4, HL (Hairline), Mirror Finish
Edge Options Slit Edge, Deburred Edge, Round (Coined) Edge
Round Edge Benefit Improves spring fatigue life by reducing stress concentration during repeated cycling

Stainless Steel Precision Strip Price

Stainless steel precision strip pricing in India is ₹150 to ₹300 per kg and $1.50 to $7.00+ per kg USD. It depends on several factors, such as grade, temper condition, thickness, width, surface finish, edge type, order quantity, and current nickel/chromium surcharges. Thinner gauges and tighter tolerances have a higher per-kilogram cost. Spring-temper grades (1/2H and higher) cost more than annealed material because they require extra cold rolling steps. Reach out to our team with your exact requirements so we can provide the most accurate quote for your grade and order quantity.

Request a Quote for Precision Strips in Your Required Temper & Grade Request a Quote

Industrial Applications of Stainless Steel Precision Strips for Springs & Clamps

Stainless steel precision strips are mainly used in four key industries that make springs, clips, clamps, and other formed parts.

Automotive & Transportation

Hose clamps, retaining clips, fuel injector components, and ABS sensor sleeves are produced from precision strip in grade 304.

Electronics & Electrical

Contact springs, shielding enclosures, battery connectors, and RF connectors rely on precision strip for consistent electrical conductivity and spring return.

Medical Technology

316 precision strip is used in medical devices for parts like surgical springs, cannulas, and other spring mechanisms.

Industrial Clamping & Fastening

In industrial clamping and fastening, cold-rolled stainless steel strip is used to make hose clamps, bands, pipe fasteners, and strapping.

Stainless Steel Spring Strip Grade Details

Grade 304 - General-Purpose Clamp & Spring Strip

This grade balances corrosion resistance with moderate spring properties. With 18.0-20.0% Cr and 8.0-11.0% Ni, Grade 304 precision strip is widely used for hose clamps, brackets, and clips.

Grade 316 - Corrosion-Resistant Precision Strip

Grade 316 has 2.00-3.00% molybdenum, which provides superior resistance to chloride-induced pitting and crevice corrosion. Marine hardware, chemical processing clamps, and food-industry springs rely on this grade.

Grade 430 - Ferritic Magnetic Strip

Grade 430 is a chromium-only ferritic steel that costs less than nickel-bearing austenitic grades. It is magnetic, which suits applications requiring a magnetic response.

Shipping & Packaging

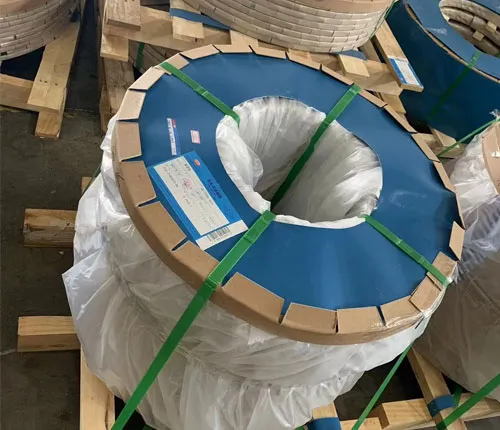

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect stainless steel precision strips from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end sheets
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export

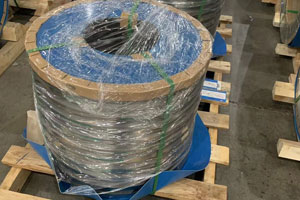

shipping preparation Strip Bundle Yard Staging

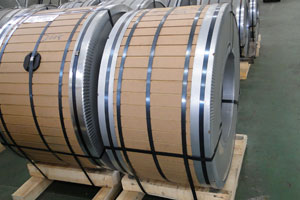

Shipping packaging Container End-Cap Protection

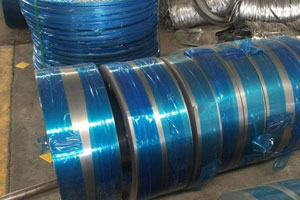

Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What grade of stainless steel is best for spring strips?+
Grade 301 is the most commonly used stainless steel for spring strips because it hardens very well when it is worked or formed. It reaches 1,275 MPa tensile strength in full hard temper. For corrosion-resistant applications, Grade 316 is preferred. For maximum performance, 17-7 PH offers the highest strength.
Is 304 stainless steel good for springs?+
304 stainless steel can be used for springs where the stress is not too high. In its standard (annealed) state, it has at least 515 MPa tensile strength (ASTM A240). For stronger springs, it’s better to use Grade 301 or 17-7 PH stainless steel instead.
What is a stainless steel spring strip?+
A stainless steel spring strip is a precision cold-rolled flat product supplied in coil form in spring temper conditions from quarter-hard through extra-hard. It is used to produce springs, clips, clamps, connectors, and other formed components.
What thicknesses and widths are available for precision SS strip?+
Thicknesses start from 0.05 mm and go up to 4.0 mm, and widths from 3 mm to 650 mm. Custom slitting to exact width requirements is available. Contact us for specific dimensional needs.
What surface finishes are available for stainless steel precision strips?+
Available finishes include 2B, BA (bright annealed), No. 4, HL (hairline), and mirror. Edge options are slit edge, deburred edge, and round (coined) edge.
What temper conditions are available for the spring strip?+
Spring strips are supplied in annealed, 1/4H, 1/2H, 3/4H, full hard (H), extra hard (EH), and spring extra hard (SEH) conditions. The right temper depends on your application's strength and formability requirements.
Where can I buy stainless steel precision strips for springs and clamps?+
Sachiya Steel International supplies stainless steel precision strips in all standard grades and tempers from our Mumbai warehouse. We provide mill test certificates, ISO 9001, 14001 and 45001 certification, and ASTM/ASME compliance documentation with every order. Request a quote for current stock availability.
Can a stainless steel strip be custom slit to specific widths?+
Yes. We slit precision strips from master coils to your exact width requirements, with slit, deburred, or round edge finishing. The smallest slit width is generally around 3 mm, though this can change with the thickness of the material.
