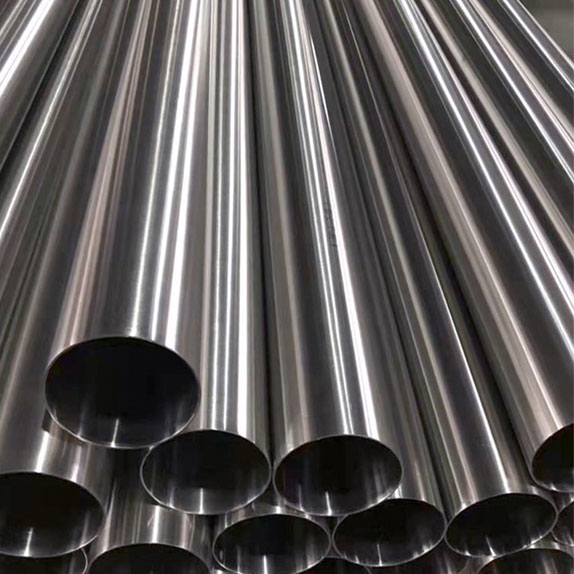

Monel K500 Pipe Specifications

Specifications of Monel K500 pipe, including size, schedule and forms are listed in the table below.

Parameter Detail
Seamless Pipe Standard ASTM B165 / ASME SB-165
Size Range 1/2" to 12" NPS (6.35 mm to 254 mm OD)
Wall Thickness 0.6 mm to 20 mm
Schedules SCH 5, 10, 40, 80, 160, XXH
Form Seamless, Welded, ERW

Monel K500 Pipe Dimensional Tolerances

The dimensional tolerance of Monel K500 pipes is listed with the size range and tolerance value.

Parameter Pipe Size Range Tolerance Value
Outside Diameter (OD) Above 6" NPS ± 1%
Wall Thickness Above 6" NPS ± 12.5%

Monel K500 Pipe Sizes

Monel K500 pipes offer high strength, corrosion resistance, and durability, available in various diameters and thicknesses for demanding industrial applications.

Parameter Specification
Outer Diameter (OD) 1/2" to 12"
Wall Thickness 0.6 mm to 20 mm

Seamless Pipe Size Chart

Seamless Monel K500 pipe is the most ordered form for high-pressure service. The table below lists the sizes of this SMLS pipe.

NPS OD (mm) SCH 40 WT (mm) SCH 80 WT (mm)
1/2" 21.3 2.77 3.73
1" 33.4 3.38 4.55
2" 60.3 3.91 5.54
4" 114.3 6.02 8.56

Welded Pipe Size Chart

Welded K500 Monel pipe covers larger diameters where seamless production isn't cost-effective.

NPS OD (mm) SCH 10 WT (mm) SCH 40 WT (mm)
4" 114.3 3.05 6.02
6" 168.3 3.40 7.11
8" 219.1 3.76 8.18

Monel K500 Pipe Price

Monel K500 pipe price ranges from approximately ₹1,600 to ₹3,500 per kg in India and $70 to $90 per kg, depending on size, schedule, and quantity. Seamless pipe costs more than welded forms. Contact us for a quotation.

Chemical Composition of Monel K500 Pipe

The table below lists the chemical composition of Monel K500 pipe, along with its proportions. Aluminium and titanium enable precipitation hardening.

Nickel Ni
63.0% min
Copper Cu
27.0 – 33.0%
Aluminium Al
2.30 – 3.15%
Titanium Ti
0.35 – 0.85%
Iron Fe
Max 2.00%
Manganese Mn
Max 1.50%
Silicon Si
Max 0.50%
Carbon C
Max 0.25%
Sulphur S
Max 0.010%

Mechanical Properties of Monel K500 Pipe

Monel K-500 pipe’s mechanical properties are listed below, including elongation and tensile strength. Age hardening raises tensile strength above 1,000 MPa (145 ksi). Properties hold up to 480°C (900°F) before overaging begins.

690
MPa min (100 ksi)
Tensile Strength
483
MPa min (70 ksi)
Yield Strength
20%
(min)
Elongation
Property Value Unit
Tensile Strength, min 690 (100) MPa (ksi)
Yield Strength (0.2% offset), min 483 (70) MPa (ksi)
Elongation, min 20 %
Request a Quote for Monel K500 Pipe Request a Quote

Monel K500 Pipe Equivalent Designations

Monel K-500 pipe is recognised under several international standards, as provided below.

Standard System Designation
UNS N05500
EN NiCu30Al
W.Nr. 2.4375
DIN NiCu30Al
AFNOR NC30Fe
GOST НМЖМц28-2.5-1.5 (NMZhMts28-2.5-1.5)

Monel K500 Pipe Industrial Applications

Alloy K-500 pipe serves industries that demand high strength and corrosion resistance.

Oil & Gas Industry

Monel K500 pipe serves demanding oilfield applications such as deep well pump shafts, production tubing strings, and harsh sour gas completions.

Marine Engineering

Alloy K-500 pipe is essential for marine propeller drive shafts, seawater transport systems, and structural components on offshore platforms worldwide.

Chemical Processing

Monel K500 pipe safely conveys hydrofluoric acid, various alkaline brine solutions, and low-oxygen sulphuric acid in demanding chemical processing services.

Monel K500 vs Monel 400 Pipe

Monel K500 pipe and Monel 400 pipe have the same corrosion resistance, but K500 provides higher strength through age hardening. K500 is the better choice when corrosion resistance and high load capacity are both required.

Property Monel K500 Monel 400
Tensile Strength (min) 690 MPa (100 ksi) 480 MPa (70 ksi)
Yield Strength (min) 483 MPa (70 ksi) 170 MPa (25 ksi)
Hardening Age-hardenable (Ni3Al, Ni3Ti) Non-hardenable
Key Addition Al 2.30 to 3.15%, Ti 0.35 to 0.85% None (Ni-Cu binary)

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Monel K500 pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all pipe bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Monel product to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is Monel K500 pipe used for? +
Offshore oil and gas production, marine propeller shafts, pump shafts, and chemical processing piping useMonel K500 pipe.
What is the difference between Monel K500 pipe and Monel 400 pipe? +
Monel K500 pipe has higher tensile strength (690 MPa vs 480 MPa) and yield strength (483 MPa vs 170 MPa) compared to Monel 400. Aluminium and titanium additions in Monel K500 enable age hardening.
What sizes are available for Monel K500 pipe? +
Monel K500 pipe is available from 1/2" to 12" OD (6.35 mm to 254 mm) in wall thicknesses from 0.6 mm to 20 mm.
What ASTM specifications cover Monel K500 pipe? +
Monel K500 pipe is covered by ASTM B165 / ASME SB-165 for seamless pipe.
What is the price of Monel K500 pipe per kg? +
Monel K500 pipe typically costs ₹1,600 to ₹3,500 per kg in India and $70 to $90 per kg. Final price depends on OD, wall thickness, quantity, and market conditions.
Can Monel K500 pipe be used in sour service environments? +
Monel K500 pipe has strong resistance to stress corrosion cracking in H2S (sour) environments and is commonly used in sour gas wells.
What is the maximum operating temperature for Monel K500 pipe? +
Monel K500 pipe retains its age-hardened properties up to 480°C (900°F). Overaging above this range reduces strength.
How is Monel K500 pipe welded? +
Monel K500 pipe is welded using GTAW (gas tungsten arc welding) with Monel filler metal 60. The pipe should be annealed before welding.
