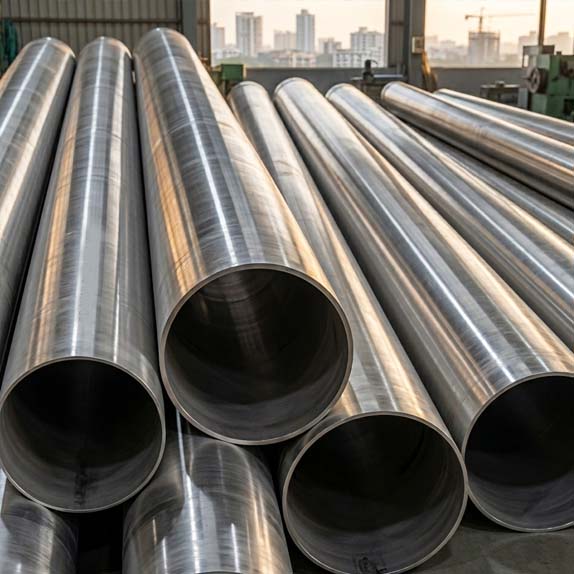

Specifications of Stainless Steel 304 Large Diameter Pipes
The specifications of Stainless Steel 304 Large Diameter pipe, including size, thickness and standards, are listed in the table given below:
| Property | Details |
|---|---|
| Standards | ASTM A312 / ASME SA-312, ASTM A358 / ASME SA-358, ASTM A778 |
| Size Range (OD) | 4” (114.3 mm) to 48” (1219 mm) |
| Schedules | 5S, 10S, 10, 20, 30, 40S, 40, 60, 80S, 80, 100, 120, 140, 160, XXH |
| Wall Thickness | Per ASME B36.19M and ASME B36.10M |
| Length | 6m single random, 12m double random, custom-cut available |
| End Type | Plain end, bevelled end |
| Forms | Seamless, EFW (Electric Fusion Welded) |
| Finish | Mill finish, pickled, polished |
Pipe Size
The available pipe size for Stainless Steel 304 Large Diameter pipes is listed in the table given below:
| Parameter | Specification |
|---|---|
| Material | Stainless Steel 304 |
| Minimum Size | NPS 4” (114.3 mm OD) |
| Maximum Size (EFW/Spiral Welded) | NPS 48” (1219 mm OD) |
| Seamless Size Range | Up to NPS 24” |
| Pipe Types Available | Seamless, EFW (Electric Fusion Welded), Spiral Welded |
Dimensions
The available dimensions for Stainless Steel 304 Large Diameter pipes are listed in the table given below:
| Parameter | Specification |
|---|---|
| Outer Diameter (OD) | As per ASME B36.19M (Stainless Steel Pipe Dimensions) |
| Wall Thickness | As per ASME B36.19M |
| Sizes Above NPS 12” | Wall thickness also follows ASME B36.10M designations |
Schedule Chart
The schedule chart for Stainless Steel 304 Large Diameter pipes is listed in the table mentioned below:
| Parameter | Specification |
|---|---|
| Product Type | Large Diameter Pipes |
| Standard Schedules (Stock) | 5S, 10S, 40S, 80S |
| Applicable NPS Sizes | Available for most NPS sizes |
| Higher Schedules | 100, 120, 140, 160, XXH |
| Higher Schedule Availability | NPS 4” to NPS 24” |
| Supply Condition | Made-to-order for higher schedules |
Weight Chart
The weight chart for Stainless Steel 304 Large Diameter pipes is given in the table mentioned below:
| Parameter | Specification |
|---|---|
| NPS 12” Schedule 40S | NPS 24” Schedule 10S |
| Nominal Pipe Size (NPS) | 12” / 24” |
| Schedule | 40S / 10S |
| Approx. Weight (kg/m) | 49.7 kg/m / 56.3 kg/m |
| Governing Standard | ASME B36.19M |
| Key Consideration | Confirm the exact weight for structural and logistics planning |
Stainless Steel 304 Large Diameter Pipe Price
SS 304 large diameter pipe prices in India range from ₹300 to ₹600 per kg, depending on outer diameter, wall thickness, schedule, and order quantity. International pricing can range from $3,100 to $5,400 per ton, fluctuating with nickel and chromium spot rates, order volume, and surface finish. Seamless pipes carry a premium over EFW pipes of the same nominal size. Contact Sachiya Steel International for the current 304 stainless steel pipe price list and volume discounts.
Chemical Composition of ASTM A312 TP304 Large Diameter Pipes
The chemical composition of Grade TP304, along with its proportion, is listed in the table given below.
For applications requiring heavy welding without post-weld annealing, Grade 304L (0.03% max carbon) is the preferred alternative.
Mechanical Properties of Stainless Steel 304 Large Diameter Pipes
The mechanical properties of Stainless Steel 304 Large Diameter Pipes, along with their tensile strength, are listed below:
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (min) | 515 / 75 | MPa / ksi |
| Yield Strength (min) | 205 / 30 | MPa / ksi |
| Elongation (min) | 35 | % |
Equivalent Grades of Stainless Steel 304 Large Diameter Pipes
Grade 304 carries multiple designations across international standards. The table below explains equivalent specifications:
| Standard | Designation |
|---|---|
| UNS | S30400 |
| EN (Europe) | 1.4301 / X5CrNi18-10 |
| JIS (Japan) | SUS304 |
| GB (China) | 06Cr19Ni10 |
| GOST (Russia) | 08Kh18N10 |
| IS (India) | X04Cr19Ni9 |
Industrial Applications of Stainless Steel 304 Large Diameter Pipes
SS 304 large diameter pipes are used in 4 major sectors: oil and gas, chemical processing, water treatment, and food production.
Oil & Gas Pipeline
SS 304 large diameter pipes are used in oil and gas operations for transfer lines and header pipes.
Chemical & Petrochemical Processing
Chemical plants use AISI 304 large bore pipes for reactor feed lines and heat exchanger connections handling mildly corrosive media.
Water & Waste Treatment
Heat exchangers, reactors and process piping in nitric acid and organic acid production rely on 347H for corrosion performance under thermal cycling. Niobium stabilisation prevents weld decay in heat-affected zones.
Food & Beverage Processing
Food and beverage processing lines require sanitary-grade piping.
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect 304 large diameter pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Plastic end caps on threaded and plain-end pipes
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Pipe Bundle Yard Staging
Container End-Cap Protection
Wrapped Export-Ready Bundles
