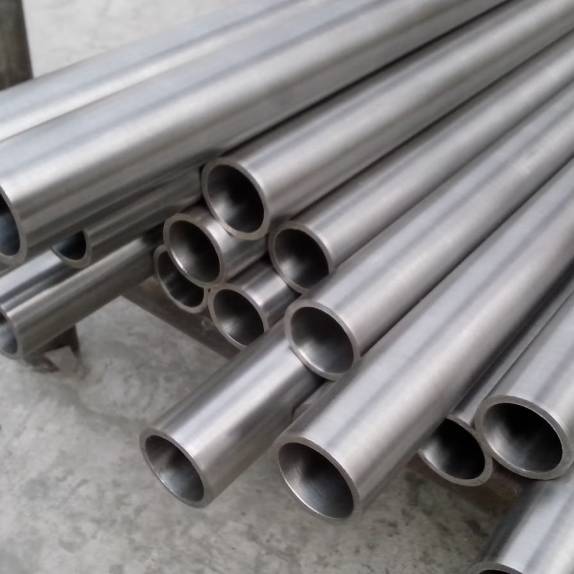

Alloy Steel Pipe Specifications

Refer to the following technical data for the material specifications and mechanical requirements of ASTM A335 Alloy Steel Pipes.

Property Specification / Details
Common Grades P5, P9, P11, P22, P91, P92
Size Range 1/8" NB to 30" NB (Larger OD available for EFW)
Wall Thickness Schedule 20 to XXS (Custom thicknesses available)
Standard Lengths Single Random, Double Random, Cut-to-Length (up to 12m)
End Connections Plain End, Beveled End, Threaded

Alloy Steel Pipe Sizes and Dimensions

The table below outlines the dimensional range for alloy steel pipes, covering standard diameters and wall thicknesses for industrial applications.

Parameter Dimensional Range
Outer Diameter (OD) 10.3 mm to 762 mm
Wall Thickness (WT) 1 mm to 200 mm
Schedule Range SCH 5 to SCH XXS
Standard Lengths Single Random, Double Random, or Custom Cut
Standard Specification ASTM A335 / ASME SA335

Alloy Steel Pipe Schedule Chart

Wall thickness (mm) by NPS for common schedules is shown below.

NPS OD (mm) SCH 40 SCH 80 SCH 160 XXS
2" 60.30 3.91 5.54 8.74 11.07
4" 114.30 6.02 8.56 13.49 17.12
8" 219.08 8.18 12.70 23.01 22.23

Alloy Steel Pipe Weight Chart

Pipe weight per metre varies with size and schedule.

NPS SCH 40 (kg/m) SCH 80 (kg/m) SCH 160 (kg/m)
2" 5.44 7.48 11.11
4" 16.07 22.32 33.54
8" 42.55 64.64 107.93

Outside Diameter and Wall Thickness Tolerance

Refer to the table below for the standard dimensional tolerances permitted for alloy steel pipes under the ASTM A335 specification.

Parameter Pipe Size / Standard Permissible Tolerance
Outside Diameter (OD) Over 1.5" NB ± 1%
Wall Thickness Per ASME B36.10M -12.5% deviation
Weight All Sizes +10% / -3.5%

Alloy Steel Pipe Price

Alloy steel pipe price ranges from Rs 150 to 300/kg (USD 2 to 5/kg) depending on grade, size, and schedule. P91 commands 30 to 50% above P22 pricing. Contact us for a quote.

Alloy Steel Pipe Grades

ASTM A335 alloy steel pipe grades include P5, P9, P11, P22, and P91.

Grade P5 (5Cr-0.5Mo)

P5 pipe contains 4.0 to 6.0% chromium and 0.45 to 0.65% Mo for refinery process piping up to 593 °C.

Grade P9 (9Cr-1Mo)

The P9 grade carries 8.0 to 10.0% chromium, the highest among standard grades, specified for superheater and reheater tubes.

Grade P11 (1.25Cr-0.5Mo)

Alloy steel P11 pipe is the most common entry-level Cr-Mo grade. It's specified for boiler piping up to 538 °C.

Grade P22 (2.25Cr-1Mo)

P22 is the most widely specified grade globally, with 1.90 to 2.60% Cr and 0.87 to 1.13% Mo for main steam piping.

Grade P91 (9Cr-1Mo-V Modified)

Grade P91 adds vanadium and niobium for creep resistance up to 620 °C, requiring PWHT to restore the coarse-grain heat-affected zone (CGHAZ).

Alloy Steel Pipe Forms

Alloy steel pipe comes in seamless and welded forms.

Seamless Alloy Steel Pipe (ASTM A335)

Seamless Alloy Steel Pipe (ASTM A335)

Welded Alloy Steel Pipe (ASTM A691 / ERW)

Welded Alloy Steel Pipe (ASTM A691 / ERW)

Alloy Steel Pipe Applications

Alloy steel pipe applications span three primary high-temperature industries.

Power Generation

Boiler piping, superheater tubes, and hot reheat piping in thermal power plants use grades P11, P22, and P91.

Oil & Gas and Petrochemical

Refinery process piping, catalytic crackers, and heat exchangers rely on ferritic alloy steel pipe.

Chemical Processing

Reactor piping and fluid lines use Cr-Mo alloy pipe where carbon steel can't withstand the conditions.

Get the Best Price on ASTM A335 Alloy Steel Pipe Request a Quote

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect alloy steel pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies alloy steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is Alloy Steel Pipe?+
Alloy steel pipe is a tubular product combining steel with chromium, molybdenum, and other alloying elements per ASTM A335 / ASME SA-335 for high-temperature service.
What are the grades of Alloy Steel Pipe?+
Common ASTM A335 grades include P5, P9, P11, P22, and P91, each serving a specific temperature range.
What is the difference between P11 and P22 Alloy Steel Pipe?+
P11 has 1.00 to 1.50% Cr and 0.44 to 0.65% Mo. P22 has 1.90 to 2.60% Cr and 0.87 to 1.13% Mo, rated to 593 degrees C versus 538 degrees C for P11.
Why are Seamless Alloy Steel Pipes preferred for high-pressure applications?+
Seamless pipe delivers approximately twenty percent more operating pressure than comparable welded options, despite the fact that there is no risk of corrosion in the weld zone.
What sizes are available for Alloy Steel Pipe?+
Sizes range from 1/8" NB to 30" NB in schedules SCH 20 through XXS, with cut-to-length options.
What is the price of Alloy Steel Pipe?+
Pricing ranges from Rs 150 to 300/kg (USD 2 to 5/kg) depending on grade, size, and schedule.
What ASTM Specification covers Alloy Steel Pipe?+
ASTM A335 / ASME SA-335 covers seamless ferritic alloy-steel pipe. ASTM A691 covers welded pipe.
What Welding Electrodes are Recommended for Alloy Steel Pipe?+
Electrode selection depends on grade: E8018-B2 for P11, E9018-B3 for P22, and E9015-B9 for P91. PWHT is required for all Cr-Mo grades.
