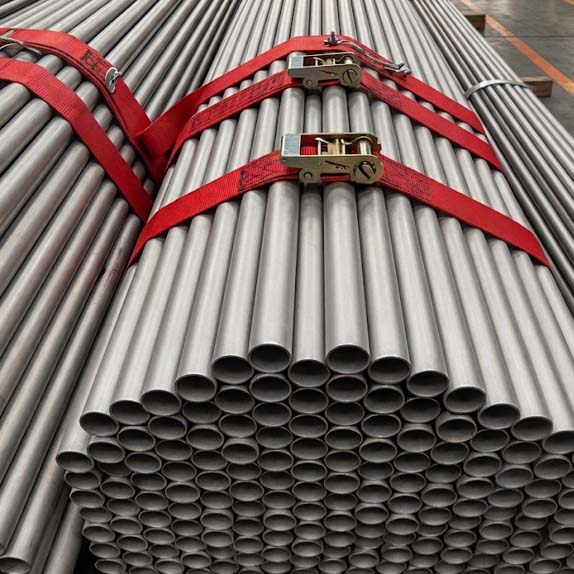

Specifications of Stainless Steel 316L Welded Pipe

These specifications cover ASTM A312 TP316L welded pipe sizes, shapes, and finishes, ensuring reliable quality, and corrosion resistance for industrial, structural and process uses worldwide.

Property Details
Standard ASTM A312 / ASME SA-312, ASTM A358 / ASME SA-358
Size (ERW) 1/2” NB to 24” NB
Size (EFW) 6” NB to 100” NB
Wall Thickness Per the schedule designation
Schedule SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
Length Single Random, Double Random, Cut Length
End Type Plain End, Bevelled End, Threaded
Finish Mill Finish, Annealed & Pickled, 2B, BA, No.4, Mirror
Form ERW, EFW
Cross-section Round, ASTM A554 (Square, Rectangular)
Dimensional Standard ASME B36.19M, ASME B36.10M

Stainless Steel 316L Welded Pipe Sizes & Dimensions

The table below shows the standard sizes and dimensions of Stainless Steel 316L welded pipes commonly used in industrial, structural, and process applications.

Parameter Specification
Outer Diameter (OD) 6.00 mm to 1219.2 mm
Wall Thickness 0.5 mm to 25.0 mm
NPS Size Range up to 100” NB
Pipe Schedules SCH 5 to XXS
Length Single Random, Double Random, Cut-to-Size (as required)

Stainless Steel 316L Welded Pipe Price

SS 316L welded pipe is priced at approximately  ₹180-325 per kg (USD 2.15-3.90 per kg) in the Indian market. Final price depends on pipe size (outer diameter and wall thickness), schedule, quantity, surface finish, and standard (A312 or A358). Prices also change with nickel, molybdenum, and chromium costs.

Chemical Composition of Stainless Steel 316L Welded Pipe

The table below shows the chemical composition of SS 316L welded pipes and the key alloying elements that give the material good corrosion resistance, strength and reliability in harsh chloride-rich environments. The 0.030% carbon limit is what mainly defines the “L” grade.

Carbon C
Max 0.030%
Manganese Mn
Max 2.00%
Phosphorus P
Max 0.045%
Sulphur S
Max 0.030%
Silicon Si
Max 1.00%
Chromium Cr
16.0 – 18.0%
Nickel Ni
10.0 – 14.0%
Molybdenum Mo
2.00 – 3.00%
Nitrogen N
Max 0.10%

Mechanical Properties of ASTM A312 TP316L Welded Pipe

ASTM A312 TP316L welded pipes’ mechanical properties give them good strength, flexibility, and dependable performance in corrosive, high-pressure, and tough industrial environments. The values below apply to the pipe in the solution-annealed condition.

485 (70)
MPa (ksi)
Tensile Strength
170 (25)
MPa (ksi)
Yield Strength
35%
(min)
Elongation
Property Value Unit
Tensile Strength (min) 485 (70) MPa (ksi)
Yield Strength (min) 170 (25) MPa (ksi)
Elongation (min) 35 %
Request a Quote for SS 316L Welded Pipe Request a Quote

Equivalent Designations of Stainless Steel 316L Welded Pipe

Stainless Steel 316L welded pipes have several international designations, making it easy to match materials and order the correct grade for projects worldwide.

Standard Designation
UNS S31603
Europe (EN/DIN) 1.4404 / X2CrNiMo17-12-2
Japan (JIS) SUS 316L
China (GB/T) 022Cr17Ni12Mo2
France (AFNOR) Z2CND17-12
UK (BS) 320S31

Applications of Stainless Steel 316L Welded Pipe

SS 316L welded pipe is used across 5 primary industries due to its molybdenum-enhanced chloride resistance and low-carbon weldability.

Chemical and Petrochemical Processing

These plants use 316L welded pipe for transporting sulphuric acid, phosphoric acid and chloride-bearing process fluids. The alloy’s 2.00-3.00% molybdenum content resists pitting in these aggressive media.

Food, Beverage, and Pharmaceutical

Food & pharmaceutical manufacturers require 316L welded pipe for hygienic piping. The smooth, pickled interior surface prevents bacterial adhesion and withstands CIP (clean-in-place) cycles.

Marine and Offshore

Such applications rely on 316L for seawater cooling lines and ballast systems.

Water Treatment and Desalination

These plants use it for brine handling and reverse osmosis membrane housings.

Oil and Gas

Facilities dealing with oil& gas install this pipe in offshore platforms, refineries and subsea piping systems where saltwater exposure is constant.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect 316L welded pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
Bundle Yard Staging Pipe Bundle Yard Staging
Bundle Edge Protection Container End-Cap Protection
Export-Ready Bundles Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is Stainless Steel 316L Welded Pipe? +
Stainless Steel 316L Welded Pipe is austenitic stainless steel made by welding strip or plate per ASTM A312 / ASME SA-312. The letter "L" indicates a maximum carbon content of 0.030%. This low carbon level prevents the formation of carbides, which helps to improve resistance to intergranular corrosion.
Is 316L Stainless Steel weldable? +
Yes. 316L is designed for excellent weldability. Its low carbon prevents harmful chromium carbide in the heat-affected zone. They show corrosion resistance in TIG, MIG, and submerged arc welding.
What is the price of SS 316L Welded Pipe per Kg? +
SS 316L welded pipe costs about ₹180-325 per kg in India. Final price depends on OD, wall thickness, schedule, quantity, surface finish, and nickel/molybdenum prices. Contact Sachiya Steel International for a project-specific quote.
What is the difference between 316L Welded Pipe and Seamless Pipe? +
316L welded pipe is made by longitudinally welding a strip or plate. Welded pipe costs less, and it’s available in larger diameters (up to 100” NB for EFW). Seamless pipe is extruded from a solid billet, weldless with higher dimensional accuracy, preferred for high-pressure services above SCH 160.
What ASTM standard covers 316L Welded Pipe? +
ASTM A312 / ASME SA-312 covers straight-seam welded austenitic stainless steel pipe. ASTM A358 / ASME SA-358 covers electric-fusion-welded large-diameter pipe with Class I–V radiography. ASTM A778 covers welded, unannealed tubular products for general corrosive service.
