Specifications of Titanium Pipe

The following data refers to the material specifications of Titanium Pipes in commercially pure and alloyed grades for high-strength, low-weight industrial applications.

Property Specification / Details
Standard ASTM B861 (Seamless), ASTM B862 (Welded)
Common Grades Grade 2 (CP), Grade 5 (Ti-6Al-4V)
NPS Range 1/4" NPS to 24" NPS
Schedule SCH 5S, 10S, 40S, 80S
Outside Diameter 10.3 mm to 610 mm
Wall Thickness 0.5 mm to 30 mm
Length Single Random, Double Random, or Cut Length (Up to 6m)
Testing Ultrasonic, Hydrostatic, Eddy Current, X-ray (for Welded)

Titanium Pipe Sizes

Titanium pipes are stocked in a range of NPS designations, schedules, and wall thicknesses to suit different pressure classes.

Parameter Specification / Range
Nominal Pipe Size (NPS) 1/4" to 24"
Schedules SCH 5, 10, 40, and 80
Common OD Range 0.840" (NPS 1/2) to 4.500" (NPS 4)
Wall Thickness 0.035" (0.89 mm) to 0.337" (8.56 mm)
Standard Length 6 Metres (20 feet)
Processing Cut-to-length and custom sizes available
Material Grades Grade 2, Grade 5, Grade 7, Grade 12

Titanium Pipes Price

Titanium pipes cost ₹1,200 to ₹5,500 in India and $15 to $65 per kg in the US. Daily market factors like grade, scheduling, and surface polish affect titanium pipe prices. Grade 2 is common, whereas Grade 5 (Ti-6Al-4V) is expensive because to its sophisticated processing. Changes in titanium sponge rates affect your final cost. We recommend sending your exact needs today. Our staff will deliver a fresh, accurate price based on market conditions and your industrial demands.

Titanium Pipe Grades

Titanium alloy pipes are available in six commonly specified grades. Grade 2 dominates general industrial use, while Grade 5 leads in aerospace and high-performance sectors. Grades 1, 7, 9, and 12 fill specialised application niches.

Grade 2

Grade 2 CP titanium is widely used in industrial piping. It delivers 345 MPa (50 ksi) minimum tensile strength alongside excellent corrosion resistance to chlorides and seawater. Chemical processing plants, heat exchangers, desalination systems, and power generation facilities all rely on this grade.

Grade 5

Aerospace pipework, defence systems, and offshore platforms all rely on Ti-6Al-4V. This alpha-beta alloy uses aluminium and vanadium to reach an 895 MPa tensile strength. It’s perfect for high-performance exhaust systems where durability is non-negotiable.

Titanium Pipe Forms

Titanium pipes come in two primary manufacturing forms: seamless and welded. Each form suits a different service condition and budget range.

Seamless Titanium Pipes (ASTM B861)

Welded Titanium Pipes (ASTM B862)

Request a Quote for Titanium Pipes Request a Quote

Titanium Pipe Industrial Applications

Titanium pipes find use across industries that demand corrosion resistance in chloride, acid, and seawater environments. Below are 4 key application sectors for titanium piping.

Chemical & Petrochemical Processing

Titanium Grade 2 pipes handle hydrochloric acid, sulphuric acid, and chlorine gas in chemical plants. Petrochemical refineries use titanium piping in heat exchangers and condensers where chloride-bearing cooling water would corrode stainless steel.

Aerospace & Defence

Grade 5 and Grade 9 titanium pipes serve in aircraft hydraulic systems, engine bleed air ducting, and structural frames. The strength-to-weight ratio of Ti-6Al-4V reduces airframe mass without sacrificing pressure capability.

Marine & Desalination

Seawater desalination plants specify Grade 2 titanium for condenser tubing and piping. Marine vessels use titanium piping in ballast systems and fire suppression lines where saltwater contact is constant.

Exhaust Systems (Automotive & Motorcycle)

Titanium exhaust pipes are roughly 40% lighter than stainless steel equivalents. CP Grade 1 and Grade 2 are the standard choices for motorcycle and automotive exhaust fabrication.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Titanium Pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection

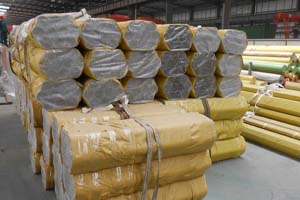

Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies titanium products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is Titanium Pipe used for? +
Titanium pipes are used in chemical processing, heat exchangers, desalination plants, aerospace hydraulic systems, marine piping, and exhaust systems. Their resistance to chlorides, acids, and seawater makes them a preferred choice over stainless steel in corrosive service.
How much does titanium pipe cost? +
Titanium pipes cost ₹1,200–₹5,500 in India and $15–$65 per kg in the USA. Titanium pipe cost varies by grade, size, wall thickness, and order quantity. Grade 2 seamless pipe is the most affordable option for industrial use. Grade 5 carries a premium. Contact us with your specifications for current pricing.
What is the difference between ASTM B861 and ASTM B862 titanium pipes? +
ASTM B861 covers seamless titanium pipes produced by extrusion or piercing. ASTM B862 covers welded titanium pipes made through ERW or EFW processes. Seamless pipes suit higher-pressure applications, while welded pipes are more cost-effective for general service.
Which titanium pipe grade is best for heat exchangers? +
Grade 2 commercially pure titanium is the most widely used grade for heat exchanger piping. It integrates superior resistance to chlorine and seawater corrosion with commendable weldability and formability at a competitive price.
What sizes are titanium pipes available in? +
Titanium pipes are available from 1/4" NPS to 24" NPS in schedules 5, 10, 40, and 80. Standard lengths are 6 metres (20 feet). Custom OD and wall thickness combinations can be produced on request.
Can titanium pipes be welded? +
Titanium pipes can be welded using GTAW (TIG) welding with full inert gas shielding. Grade 2 offers excellent weldability. All welding must take place in an argon-purged environment to prevent oxygen and nitrogen contamination of the weld zone.
What is the difference between titanium pipes and titanium tubes? +
Titanium pipes are specified by NPS and schedule under ASTM B861 / B862. Titanium tubes are specified by exact OD and wall thickness under ASTM B338. Pipes go into piping systems; tubes serve heat exchangers, condensers, and instrumentation lines.
Are titanium exhaust pipes worth it? +
Titanium output components are 40% lighter than their stainless steel counterparts and offer enhanced resistance to condensate corrosion. These attributes render them the optimal choice for high-performance automobiles, motorcycles, and motorsport applications.
