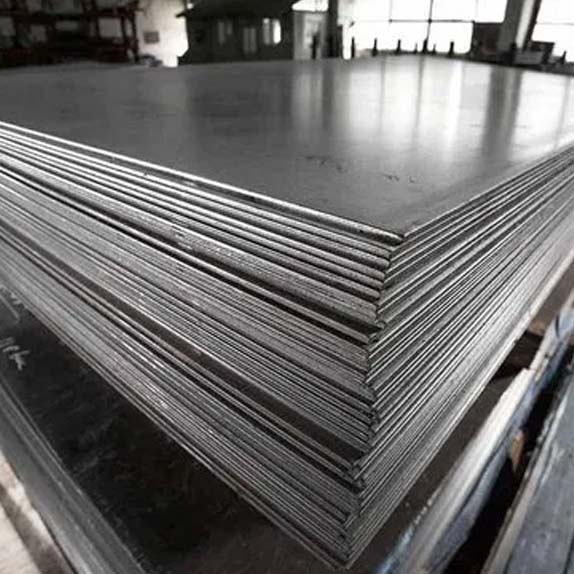

Specification of Stainless Steel 310 Sheet
The specification of SS 310 sheet, including UNS designation, standards, dimensions, finishes, and more, is covered in the table below:
| Parameter | Specification |
|---|---|
| UNS Number | S31000 |
| Standards | ASTM A240 / ASME SA240 |
| Form | Sheet / Plate / Coil |
| Thickness Range | 0.3 mm to 15 mm |
| Width Range | 1000 mm, 1219 mm, 1500 mm, 2000 mm |
| Length Range | 2000 mm, 2440 mm, 3000 mm, or custom cut |
| Finish Types | 2B, BA, No.1, No.4, Hairline, Mirror |
Stainless Steel 310 Sheet Sizes
Stainless Steel 310 Sheet is available in thicknesses from 0.3 mm to 15 mm (~28 gauge to 5/8″), widths of 1000–2000 mm (36″–48″), and lengths of 1000–6000 mm (48″–120″).
Standard Sheet Dimensions
The standard stainless steel 310 sheet dimensions are covered in the table below. At Sachiya Steel International, we provide custom slitting and shearing as per the client's specification. Non-standard widths, lengths, and close-tolerance thicknesses can also be produced against confirmed orders.
| Parameter | Specification |
|---|---|
| Thickness Range | 0.3 mm to 15 mm (24 gauge to 3/16″) |
| Width Range | 1000 mm to 2000 mm (36″ to 48″) |
| Length Range | 1000 mm to 6000 mm (48″ to 120″) |
| Standard Sheet Sizes | 48″ × 96″ (4 × 8 ft), 48″ × 120″ (4 × 10 ft) |
| Additional Stock Sizes | 36″ × 96″, 36″ × 120″ |
| Weight (Reference) | 16 gauge sheet ≈ 6.30 lbs/ft² |
| Weight Calculation Formula | Weight (kg) = Thickness (mm) × Area (m²) × 7.98 |
Available Surface Finishes of Stainless Steel 310 Sheets
SS 310 Sheet is available in multiple finishes:
- 2B (cold rolled, smooth matte) Stainless Steel 310 Sheet
- 2D (cold rolled, dull finish) SS 310 Sheet
- No.1 (hot rolled, rough/mill finish) AISI 310 Sheet
- No.4 (brushed/satin) TP310 Sheet
- BA (bright annealed) UNS S31000 Sheet
- No.8 / 8K (mirror finish) ASTM A240 SS 310 Sheet
- Perforated (round or square hole patterns) Stainless Steel 310 Sheet
- Shim Sheet (thin-gauge precision thickness) AISI 310 Sheet
- Strip & Coil (slit from sheet in custom widths) TP310 Sheet
310 Stainless Steel Sheet Price
SS 310 Sheet price starts from approximately ₹350 and goes up to ₹500 per kg (INR) or $4–8 per kg (USD). Final pricing varies with thickness, surface finish, order quantity, and current nickel and chromium market rates. Mirror-finish and thin-gauge precision sheets cost more than standard 2B-finish material. Contact Sachiya Steel International for volume-based pricing and current stock availability.
Chemical Composition of Stainless Steel 310 Sheet
The table below lists the chemical composition of SS 310 sheet per ASTM A240 / ASME SA-240 (UNS S31000). The 24–26% chromium forms a protective oxide layer at elevated temperatures, while 19–22% nickel stabilises the austenitic structure against thermal cycling.
Mechanical Properties of 310 Stainless Steel Sheet
Per ASTM A240 / ASME SA-240, these are the minimum mechanical values for ASTM A240 Type 310 sheet.
| Property | Value |
|---|---|
| Tensile Strength (min) | 75 ksi (515 MPa) |
| Yield Strength, 0.2% offset (min) | 30 ksi (205 MPa) |
| Elongation in 2 in. (min) | 35% |
Equivalent Designations for Stainless Steel 310 Sheet
International designation equivalent to SS 310 Sheet, including UNS and Werkstoff Nr., is listed in the table below.
| Standard | Designation |
|---|---|
| UNS | S31000 |
| AISI | 310 |
| Werkstoff Nr. | 1.4845 / X8CrNi25-21 |
| JIS | SUS 310 |
| Chinese (GB) | 06Cr25Ni20 |
Industrial Applications of 310 Stainless Steel Sheet
310 stainless steel sheet is used in high-temperature environments up to 2000°F (1093°C). Four key sectors drive demand. They are as follows:
Furnace and Thermal Processing
Alloy 310 sheet is fabricated into furnace linings, muffles, radiant tubes, tube hangers, and kiln components. It is also used for heat treatment equipment and thermal processing enclosures.
Petrochemical and Chemical Processing
In petrochemical plants, 310 SS sheets are used in process piping, reactors and vessels operating under carburising atmospheres.
Food Processing
High-temperature baking, drying, and sterilisation equipment uses a 310 sheet. Ovens and conveyor systems in commercial bakeries are common examples.
Cryogenic Applications
310 sheet retains toughness at cryogenic temperatures, with low magnetic permeability. Cryogenic storage structures and high-temperature service benefit from this dual temperature capability.
310 vs 310S vs 310H Stainless Steel Sheet
Stainless Steel 310, 310S, and 310H sheets differ primarily in carbon content and are selected based on welding requirements, creep strength, and high-temperature service conditions.
| Parameter | 310 Sheet (Standard Grade) | 310S Sheet (Low Carbon) | 310H Sheet (High Carbon) |
|---|---|---|---|
| Carbon Content (C) | Up to 0.25% | Max 0.08% | 0.04 – 0.10% |
| Silicon (Si) | Max 1.50% | Max 1.50% | Max 0.75% |
| Key Characteristic | Standard high-temperature grade | Low carbon for improved weldability | Controlled carbon for creep strength |
| Weldability | Moderate (risk of sensitisation) | Excellent (reduced carbide precipitation) | Moderate |
| Creep Resistance | Moderate | Lower than 310/310H | Higher (suited for elevated temperatures) |
| Primary Use | General high-temperature applications | Fabricated structures, welded components | Pressure vessels, boilers (ASME applications) |
| Availability | Less commonly stocked than 310S | Most commonly stocked | Supplied for code-specific requirements |
| Special Notes | Higher carbon improves strength but affects corrosion resistance after welding | Often overlaps with 310H chemistry, depending on heat treatment | Requires certified carbon content and grain control |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect stainless steel 310 sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Edge and corner protection with plastic padding
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Sheet Bundle Yard Staging
Sheet Bundle Edge Protection
Wrapped Export-Ready Bundles
We Export Worldwide
Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
