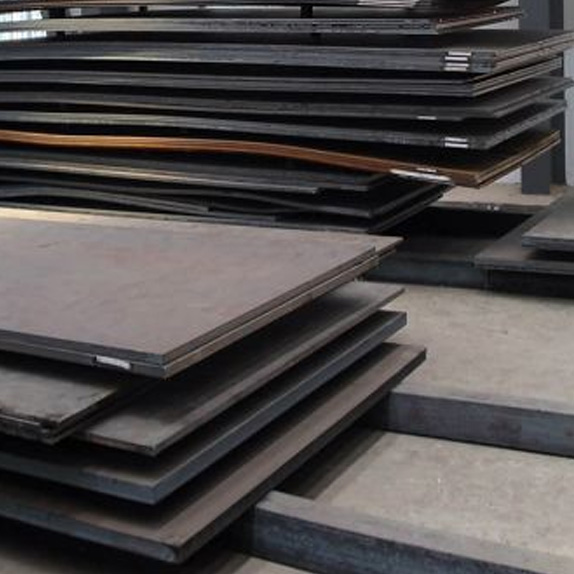

ASTM A516 Grade 60 Plate Specifications

The table below lists the key specifications of A516 Gr. 60 carbon steel plate, covering applicable standards, sizes, and delivery details.

Property Details
Standard ASTM A516/A516M, ASME SA-516
Thickness 3/16″ to 8″ (4.78 to 200 mm)
Width 48″ to 120″ (1200 to 3050 mm)
Length Up to 480″ (12,192 mm)
Condition As-rolled, Normalised (as per thickness and requirement)
Surface Finish Mill finish, shot blasted, painted
Edge Condition Mill edge, sheared, flame cut

ASTM A516 Gr. 60 Plate Price

ASTM A516 Grade 60 plates are priced at approximately ₹65-₹85 per kg in India. For international buyers, prices typically range from $0.80-$1.10 per kg. Grade 60 plate pricing depends on thickness, width, length, quantity, and delivery condition (as-rolled or normalised). Additional testing requirements, such as Charpy impact testing, HIC testing, or ultrasonic examination, affect the final cost. Current raw material market conditions and plate dimensions also play a role. Contact our sales team for an updated quotation based on your project specifications.

ASTM A516 Grade 60 Chemical Composition

The chemical composition of ASTM A516 Grade 60 plate per heat analysis varies by thickness. To maintain strength in thicker sections, the carbon limits increase with plate thickness.

Element Up to 1/2″ (12.7 mm) Over 1/2″ to 2″ (12.7–50 mm) Over 2″ to 4″ (50–100 mm) Over 4″ (100 mm)
Carbon (C) 0.21 max 0.23 max 0.25 max 0.27 max
Manganese (Mn) 0.60 – 0.90 0.85 – 1.20 0.85 – 1.20 0.85 – 1.20
Phosphorus (P) 0.025 max 0.025 max 0.025 max 0.025 max
Sulphur (S) 0.025 max 0.025 max 0.025 max 0.025 max
Silicon (Si) 0.15 – 0.40 0.15 – 0.40 0.15 – 0.40 0.15 – 0.40

ASTM A516 Grade 60 Mechanical Properties

A516 Grade 60 plate provides moderate strength with good ductility. The values below represent minimum specification requirements per ASTM A516/A516M.

Elongation adjustments apply based on plate thickness per ASTM A20/A20M.

415-550 / 60–80
MPa (ksi)
Tensile Strength
220 (32)
MPa (ksi)
Yield Strength (min)
25%
(min)
Elongation in 2“
21%
(min)
Elongation in 8“
Property Imperial Metric
Tensile Strength 60 to 80 ksi 415 to 550 MPa
Yield Strength (min) 32 ksi 220 MPa
Elongation in 2“ (min) 25% 25%
Elongation in 8“ (min) 21% 21%
Request a Quote for ASTM A516 Gr. 60 Plate Request a Quote

ASTM A516 Grade 60 Equivalent Grades

The table below maps A516 Grade 60 to its approximate international equivalents. Direct substitution between standards requires engineering review, as specification requirements aren’t identical.

Standard Designation
UNS K02100
EN 10028-2 P265GH (W.Nr. 1.0425)
BS 1501 161-430A
DIN 17155 HII (superseded by EN)
JIS G3103 SB410
GB 713 Q245R

Industrial Applications of ASTM A516 Gr. 60 Plate

ASTM A516 Grade 60 plate serves a wide range of industries. Its combination of moderate strength, good notch toughness, and weldability drives its selection across the following sectors.

🛢️

Oil and Gas and Petrochemical

A516 Gr. 60 plate is used for pressure vessel shells, columns, and reactors in refinery and petrochemical processing facilities.

âš¡

Power Generation

Boiler drums, steam drums and heat recovery components in thermal power plants rely on this grade for moderate-temperature, moderate-pressure service.

🛢️

Storage Tanks (API 650/620)

SA-516 Grade 60 plate is listed as an acceptable material in API 650 and API 620 for welded oil storage tanks and low-pressure storage tanks.

ASTM A516 Gr. 60 vs Gr. 70 Plate

Buyers frequently compare ASTM A516 Grade 70 plate and Grade 60 plate when selecting a plate for pressure vessel fabrication. The table below outlines the key differences.

Grade 60 offers better weldability and formability at comparable thicknesses, making it the preferred choice for moderate-pressure, lower-temperature vessels. Grade 70 is specified where higher design pressures demand greater tensile and yield strength.

Property Grade 60 Grade 70
Tensile Strength 60 to 80 ksi (415 to 550 MPa) 70 to 90 ksi (485 to 620 MPa)
Yield Strength (min) 32 ksi (220 MPa) 38 ksi (260 MPa)
Elongation in 8“ (min) 21% 17%

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect ASTM A516 Gr. 60 plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation plate Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Carbon steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is the operating temperature range for ASTM A516 Gr. 60 Plate?+
ASTM A516 Grade 60 plate is designed for service down to approximately -20 °F (-29 °C) when impact tested per supplementary requirement S1. The upper service limit typically does not exceed 800 °F (427 °C), depending on the applicable design code.
Does ASTM A516 Gr. 60 Plate require normalising?+
Plates under 1.5 inches (40 mm) thick may be supplied as-rolled. Plates 40 mm and above are commonly supplied in the normalised condition. Normalising may be specified by the purchaser or required by the design code.
Can ASTM A516 Gr. 60 Plate be used for API 650 storage tanks?+
Yes. ASTM A516 Grade 60 is a material that meets the requirements of API 650. It's commonly used to make the shell and bottom plates of welded oil storage tanks.
What is the European equivalent of ASTM A516 Grade 60 Plate?+
The approximate European grade is EN 10028-2 P265GH (W.Nr. 1.0425). It is used in similar ways and has similar strength, but still qualifies as a separate material. Always have an engineer review it before using it as a direct replacement.
Where can I buy ASTM A516 Gr. 60 Plate?+
Sachiya Steel International supplies ASTM A516 Grade 60 plate from our Mumbai warehouse with ready stock in multiple thicknesses. We offer mill test certificates, complete material traceability, and competitive pricing, all with worldwide delivery.
