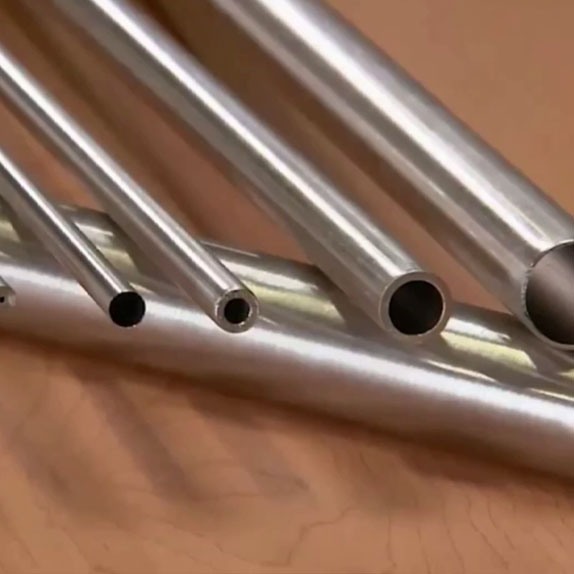

Seamless Tube

Seamless Tube Specifications

We supply seamless tubes per ASTM A213 / ASME SA-213, ASTM A269, ASTM A519, and ASTM A179 with full mill test certification.

Seamless Tube Sizes

We offer seamless tubes from 1/16" OD to 24" OD with wall thicknesses from 0.010" to 2" in lengths up to 12 metres. Round is standard; square and rectangular forms are available on request.

Seamless Tube Size Chart (OD and Wall Thickness)

OD and wall thickness ranges by material are listed below.

Seamless Tube Weight Calculator

The weight formula is Weight (kg/m) = (OD − WT) × WT × 0.02466 (OD/WT in mm). A 25.4 mm OD tube with 2.77 mm wall weighs 1.55 kg/m.

Seamless Tube Price

Market rates for seamless tubes currently range from ₹75 to ₹250 per kg in India and $1.10 to $3.50 in the USA. Precise material grades and order volumes remain the key factors for final pricing.

Seamless Tube Grades

For a detailed breakdown of the standard material grades and their specific properties, please check the table below.

SS 304 / 304L Seamless Tube

Grade 304 is the standard austenitic choice for general corrosion resistance. The 304L variant uses lower carbon to prevent intergranular corrosion during welding operations.

SS 316 / 316L Seamless Tube

The addition of molybdenum provides these tubes with superior resistance to chlorides and pitting, making them essential for marine environments and aggressive chemical processing.

SS 310 / 310S Seamless Tube

Suitable for high-temperature service up to ~1100°C (continuous), depending on environment. It is the preferred material for furnace components and thermal treatment systems.

SS 321 / 321H Seamless Tube

Titanium stabilisation allows these tubes to operate in the carbide precipitation range of 425°C to 860°C without losing their structural integrity or corrosion resistance.

SS 347 Seamless Tube

Niobium-stabilised 347 boosts creep strength and intergranular corrosion resistance. It delivers the dependability required for demanding high-pressure steam and elevated-temperature chemical applications.

Carbon Steel Seamless Tube (ASTM A106 / A53)

ASTM A106 Grade B is designed for high-temperature refinery pipes, whereas ASTM A53 Type S offers a versatile option for general structural applications.

Alloy Steel Seamless Tube (ASTM A335)

ASTM A335 "P-Grades" are critical for steam generation and power plants, offering the necessary creep-rupture strength for high-pressure, high-temperature boiler service.

Seamless Tube Types

Seamless tubes come in 3 types.

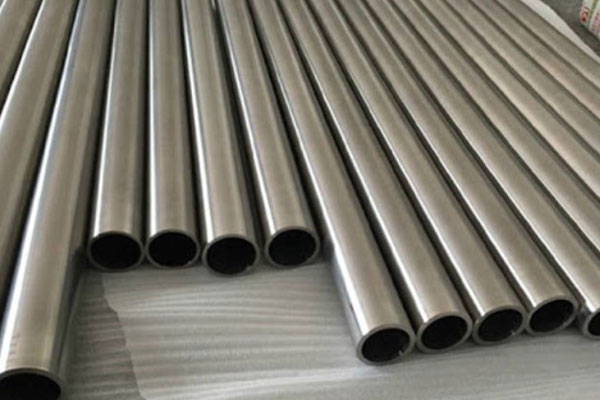

Cold Drawn Seamless Tube (CDS)

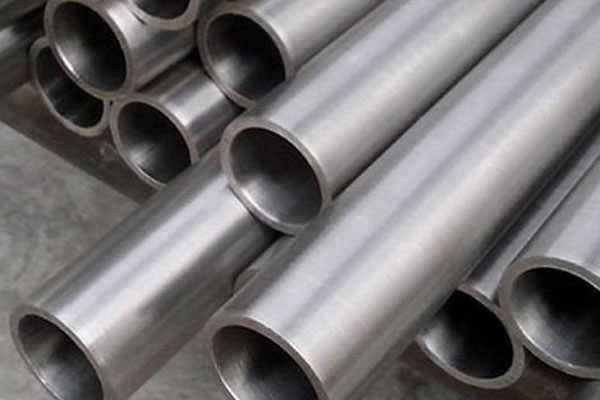

Hot Rolled / Hot Finished Seamless Tube (HRS)

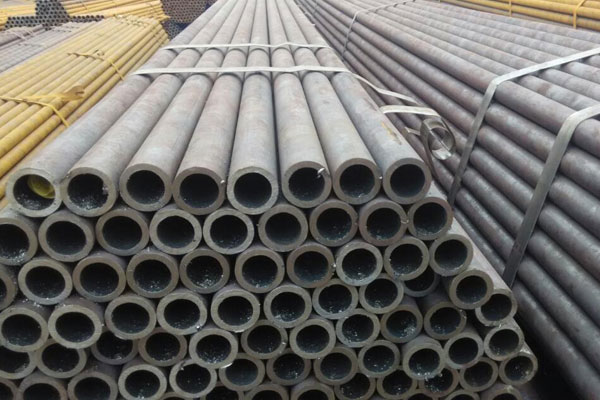

Extruded Seamless Tube

Seamless Tube Industrial Applications

Seamless tubes serve 4 key sectors where pressure integrity and corrosion resistance are critical.

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect seamless tubes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

• Heavy-duty wooden boxes with moisture barrier lining
• HDPE stretch film wrapping on all bundles
• Plastic end caps on tube ends
• Silica gel desiccants to minimize moisture exposure
• ISPM-15 fumigated wooden packaging for export

Pipe Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

Seamless Tube FAQ
