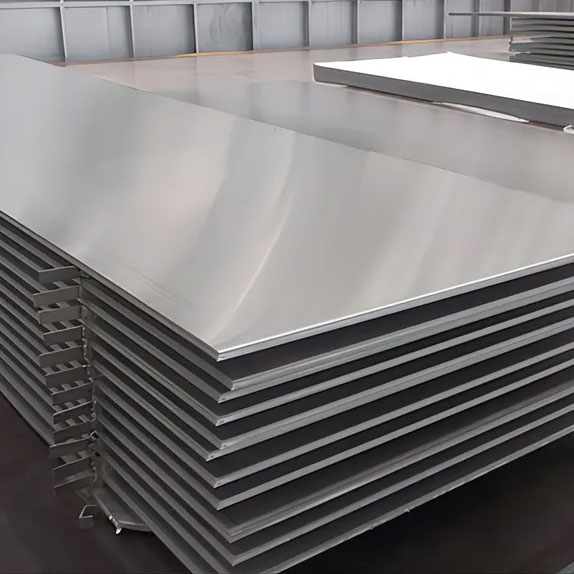

Hastelloy Plates Specifications
The specifications of Hatselloy plates, including standards, dimensions, forms, surface finishes, and more, are listed in the table below.
| Property | Specification |
|---|---|
| Common Grades | Hastelloy C-276 (UNS N10276) |
| Standards | ASTM B575 / ASME SB-575 |
| Form | Plates |
| Thickness Range | 0.5 mm to 100 mm |
| Width Range | 1000 mm to 2500 mm |
| Length Range | 2000 mm to 6000 mm (custom sizes available) |
| Manufacturing Process | Hot Rolled (HR), Cold Rolled (CR) |
| Surface Finish | No.1 (HR), 2B, BA, Matte Finish, Polished Finish |
Hastelloy Plate Sizes
Available thicknesses, widths, and lengths for Hastelloy plates are listed below.
Standard Plate Thickness Range
The standard plate thickness range for Hastelloy C-276 is mentioned in the table given below.
| Category | Thickness Range / Values |
|---|---|
| Stocked Thicknesses | 3/16", 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2" |
| Sheet Classification | Below 3/16" |
Standard Plate Width and Length
The standard plate width and length of Hastelloy C-276 are listed in the table mentioned below.
| Dimension | Size (Inches) | Size (Millimeters) |
|---|---|---|
| Width | 48" | 1,219 mm |
| Width | 60" | 1,524 mm |
| Length | 120" | 3,048 mm |
| Length | 240" | 6,096 mm |
Hastelloy Plate Grades
We, at Sachiya Steel International, supply Hastelloy Plates in the C-276 grade.
Hastelloy C-276 Plates (ASTM B575)
Hastelloy C-276 plate is the most used Hastelloy plate grade. High molybdenum (15-17%) and tungsten (3-4.5%) resists pitting, crevice corrosion, and stress corrosion cracking.
Hastelloy Plate Forms
Hastelloy plates are supplied in hot-rolled and cold-rolled forms, in the solution-annealed condition.

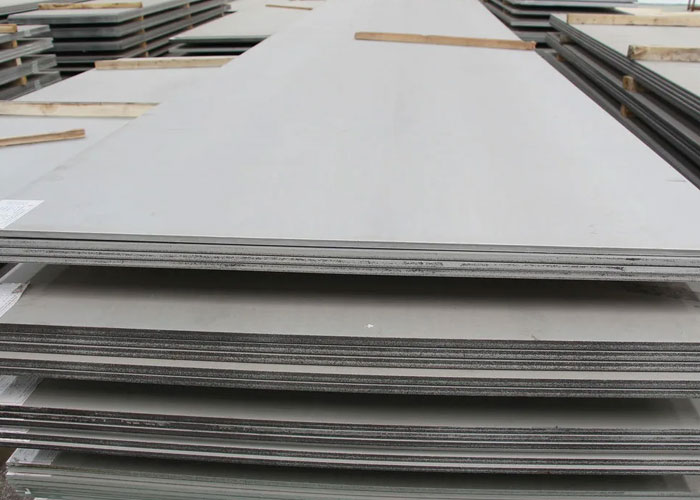

Hot Rolled Hastelloy Plates

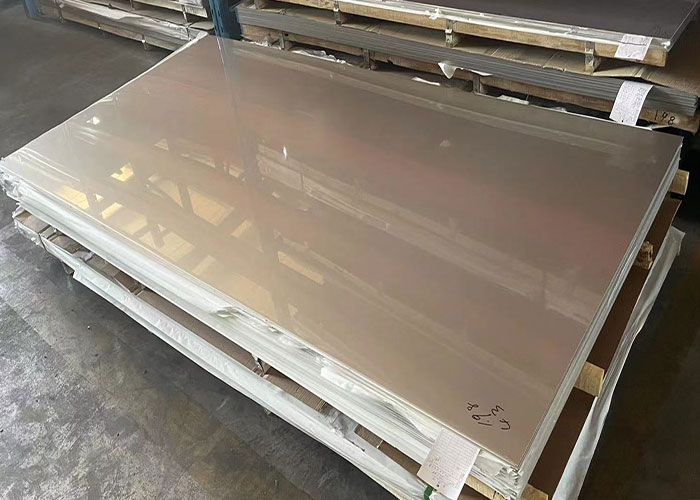

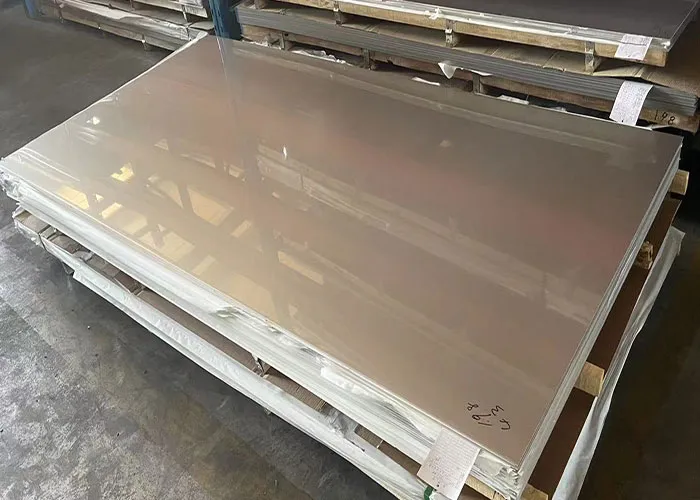

Cold Rolled Hastelloy Plates and Sheets
Hastelloy Plate Price
Hastelloy plate prices start from INR 3,600/kg in India, or $40-$75/kg internationally, depending on grade, thickness, and quantity
Hastelloy Plates Industrial Applications
Hastelloy plates are used in industries that deal with acids, chlorides, and high temperatures because they need strong nickel-alloy materials.
Chemical Processing
C-276 Hastelloy plates are used in applications like heat exchangers, reactor vessels, and distillation columns handling mixed acids.
Oil & Gas Production
In sour gas service and offshore environments, Hastelloy plates resist hydrogen sulphide, chlorides, and extreme conditions, ensuring long-term structural integrity.
Pollution Control & FGD
FGD scrubbers, stack liners, and ducting systems rely on C-276 plates to withstand hot, acidic flue gases and continuous corrosive exposure.
Pharmaceutical & Pulp & Paper
Hastelloy plates are used in bleaching systems and reactors because they resist chlorine-based chemicals and stay durable and reliable.
Hastelloy Plates vs Alternative Alloys
Compare Hastelloy plates with SS316, Inconel, and titanium to understand corrosion resistance, service suitability, and failure risk in harsh environments.
Hastelloy Plates vs SS316 Plates
This table compares Stainless Steel 316 plate and Hastelloy C-276 plate in chloride environments, focusing on their corrosion resistance and where each material is best used.
| Property / Condition | SS316 | Hastelloy C-276 |
|---|---|---|
| Corrosion Type | Pitting & Crevice Corrosion | Highly Resistant |
| Performance in Chlorides | Poor to Moderate | Excellent |
| Suitability (Chloride-Rich Environments) | Limited Use | Highly Suitable |
| Failure Risk | High in harsh chloride exposure | Very Low |
Hastelloy Plates vs Inconel Plates
The table below compares Inconel 600 andInconel 625 plates with Hastelloy plates in terms of high-temperature strength and resistance to corrosion in mixed acids.
| Property / Application | Inconel 600 / 625 | Hastelloy Plates |
|---|---|---|
| Primary Design Focus | High-Temperature Strength | Corrosion Resistance |
| Performance in Wet Corrosion | Moderate | Excellent |
| Mixed-Acid Service | Limited Suitability | Superior Performance |
| Chemical Processing Use | Conditional | Highly Preferred |
| Failure Risk (Acidic Media) | Higher | Lower |
Hastelloy Plates vs Titanium Plates
This table compares Titanium plates with Hastelloy C-276, showing how each resists chlorides and how they perform in both oxidising and reducing chemical environments.
| Property / Condition | Titanium | Hastelloy C-276 |
|---|---|---|
| Resistance to Chlorides | Excellent | Excellent |
| Resistance to Reducing Acids | Poor | Excellent |
| Resistance to Oxidising Media | Good | Excellent |
| Overall Corrosion Resistance | Moderate (Environment Dependent) | Outstanding |
| Suitability (Mixed Chemical Service) | Limited | Highly Suitable |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect super Hastelloy plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Edge and corner protection with plastic padding
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Plate Bundle Yard
Staging
Plate Bundle Edge
Protection
Wrapped Export-Ready
Bundles
We Export Worldwide
Sachiya Steel International supplies Hastelloy plates and nickel-based superalloys to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
