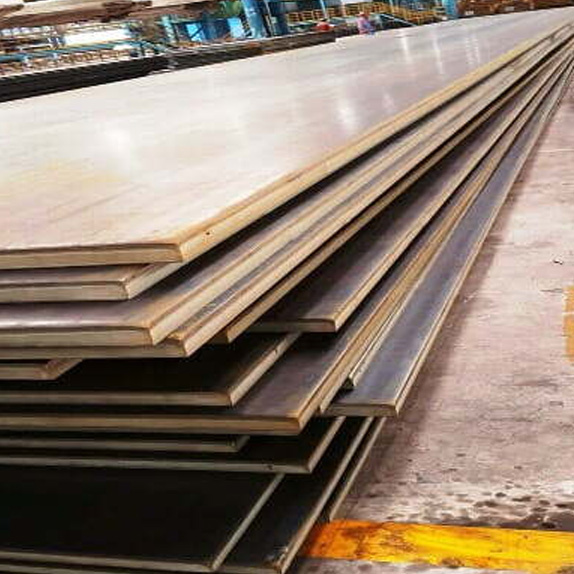

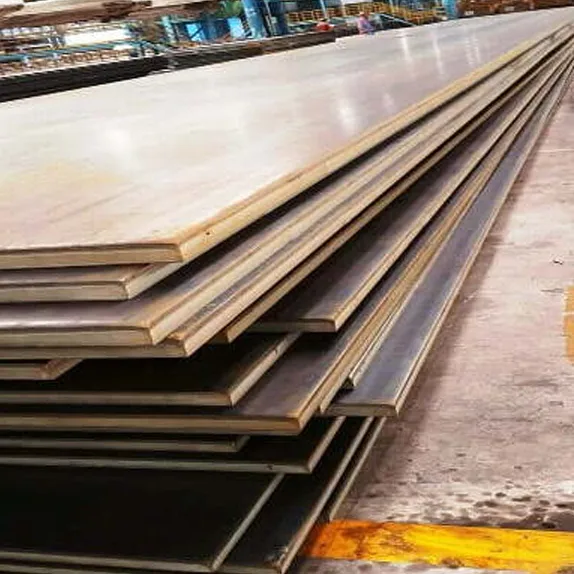

Mild Steel Sheets & Plates Specifications

The table below lists the primary specifications for MS sheets and plates, including applicable ASTM and international standards.

Parameter Details
Standard IS 2062
Thickness Range 0.5 mm to 150 mm (sheets up to 6 mm; plates 6 mm and above)
Standard Widths 1000, 1220, 1250, 1500, 2000, 2500 mm
Standard Lengths 2000, 2440, 2500, 3000, 6000 mm
Surface Finish Mill finish, HRPO, galvanised, colour coated
Edge Mill edge, slit edge, trimmed edge

Mild Steel Sheets & Plates Weight Chart

The table below gives reference weights for standard 4 x 8 ft (1220 x 2440 mm) sheets and plates.

Thickness Weight per Sheet/Plate
1 mm 23.6 kg
2 mm 47.2 kg
3 mm 70.8 kg
6 mm 141.6 kg
10 mm 236.0 kg
12 mm 283.2 kg
16 mm 377.6 kg
20 mm 472.0 kg
25 mm 590.0 kg

Sheet Sizes (Gauge & mm)

Mild steel sheets are available in thicknesses ranging from 0.5 mm to 6 mm, with the table below listing common gauge sizes, their metric equivalents, and standard sheet dimensions.

Gauge (US) Thickness (mm) Standard Sheet Size
24 Ga 0.6 mm 1220 x 2440 mm (4 x 8 ft)
20 Ga 0.9 mm 1220 x 2440 mm (4 x 8 ft)
18 Ga 1.2 mm 1220 x 2440 mm (4 x 8 ft)
16 Ga 1.5 mm 1220 x 2440 mm (4 x 8 ft)
14 Ga 1.9 mm 1250 x 2500 mm
12 Ga 2.7 mm 1250 x 2500 mm

Plate Sizes (mm & Inches)

Mild steel plates are available from 6 mm to 150 mm in thickness, with the table below covering common fractional sizes and standard stock dimensions.

Thickness (Inches) Thickness (mm) Standard Plate Size
1/4" 6.35 mm 1220 x 2440 mm (4 x 8 ft)
3/8" 9.52 mm 1220 x 2440 mm (4 x 8 ft)
1/2" 12.70 mm 1524 x 3048 mm (5 x 10 ft)
3/4" 19.05 mm 1524 x 3048 mm (5 x 10 ft)
1" 25.40 mm 1524 x 3048 mm (5 x 10 ft)

Mild Steel Sheets & Plates Price List

In India, mild steel plates usually cost ₹53-83 per kg. In the US, ASTM A36 plates start around $1.20-$1.50/kg. MS sheet and plate prices vary based on thickness, grade, surface finish, and how much you order. Hot-rolled material is cheaper than cold rolled for the same size. For an exact quote, contact Sachiya Steel International with your requirements.

Forms of Mild Steel Sheets & Plates

Mild steel sheets and plates are available in 5 forms. Each serves a different set of application requirements:

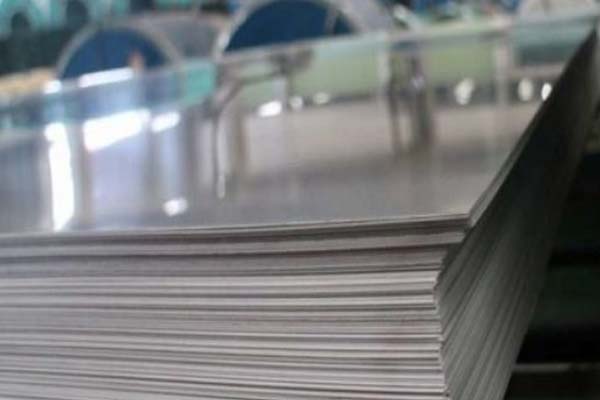

    Hot Rolled (HR)

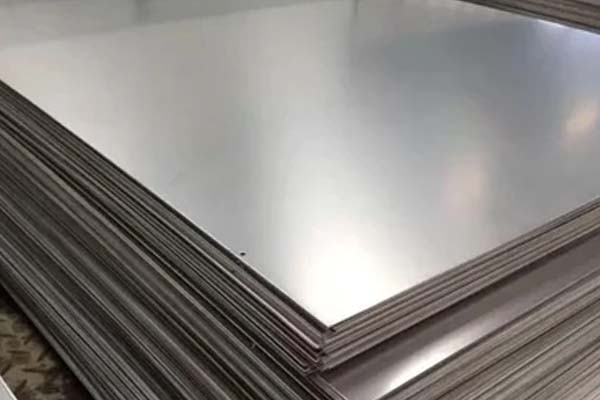

    Cold Rolled (CR)

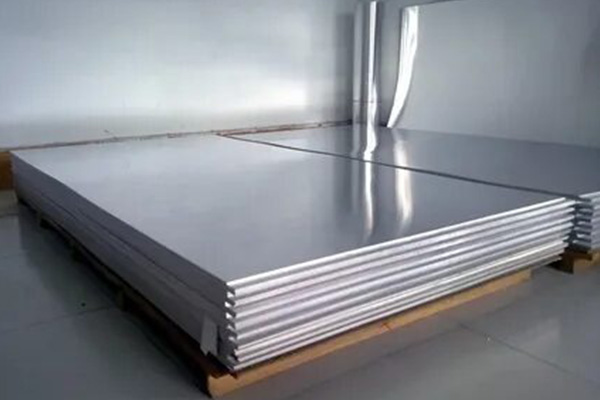

    HRPO (Hot Rolled Pickled & Oiled)

Mild Steel Sheets Grades

IS 2062 E250 Sheet & Plate

IS 2062 E250 is a mild steel grade with good weldability and formability. Used in structural fabrication, general engineering, and industrial applications where moderate strength and easy processing are required.

IS 2062 E350 Sheet & Plate

IS 2062 E350 is a higher-strength structural steel with better load-bearing capacity than E250. Used in heavy structures, bridges, and fabrication work where higher strength and durability are needed.

Get the Best Price on Mild Steel Sheets & Plates Request a Quote

Industrial Applications Mild Steel Sheets & Plates

Mild steel sheets and plates serve a wide range of fabrication and structural sectors. 3 primary application areas are listed below.

Construction & Structural Fabrication

MS plates form the backbone of building frames, bridges and storage tanks. MS plate is the standard choice for load-bearing structural fabrication.

Automotive & Manufacturing

Cold-rolled mild steel sheets offer the necessary surface finish and ease of shaping for automotive body panels, chassis parts, and machinery enclosures.

Shipbuilding & Heavy Industry

MS plates in thicker sections (12 mm to 50 mm) serve shipbuilding and railway wagon fabrication. Hot-rolled plate grades handle the weld-intensive nature of these applications.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Mild Steel Sheet and Plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end plate
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Sheet / Plate Bundle Yard Staging
Shipping packaging Plate Bundle Edge Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Mild Steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is the difference between Mild Steel Sheet and Plate?+
The primary difference is thickness. Mild steel sheets are 6 mm (1/4") or thinner. Plates are thicker than 6 mm. Sheets are often referenced by gauge number, while plates use millimetres or fractional inches.
What is the price of MS Plate per kg?+
MS plate prices range from approximately INR 53 to 83 per kg in the Indian market, and in the US the price is around $1.20-$1.50/kg. Final pricing depends on thickness, grade, finish and order quantity.
What is the price of the MS Plate 12 mm thick?+
MS plates in India typically run between ₹53 and 83 per kilogram, and in the international market, the price ranges around $0.50 – $0.58/kg. The final cost hinges on several factors: the plate's thickness, its grade, the type of finish, and the quantity purchased.
What are Mild Steel Plates used for?+
Mild steel plates are commonly used in buildings, bridges, tanks, ships, and railway wagons because they are strong and easy to weld.
What are standard MS Sheet and Plate Sizes?+
Standard sizes include 4 x 8 ft (1220 x 2440 mm) and 5 x 10 ft (1524 x 3048 mm). Sheet thickness ranges from 0.5 mm to 6 mm. Plate thickness goes from 6 mm to 150 mm. Custom cut-to-size is available.
How do you calculate Mild Steel Sheet weight?+
Multiply thickness in mm by width in meters by length in meters by 7.85 to get weight in kilograms.
What is the difference between hot-rolled and cold-rolled Mild Steel Sheets?+
Hot-rolled sheets have a rougher surface and are affordable. Cold-rolled sheets are smoother, more precise and slightly expensive.
What standards apply to Mild steel sheets and plates?+
The main standard that covers mild steel plates and hot or cold rolled sheets is IS 2062.
