Seamless Pipe Specifications
The table below lists the general specifications for seamless pipes available in our inventory.
| Parameter | Details |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Mild Steel |
| Size/OD | 1/8" to 24" NB (10.3 mm to 609.6 mm OD) |
| Wall Thickness | SCH 5 to SCH XXS per ASME B36.10 |
| Length | 6 m, 12 m standard; custom cut lengths available |
| End Type | Plain End (PE), Beveled End (BE), Threaded (BSP/NPT) |
| Finish | Mill Finished, Black, Galvanised, Polished (SS) |
| Form | Hot-Finished Seamless (HFS), Cold-Drawn Seamless (CDS) |
| Testing | Hydrostatic, NDT, Ultrasonic Testing per applicable standard |
Seamless Pipe Sizes
The table below has all the information you need to do a full examination of the usual outside diameters and wall thicknesses.
| Dimension | Range and Standard Details |
|---|---|
| Nominal Bore (NB) | 1/8" NB to 24" NB |
| Outer Diameter (OD) | 10.3 mm to 609.6 mm |
| Wall Thickness | SCH 5 to SCH XXS |
| Standard Lengths | 6 metres and 12 metres |
| Customisation | Cut-to-length available on request |
| Design Standard | ASME B36.10 |
Seamless Pipe Dimension & Weight Chart
The chart below shows outside diameter, wall thickness, and weight per metre for commonly ordered NB pipe sizes across three schedules.
| NB (in) | OD (mm) | SCH 40 WT (mm) | SCH 40 Wt (kg/m) | SCH 80 WT (mm) | SCH 80 Wt (kg/m) | SCH 160 WT (mm) | SCH 160 Wt (kg/m) |
|---|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 2.77 | 1.27 | 3.73 | 1.62 | 4.78 | 1.95 |
| 1" | 33.4 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 |
| 2" | 60.3 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.11 |
| 4" | 114.3 | 6.02 | 16.07 | 8.56 | 22.32 | 13.49 | 33.54 |
| 6" | 168.3 | 7.11 | 28.26 | 10.97 | 42.56 | 18.26 | 67.56 |
| 8" | 219.1 | 8.18 | 42.55 | 12.70 | 64.64 | 23.01 | 111.27 |
| 12" | 323.8 | 10.31 | 79.73 | 17.48 | 132.04 | 33.32 | 238.76 |
Seamless Pipe Schedule Chart
Refer to the table below to understand the wall thickness and application requirements for different seamless pipe schedule numbers.
| Schedule Number | Pipe Designation | Primary Applications |
|---|---|---|
| SCH 40 | Standard (STD) | General-purpose and moderate-pressure service. |
| SCH 80 | Extra Strong (XS) | Higher pressure chemical processing lines. |
| SCH 160 | High Pressure | High-pressure power plant piping systems. |
| SCH XXS | Double Extra Strong | Extreme-pressure critical systems requiring maximum thickness. |
Seamless Pipe Price
Price range for seamless pipes is ₹80-₹350 per kilogram in India and $1.10-$4.50 per kg in the US. Carbon steel is the cheapest, whereas stainless and alloy steels cost more depending on thickness and order volume. Indicative pricing varies significantly based on grade, specification (ASTM/API), size, and quantity. Contact us for project-specific quotations
Seamless Pipe Grades
The table below provides a full description of the standard material grades and their particular qualities.
Carbon Steel Seamless Pipes
ASTM A106/A53 pipes provide exceptional durability for high-temperature and high-pressure refinery service, creating a dependable and cost-effective industrial piping solution.
Stainless Steel Seamless Pipe
These 300-series grades offer exceptional corrosion resistance and hygiene, serving chemical processing, food preparation, and hazardous maritime environments perfectly.
Alloy Steel Seamless Pipes
These chromium and molybdenum-enriched tubes power difficult thermal conditions and high-pressure steam generation in power plants where standard carbon steel fails.
MS Seamless Pipes (Mild Steel)
A low-carbon variant valued for its ductility and ease of fabrication, which is widely used in low-pressure fluid conveyance and general mechanical applications throughout domestic infrastructure.
Seamless Pipe Types
Listed below are the types of seamless pipe that we provide, categorised by the material and manufacturing procedure.

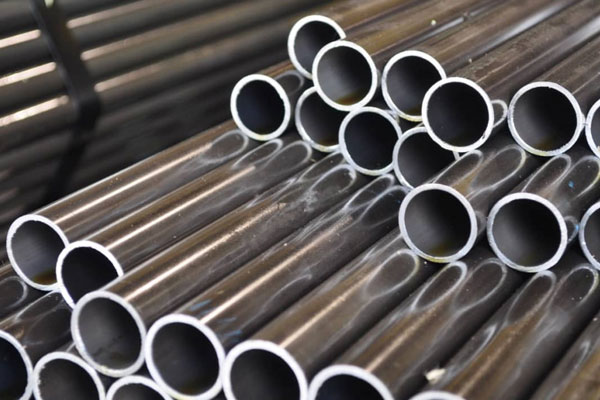

Cold Drawn Seamless Pipe

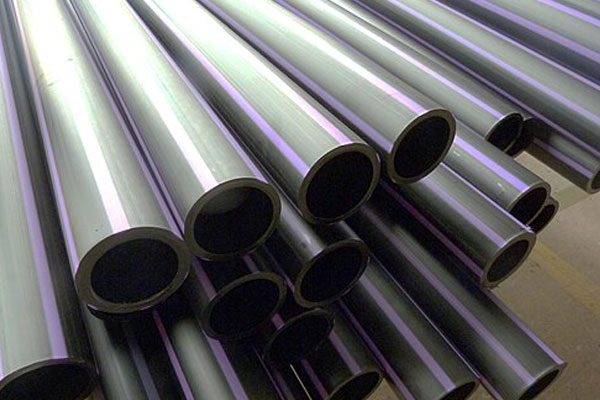

Hot Rolled Seamless Pipe
Seamless Pipe Industrial Applications
Seamless pipe finds use across 6 major industrial sectors where pressure, temperature, or corrosion resistance is critical.
Oil & Gas Industry
Seamless carbon steel pipe and API 5L line pipe transport crude oil, natural gas, and refined products in upstream and midstream operations.
Power Generation
Thermal power plant boiler tubes and superheater piping use alloy steel seamless pipe (ASTM A335 P22, P91) for high-temperature performance.
Chemical & Petrochemical Processing
TP316L and TP321 stainless seamless pipe is used in refineries and chemical plants to transport corrosive acids, solvents, and process fluids.
Construction & Structural
Structural seamless steel pipe per IS 3589 and EN 10210 supports load-bearing columns, piling, and mechanical frameworks.
Boilers & Heat Exchangers
Seamless tubes conforming to ASTM A179 and ASTM A192 are specified for heat exchanger bundles and high-pressure boiler circuits.
Hydraulic & Mechanical Systems
Cold-drawn seamless pipe with tight OD and ID tolerances serves hydraulic cylinders, pneumatic systems, and accurate mechanical assemblies.
Seamless Pipe vs Welded Pipe
The table below contrasts seamless and welded (ERW) pipes across essential criteria to assist consumers in selecting the appropriate product form.
| Parameter | Seamless Pipe | Welded (ERW) Pipe |
|---|---|---|
| Weld Seam | None | Longitudinal weld present |
| Strength | Uniform throughout | Slightly weaker at weld zone |
| Pressure Rating | Higher | Lower for equivalent size |
| Surface Finish | Rougher (mill finish) | Smoother |
| Dimensional Tolerance | Wider | Tighter |
| Cost | Higher | Lower |
| Availability | Limited to 24" NB typically | Available in larger diameters |
| Best For | High-pressure, high-temperature, critical service | Structural, low-pressure, general purpose |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect seamless pipes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Plastic end caps on threaded and plain-end pipes
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Pipe Bundle Yard Staging
Container End-Cap Protection
Wrapped Export-Ready Bundles
We Export Worldwide
Sachiya Steel International supplies seamless pipes to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
