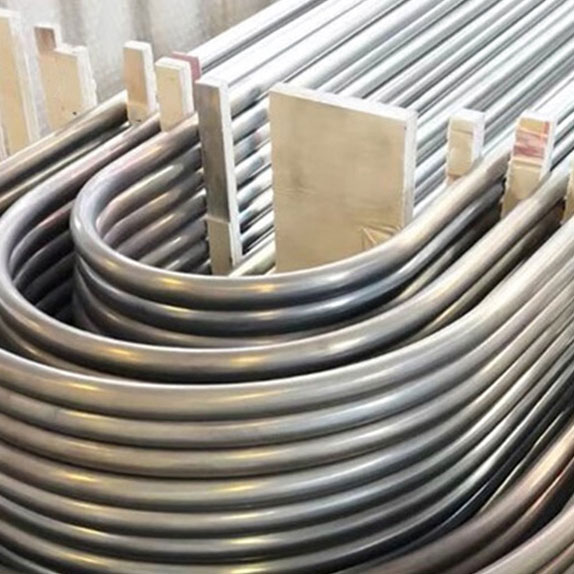

Stainless Steel 904L Heat Exchanger Tubes Manufacturer & Supplier

Stainless Steel 904L is a super-austenitic grade designated UNS N08904 under ASTM A213 / ASME SA-213 and ASTM B677 / ASME SB-677. The alloy contains 19.0–23.0% chromium, 23.0–28.0% nickel, 4.0–5.0% molybdenum, and 1.0–2.0% copper, with carbon limited to 0.020% max. This composition gives 904L heat exchanger tubes strong resistance to reducing acids, including sulphuric and phosphoric acid, along with solid chloride pitting performance. Minimum tensile strength is 490 MPa (71 ksi), yield strength is 215 MPa (31 ksi), and elongation is 35%.

Sachiya Steel International is a Stainless Steel 904L heat exchanger tube manufacturer, supplier, and exporter in Mumbai, India. With more than 20 years of industry experience, we maintain a ready stock inventory of 1,500 to 2,000 metric tons and supply to chemical processing, oil and gas, petrochemical, pharmaceutical, and pulp and paper sectors worldwide.

Available forms of these heat exchanger tubes include seamless, welded, U-bent, finned, and coil. OD range spans 6.0 mm to 219.1 mm and wall thickness from 0.4 mm to 12.7 mm. Cut-to-length options go up to 26 metres. The alloy's W.Nr. 1.4539 (EN/DIN) equivalent is widely specified across European procurement.

We're ISO 9001, ISO 14001, and ISO 45001 certified. All shipments include mill test certificates per EN 10204 3.1. This page covers:

Specifications
Pricing
Chemical Composition
Mechanical Properties
Equivalent Grades
Tube Types
Industrial Applications
904L vs 254 SMO Comparison
Shipping and Packaging
FAQs

ASTM A213 / ASME SA-213 Stainless Steel 904L Heat Exchanger Tube Specifications

SS 904L heat exchanger tubes specifications, including standard, dimensions, forms, types, and more, are covered in the table below:

Property	Detail
Standard	ASTM A213 / ASME SA-213, ASTM B677 / ASME SB-677
OD Range	6.0-219.1 mm (0.24"-12")
Wall Thickness	0.4-12.7 mm
Length	Single Random, Double Random, Cut-to-Length (up to 26 m)
Form	Seamless, Welded (ERW), U-Bent, Finned, Coil
Delivery Condition	Solution Annealed and Pickled
End Type	Plain End, Bevelled End

Stainless Steel 904L Heat Exchanger Tube Sizes

904L heat exchanger tubes are stocked across a wide dimensional range for shell-and-tube and condenser applications.

Parameter	Seamless Tubes	Welded (ERW) Tubes
OD Range	6.0-219.1 mm (1/2"-12")	6.35-114.3 mm (1/2"-12")
Wall Thickness	0.4-12.7 mm	0.8-12.7 mm
Length	Single, Double Random & Cut Length	Up to 26 metres
Shapes	Round, Straight, U-Shape, Coiled	Round, Straight

Stainless Steel 904L Heat Exchanger Tubes Price

Stainless Steel 904L heat exchanger tube prices range from approximately ₹200–500/kg in India and USD 800–30,000 per piece internationally. Pricing depends on OD, wall thickness, length, quantity, surface finish, and tube type. Contact Sachiya Steel International for a current quote.

Chemical Composition of 904L Heat Exchanger Tubes

Per ASTM A213 / ASME SA-213, the chemical composition of 904L (UNS N08904) heat exchanger tubes is specified below.

CarbonC

0.020% max

ManganeseMn

2.00% max

PhosphorusP

0.045% max

SulphurS

0.035% max

SiliconSi

1.00% max

ChromiumCr

19.0-23.0%

NickelNi

23.0-28.0%

MolybdenumMo

4.0-5.0%

CopperCu

1.0-2.0%

Mechanical Properties of Stainless Steel 904L Heat Exchanger Tubes

904L heat exchanger tubes per ASTM A213 meet the following mechanical property requirements in the solution-annealed condition.

490 / 71

MPa / ksi (min)

Tensile Strength

215 / 31

MPa / ksi (min)

Yield Strength (0.2% Offset)

35%

(min)

Elongation

Property	Value
Tensile Strength (min)	490 MPa (71 ksi)
Yield Strength, 0.2% Offset (min)	215 MPa (31 ksi)
Elongation (min)	35%

Request a Quote for SS 904L Heat Exchanger Tubes Request a Quote

Equivalent Designations

904L carries different designations across international standards. Some of its equivalent designations are covered in the table below:

Standard	Designation
UNS	N08904
EN / DIN	W.Nr. 1.4539 / X1NiCrMoCu25-20-5
JIS (Japan)	SUS 890L
GB (China)	00Cr20Ni25Mo4.5Cu

Applications of 904L Heat Exchanger Tubes

904L heat exchanger tubes find use across 4 major industry sectors where aggressive corrosion environments demand a super-austenitic grade.

Chemical Processing Industry

Sulphuric acid coolers, phosphoric acid evaporators, and acetic acid condensers rely on 904L tubing.

Oil & Gas and Petrochemical

Refinery overhead condensers and sour gas coolers operate in chloride-rich conditions. 904L tubes resist pitting and stress corrosion cracking in these environments.

Pharmaceutical and Food Processing

Clean-service heat exchangers in pharmaceutical reactors and food-grade pasteurisers need corrosion-free surfaces. Low carbon content prevents sensitisation during welding.

Pulp and Paper Industry

Bleach plant heat exchangers and chlorine dioxide washers expose tubes to highly oxidising conditions. 904L's chromium-nickel-molybdenum balance handles this type of chemical attack.

Get Best Price on 904L Heat Exchanger Tubing Request a Quote

904L vs 254 SMO (6Mo) Heat Exchanger Tubes

The table below provides a clear comparison between 904L and 254 SMO (Mo) heat exchanger tubes:

Property / Aspect	904L Heat Exchanger Tubes	254 SMO (6Mo) Heat Exchanger Tubes
Material Type	Super austenitic stainless steel	6Mo super austenitic stainless steel
Molybdenum Content	4.0-5.0%	~6.0%
Cost	Lower material cost	Higher material cost
Corrosion Resistance (General)	Excellent resistance to reducing acids	Superior resistance in aggressive environments
Chloride Pitting Resistance	Moderate (PREN ~36)	High (PREN ~43)
Suitable Environments	Sulphuric acid, phosphoric acid applications	Seawater, chloride-heavy environments
Performance Advantage	Cost-effective for acid service	Better for high chloride and marine exposure

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect SS 904L heat exchanger tubes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Tube Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What Specifications cover SS 904L Heat Exchanger Tubes?+

SS 904L heat exchanger tubes are covered by ASTM A213 / ASME SA-213 and ASTM B677 / ASME SB-677 for seamless form. Welded versions fall under ASTM A249 and ASTM B674.

What Sizes are Available for 904L Heat Exchanger Tubes?+

904L heat exchanger tubes come in OD range 6.0 mm to 219.1 mm, wall thickness 0.4 mm to 12.7 mm, in single random, double random, and cut-to-length up to 26 metres.

What is the Price of Stainless Steel 904L Heat Exchanger Tubes?+

Prices of SS 904L heat exchanger tubes range from ₹200–500/kg in India and USD 800–30,000 per piece internationally. Final prices depend on size, quantity, and specification.

What is the Difference between Seamless and Welded 904L Heat Exchanger Tubes?+

Seamless 904L tubes (ASTM B677) have no weld seam, offering higher pressure ratings and uniform grain structure. Welded tubes (ASTM A249/B674) cost less and suit moderate-pressure service.

Can 904L Heat Exchanger Tubes be U-Bent?+

Yes. 904L tubes can be U-bent for shell-and-tube exchangers. Typical bend radii range from 1.5x to 3x the tube OD, per TEMA standards.

What Industries Use 904L Heat Exchanger Tubes?+

904L heat exchanger tubes serve chemical processing (sulphuric/phosphoric acid), oil and gas, petrochemical, pharmaceutical, pulp and paper, and flue gas desulphurisation plants.

What is the Maximum Operating Temperature for 904L Heat Exchanger Tubes?+

904L heat exchanger tubes can operate continuously up to 450°C (840°F). Beyond this threshold, sensitisation risk increases and corrosion resistance drops.

How Does 904L Compare to 316L for Heat Exchanger Tube Service?+

904L offers significantly better reducing acid resistance than 316L, with 23–28% Ni vs 10–14%, 4–5% Mo vs 2–3%, and added copper. 904L is selected where 316L fails in aggressive environments.
