Hastelloy is a nickel-molybdenum-chromium alloy made for severe chemical corrosion. Sachiya Steel International supplies one grade, Hastelloy C276 (UNS N10276), as seamless pipe, welded pipe and plate, with a mill test certificate for every order. It belongs with Inconel and Monel among our nickel alloys. The first table below gives the standard and sizes of each product, and the second gives the composition and strength of the grade.
Hastelloy C276 Pipe and Plate Standards
| Product | Standard | Size range | Schedule or sheet size |
|---|---|---|---|
| Hastelloy pipe | ASTM B622 / ASME SB-622 seamless, ASTM B619 / ASME SB-619 welded | Seamless 1/8" NB to 12" NB, welded 6" NB to 48" NB | SCH 5S, 10S, 40S, 80S, 160, XXS |

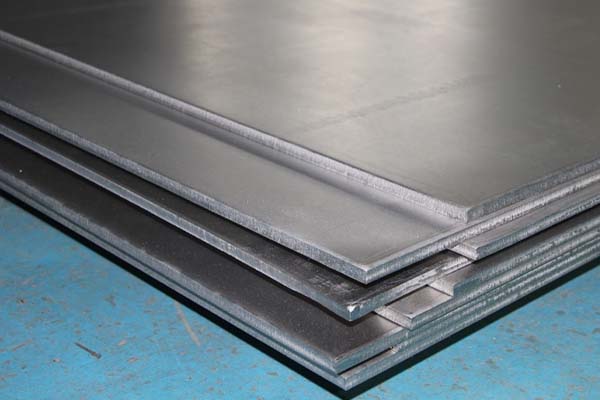

| Hastelloy plate | ASTM B575 / ASME SB-575 | 4.76 mm to 100 mm thick | Width 1000 mm to 2500 mm, length 2000 mm to 6000 mm |
| Hastelloy C276 pipe | ASTM B622 / ASME SB-622 seamless, ASTM B619 / ASME SB-619 welded | 1/8" to 24" NPS: seamless to 6", welded to 24" | Seamless SCH 5S to XXS, welded SCH 5S to 80 |
| Hastelloy C276 plate | ASTM B575 / ASME SB-575 | 4.8 mm to 76.2 mm thick (3/16 inch to 3 inch) | Width up to 2000 mm, length up to 6000 mm |
Hastelloy C276 Composition and Strength
| Property | Value |
|---|---|
| Designations | UNS N10276, W.Nr 2.4819, EN NiMo16Cr15W |
| Nickel | About 57% |
| Molybdenum | 15 to 17% |
| Chromium | 14.5 to 16.5% |
| Tungsten | 3 to 4.5% |
| Tensile strength, minimum | 690 MPa (100 ksi) |
| Yield strength, minimum | 283 MPa (41 ksi) |
| Elongation, minimum | 40% |
| Density | 8.89 g/cm3 |
| Supply condition | Solution annealed |
| Fittings and flanges | Fittings to ASTM B366, flanges to ASTM B564 |
Hastelloy C276 Against Other Alloys
Against stainless steel 316C276 carries 15 to 17% molybdenum against 2 to 3% in SS 316, and about 57% nickel against 10 to 14%. It is the correct choice when chloride or acid exposure goes beyond the limits of stainless steel, and it costs more.
Against Inconel 625For corrosive chemical piping C276 does better, with 15 to 17% molybdenum against 8 to 10% in Inconel 625. For high-temperature service Inconel alloys are preferred: the maximum service temperature is 982°C (1800°F) for Inconel 625 and 677°C (1250°F) for C276.
Against Hastelloy C22C22 has more chromium (20.0 to 22.5%) and less molybdenum (12.5 to 14.5%). C276 is rated higher in reducing acids and C22 in oxidising acids. The grade we supply is C276.
Welding on siteYes, C276 can be welded. Its very low carbon and silicon content allows welding without post-weld heat treatment in most applications.
Acids, seawater and wet chlorineC276 plate withstands hydrochloric acid up to 20% at room temperature. Its 3.0 to 4.5% tungsten helps it resist localised attack from chloride contamination, seawater and wet chlorine gas.
