Titanium Grade 5 Plates Manufacturer, Supplier & Stockist

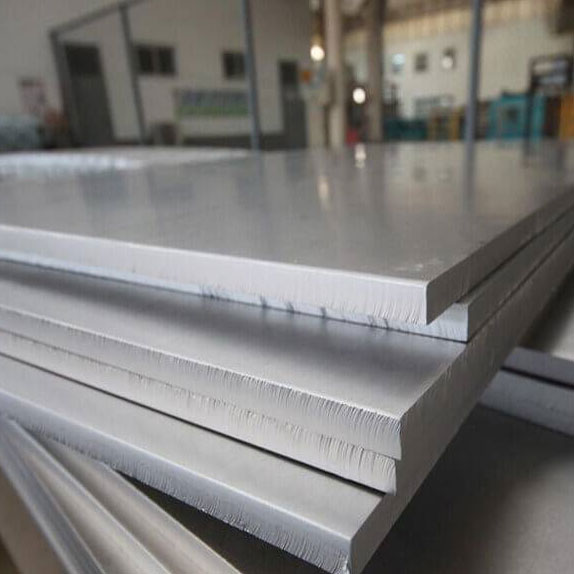

Titanium Grade 5 plates are Ti-6Al-4V alloy sheets with high strength, low weight, and good corrosion resistance for engineering uses. These ASTM B265 / ASME SB-265 Grade 5 plates contain 5.5–6.75% aluminium and 3.5–4.5% vanadium, making them about three times stronger than commercially pure titanium. With a tensile strength of at least 895 MPa (130 ksi) and a low density of 4.43 g/cm³, Ti-6Al-4V plates have one of the best strength-to-weight ratios of any structural metal.

Sachiya Steel International is a trusted Titanium Grade 5 plate manufacturer and supplier in Mumbai, India, with over 20 years of experience in titanium alloys. We stock and export Ti-6Al-4V plates (UNS R56400), the most common titanium alloy for commercial and aerospace use.

We supply Titanium Grade 5 plates from 0.5 to 100 mm thick, up to 2500 mm wide and 6000 mm long. Custom sizes and waterjet cutting are available on request. Our plates meet AMS 4911, AMS 4907, MIL-T-9046, and ASTM F1472 standards for aerospace and medical use. As an ISO 9001, 14001, and 45001 certified supplier, we keep 1,500–2,000 metric tons in stock and provide EN 10204/3.1B mill test certificates with every shipment.

This page covers:

Specifications
Pricing
Chemical Composition
Mechanical Properties
Equivalent Designation
Industrial Applications
Shipping & Packaging
Frequently Asked Questions

Titanium Grade 5 Plates Specifications

The table below lists the key specifications of Titanium Grade 5 Plates, including standards, sizes, finishes, and applicable conditions.

Parameter	Value
Standard	ASTM B265 / ASME SB-265
Grade	Grade 5 (Ti-6Al-4V)
Thickness	0.5 mm to 100 mm (0.020" to 4")
Width	Up to 2500 mm (96")
Length	Up to 6000 mm (240"), custom lengths available
Finish	Mill Finish, Pickled, Polished, Brushed
Form	Hot Rolled, Cold Rolled, Forged
Condition	Annealed, Solution Treated and Aged (STA)

Titanium Grade 5 Plates Sizes

We stock Titanium Grade 5 plates in many different thicknesses, widths, and lengths. Custom sizes and waterjet or plasma cutting to specific shapes are available on request.

Thickness (mm)	Thickness (inches)	Width (mm)	Length (mm)
0.5 to 3.0	0.020" to 0.125"	Up to 1000	Up to 3000
3.0 to 12.0	0.125" to 0.500"	Up to 1500	Up to 4000
12.0 to 50.0	0.500" to 2.000"	Up to 2000	Up to 6000
50.0 to 100.0	2.000" to 4.000"	Up to 2500	Up to 6000

Titanium Grade 5 Plates Price

Titanium Grade 5 plates usually cost about Rs 2,500–6,500 per kg in India and $30–80 per kg in USD. The price depends on thickness, width, length, order size, surface finish, and condition (annealed or STA). Thinner plates under 3 mm cost more because of extra cold rolling. Contact us for the latest Titanium Grade 5 plate prices.

Titanium Grade 5 Plates Chemical Composition

Titanium Grade 5 (Ti-6Al-4V, UNS R56400) contains aluminium and vanadium as primary alloying elements. Below are the details.

Titanium Ti

Balance

Aluminium Al

5.50 – 6.75%

Vanadium V

3.50 – 4.50%

Iron Fe

Max 0.40%

Oxygen O

Max 0.20%

Carbon C

Max 0.08%

Nitrogen N

Max 0.05%

Hydrogen H

Max 0.015%

Titanium Grade 5 Plates Mechanical Properties

Ti Gr 5 Plates deliver high tensile and yield values at low density, as explained in detail in the table below.

895

MPa min (130 ksi)

Tensile Strength

828

MPa min (120 ksi)

Yield Strength

10%

(min)

Elongation

4.43

g/cm³

Density

Property	Value	Unit
Tensile Strength (min)	895 (130)	MPa (ksi)
Yield Strength, 0.2% Offset (min)	828 (120)	MPa (ksi)
Elongation (min)	10	%
Density	4.43	g/cm³

Request a Quote for Titanium Grade 5 Plates Request a Quote

Titanium Grade 5 Plates Equivalent Grades

Titanium Grade 5 carries different designations across international standards. All refer to the same Ti-6Al-4V alpha-beta alloy composition.

Country / Standard	Designation
USA (ASTM)	ASTM B265 Grade 5
USA (ASME)	ASME SB-265 Grade 5
USA (UNS)	UNS R56400 (standard) / UNS R56401 (ELI)
USA (AMS)	AMS 4911 (sheet/plate)
USA (Military)	MIL-T-9046
Europe (W.Nr.)	3.7164 (annealed)
China (GB)	GB/T 3621 TC4
Russia (GOST)	VT6
Japan (JIS)	JIS H 4600 Class 60 / TP340H
ISO (Medical)	ISO 5832-3

Titanium Grade 5 Plates Industrial Applications

Titanium alloy plates find use in 4 key industries. The combination of high strength, low density, and corrosion resistance makes Grade 5 plates suitable for the following sectors.

Aerospace & Defense

Ti-6Al-4V Grade 5 plates are used as structural parts, bulkheads, and fasteners in commercial and military aircraft. This alloy stays strong at temperatures up to 400°C.

Medical & Surgical Implants

Grade 5 titanium plates that meet ASTM F1472 and ISO 5832-3 are used in bone implants, spine surgeries, and dental connectors.

Marine & Chemical Processing

6Al-4V titanium plates resist seawater corrosion, chloride pitting, and crevice attack. They are commonly used for heat exchanger plates, propeller shafts, and chemical reactor linings.

Motorsport & Automotive

Titanium Gr 5 plates are used for exhaust systems, connecting rods, suspension springs, and valve retainers in motorsport. Compared to steel parts, they can reduce weight by about 40–45% while keeping equal or higher strength.

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect titanium gr.5 plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Edge and corner protection with plastic padding
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Plate Bundle Yard Staging

Plate Bundle Edge Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Titanium products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions:

What is the cost of Titanium Grade 5 Plates? +

Titanium Grade 5 plate prices typically range from approximately Rs 2,500 to Rs 6,500 per kg in India and $30 to $80 per kg USD. Aerospace-certified (AMS 4911) plates cost more than standard ASTM B265 material. Contact Sachiya Steel International for a current quotation.

Which is better for Plates, Titanium Grade 2 or Grade 5? +

Grade 5 (Ti-6Al-4V) plates offer nearly three times the tensile strength of Grade 2 plates (895 MPa versus 345 MPa). Grade 5 isn't cold formable, though. Select Grade 5 for high-strength structural applications and Grade 2 where cold forming and lower cost are priorities.

What are the disadvantages of Titanium Grade 5 Plates? +

Titanium Gr.5 Plates are not cold formable and require hot forming at 870 to 980 degrees C for bends in thicker sections. The alloy also has a tendency to gall in wear applications and costs more than commercially pure grades.

What ASTM standard covers Titanium Grade 5 Plates? +

ASTM B265 / ASME SB-265 is the standard specification for titanium and titanium alloy strip, sheet, and plate. AMS 4911 and AMS 4907 cover aerospace-grade Ti64 Plates. MIL-T-9046 applies to military procurement.

What industries use Titanium Grade 5 Plates? +

Ti-6Al-4V Grade 5 plates are used in aerospace (structural and turbine parts), medical (surgical implants per ISO 5832-3), marine (seawater equipment), chemical processing, and motorsport.

What thickness of Titanium Grade 5 Plates do you supply? +

Sachiya Steel International supplies Titanium Grade 5 plates from 0.5 mm to 100 mm thick, up to 2500 mm wide and 6000 mm long. Custom sizes are also available on request.

Can Titanium Grade 5 Plates be welded? +

Ti-6Al-4V plates can be welded using TIG (GTAW) with proper argon gas shielding. The weld area must be completely protected from air to keep the material strong and prevent it from becoming brittle.

How do you cut Titanium Grade 5 Plates? +

Titanium Grade 5 plates can be cut with waterjet, laser, plasma, or a bandsaw with carbide-tipped blades. For thicker plates, waterjet cutting is best because it does not create a heat-affected zone.
