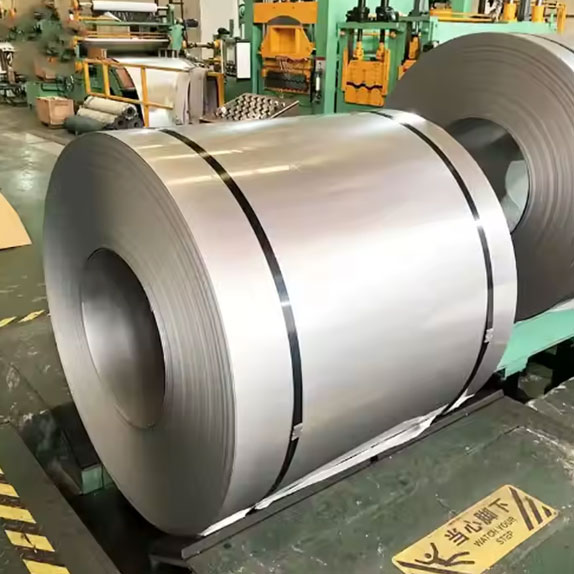

Stainless Steel 316 Coils (HR & CR) | Manufacturer & Supplier

Stainless Steel 316 coils (HR & CR) are austenitic flat-rolled products manufactured to ASTM A240 / ASME SA-240, carrying the UNS designation S31600. The alloy contains 16.0–18.0% chromium, 10.0–14.0% nickel, and 2.00–3.00% molybdenum. Molybdenum is the element that separates 316 from the standard 304 grade, providing notably better resistance to chloride pitting and crevice attacks. Minimum tensile strength is 515 MPa (75 ksi), yield strength is around 205 MPa (30 ksi), and elongation reaches 35%. In the metals trade, grade 316 is often called marine grade stainless steel.

Sachiya Steel International, established in 2005, is a leading Mumbai-based manufacturer and supplier of 316 hot-rolled and cold-rolled coils. With ISO 9001, 14001, and 45001 certifications, we leverage twenty years of expertise to provide premium quality. We maintain a massive 1,500 to 2,500-metric-ton inventory, ensuring immediate global shipping for all industrial stainless steel requirements.

Available in thicknesses from 0.3 mm to 12.0 mm, our stock covers hot rolled and cold rolled forms. We offer surface treatments like No.1, 2B, 2D, BA, No.4, and mirror (No.8) for widths up to 2,500 mm. Upon request, we provide custom slitting. To guarantee that the necessary standards are met, each cargo includes seaworthy export packaging and EN 10204 3.1/3.2 mill test certificates. This ensures your 10 MT coils arrive safely and with full, documented chemical and mechanical traceability.

This page covers:

Specification
Price guidance
Chemical composition
Mechanical properties
Equivalent Designations
Forms (HR & CR)
Industrial applications
SS 316 vs SS 304 comparison
FAQs

Stainless Steel 316 Coils (HR & CR) Specifications

Refer to the following tables for the standard specifications, including dimensional specifications and weight capacities of our SS 316 coils.

Property	Specification / Details
Standard	ASTM A240 / ASME SA240, EN 10088-2, JIS G4305
Thickness (CR)	0.3 mm to 3.0 mm
Thickness (HR)	3.0 mm to 12.0 mm
Width	600mm, 1000mm, 1219mm, 1250mm, 1500mm, 2000mm, 2500mm
Length	Continuous Coil (Custom Slitting/Cut-to-length available)
Standard ID (Inner Diameter)	508 mm (20") or 610 mm (24")
Finish (CR)	2B, BA, No. 4, No. 8 (Mirror), Hairline
Finish (HR)	No. 1 (Annealed & Pickled)
Form	HR Coils, CR Coils, Slit Coils, Shim Coils, Foils
Condition	Annealed, Soft, Half-Hard, Full Hard

Stainless Steel 316 Coil Dimensional Range

We offer extensive thickness and width options, ensuring precise dimensions for diverse industrial stainless steel applications.

Parameter	Cold Rolled (CR) Range	Hot Rolled (HR) Range
Thickness	0.3 mm – 3.0 mm	1.5 mm – 12.0 mm
Standard Widths	600, 1000, 1219, 1250, 1500 mm	1000, 1250, 1500, 2000, 2500 mm
Slitting Widths	10 mm – 600 mm (Custom)	50 mm – 1000 mm (Custom)
Inner Diameter (ID)	508 mm / 610 mm	610 mm

Stainless Steel 316 Coil Weight and Tolerance Specifications

Our coils maintain strict weight accuracy and tight tolerances, meeting rigorous international quality standards for manufacturing.

Specification	Details / Capacity
Maximum Coil Weight	Up to 10 MT (Metric Tons)
Outer Diameter (OD)	1000 mm to 1800 mm (Based on weight)
Thickness Tolerance	ASTM A480 / ASME SA480
Width Tolerance	±0.1 mm to ±0.5 mm (Based on slitting)
Edge Condition	Slit Edge or Mill Edge

Available Surface Finishes by Form

For Hot Rolled (HR) Coils:
- No. 1
For Cold Rolled (CR) Coils:
- 2B
- 2D
- BA (Bright Annealed)
- No. 4 (Brushed)
- No. 8 (Mirror)

Stainless Steel 316 Coil Price List

SS 316 coil prices in India currently range from approximately Rs 200 to Rs 350 per kg, and in the USA, they are around $4.60 and $5.20 per kg, depending on form (HR or CR), thickness, width, surface finish, and order quantity. CR coils cost more than HR due to additional processing. Global nickel and molybdenum market rates directly affect pricing; quotes are valid for limited periods. Contact our sales team for a current quotation based on your exact requirements.

Chemical Composition of Stainless Steel 316 Coils

The table below lists the chemical composition of ASTM A240 Type 316 (UNS S31600) stainless steel coils per ASTM A240 / ASME SA-240.

Carbon (C)C

0.08 max

Manganese (Mn)Mn

2.00 max

Phosphorus (P)P

0.045 max

Sulphur (S)S

0.030 max

Silicon (Si)Si

0.75 max

Chromium (Cr)Cr

16.0–18.0

Nickel (Ni)Ni

10.0–14.0

Molybdenum (Mo)Mo

2.00–3.00

Nitrogen (N)N

0.10 max

Mechanical Properties of Stainless Steel 316 Coils

Alloy 316 coils meet the minimum mechanical requirements below per ASTM A240 / ASME SA-240. These values apply to both HR and CR forms.

515 (75)

MPa (ksi)

Tensile Strength (min)

205 (30)

MPa (ksi)

Yield Strength, 0.2% Offset (min)

Elongation (min)

Property	Value
Tensile Strength (min)	515 MPa (75 ksi)
Yield Strength, 0.2% Offset (min)	205 MPa (30 ksi)
Elongation (min)	35%
Hardness (max)	95 HRB

Request a Quote for Stainless Steel 316 Coils. Request a Quote

Equivalent Designations of Stainless Steel 316 Coil (HR & CR)

The following table shows the details corresponding to the designations of 316 Stainless Steel Coils across the globe.

Standard	Equivalent Grade / Designation
UNS (USA)	S31600
Werkstoff Nr. (Germany)	1.4401 / 1.4436
EN (European)	X5CrNiMo17-12-2
AFNOR (France)	Z7CND17-11-02
JIS (Japan)	SUS 316
BS (British)	316S31 / 316S33
GOST (Russia)	08Ch17N13M2

Stainless Steel 316 Coil Industrial Applications

Alloy 316 coils serve major industrial sectors. The molybdenum content gives this grade a clear advantage over 304 in chloride and acid environments.

Chemical & Petrochemical Industry

SS 316 coils are used for reactor vessels, heat exchangers, and storage tanks handling chloride solutions, organic acids, and process chemicals.

Marine & Offshore

Excellent resistance to chloride pitting and crevice corrosion renders this grade standard for maritime fittings, offshore structures, and industrial desalination plant systems.

Food, Beverage & Pharmaceutical

To ensure corrosion resistance and easy cleaning, hygienic equipment and conduit systems require CR coils with a smooth 2B or BA surface finish.

Architectural & Construction

Architects specify No.4 or mirror-finish CR coils for facade cladding, elevator panels, and handrails. These materials provide decorative trim for buildings in coastal and urban environments.

Stainless Steel 316 Coil Forms

Refer to the following table and breakdown to determine whether hot-rolled or cold-rolled SS 316 coils suit your project.

Feature	Hot Rolled (HR) Coils	Cold Rolled (CR) Coils
Production Temp	Above the recrystallisation point	Room temperature (after HR)
Standard Thickness	1.5 mm to 12.0 mm	0.3 mm to 3.0 mm
Surface Texture	Rougher, scaled (Industrial)	Smooth, refined (Aesthetic)
Dimensional Tolerance	Standard	Tighter / High Precision
Primary Advantage	Lower cost for heavy gauges	Superior finish and ductility
Best Use Case	Structural supports, tank shells	Appliances, medical tools, trim

Stainless Steel 316 vs 304 Coils

The price of stainless steel 316 coils is twenty to thirty percent higher than that of 304 coils. The most important distinctions are highlighted in the table that follows.

Property	SS 316	SS 304
Molybdenum	2.00–3.00%	None
Nickel	10.0–14.0%	8.0–10.5%
Chloride Resistance	Superior	Moderate
Typical Use	Marine, chemical, pharmaceutical	General-purpose, food, and architectural
Relative Cost	Higher	Lower

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Stainless Steel 316 Coils from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Edge and corner protection with plastic padding
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Coil Bundle Yard Staging

Coil Bundle Edge Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What is the difference between HR and CR SS 316 Coils?+

HR coils are produced at high temperatures in thicknesses of 1.5–12.0 mm with a No.1 finish. CR coils undergo further rolling at room temperature, producing thinner gauges (0.3–3.0 mm) with smoother finishes such as 2B, BA, and No.4.

What is the price of SS 316 Coils per kg?+

Thickness, width, finish, and metal markets determine the final cost. In India, you can expect prices between Rs 200 and Rs 350 per kg. In the USA it ranges between $4.60 and $5.20 per kg.

How do you verify that a coil is genuine SS 316?+

A molybdenum spot test is the fastest field method. Genuine 316 shows 2.00–3.00% Mo content. PMI with an XRF analyser or mill test certificates (EN 10204 3.1/3.2) provide full verification.

Which ASTM Standard covers SS 316 Coils?+

ASTM A240 / ASME SA-240 covers stainless steel 316 coil for pressure vessels and general engineering applications.

Is SS 316 Coil suitable for marine applications?+

Yes. SS 316 is commonly known as marine grade stainless steel. The 2.00–3.00% molybdenum content provides strong resistance to chloride pitting and crevice corrosion in saltwater service.

Can SS 316 coils be used for chemical storage tanks?+

Yes. SS 316 coils are widely used to fabricate storage tanks for acids, alkalis, solvents, and pharmaceutical products. The grade handles chloride solutions and organic acids that would attack 304.

What thickness range is available in SS 316 Coils?+

Thickness ranges from 0.3 mm to 12.0 mm. CR coils cover 0.3–3.0 mm; HR coils cover 1.5–12.0 mm.

What is the minimum order quantity for SS 316 Coils?+

Minimum order quantities depend on thickness, width, and finish. Contact us with your specific requirements for stock availability and pricing.
