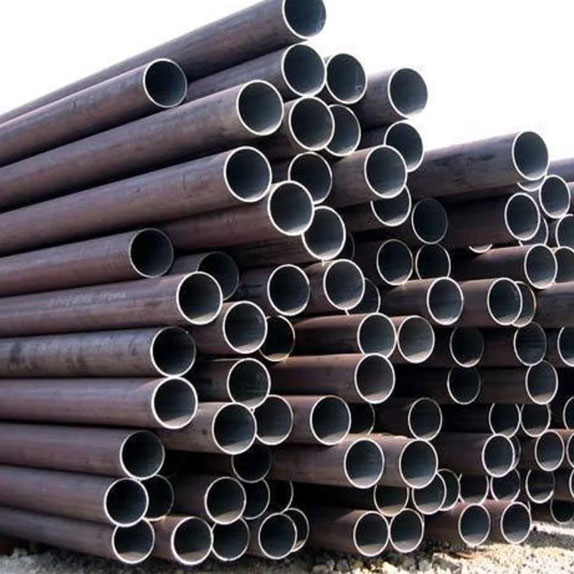

Mild Steel Pipe Specifications
The specifications of Mild Steel Pipes, including size, length, schedule and types are listed in the table below.
| Property | Details |
|---|---|
| Standards | IS 1239, IS 3589, IS 4923, IS 2062 |
| Sizes | NPS 1/2" to 24" (NB 15 to 600 mm) |
| Schedules | SCH 10 to SCH 160 |
| Length | 6 metres (20 feet) |
| Types | ERW, Seamless, Galvanised, Black |
Mild Steel Pipe Size Chart
The available sizes for Mild Steel Pipe are listed in the table given below.
| Parameter | Specification |
|---|---|
| Size Range | NPS 1/2" to NPS 24" |
| Outer Diameter | As per NPS standards (ASME B36.10M) |
| Length (Standard) | 6 meters |
| Length (Feet) | 20 feet |
Mild Steel Pipe Schedule Chart
Schedule numbers set the wall thickness per size.
| NPS | OD (mm) | SCH 40 (mm) | SCH 80 (mm) |
|---|---|---|---|
| 1/2" | 21.3 | 2.77 | 3.73 |
| 2" | 60.3 | 3.91 | 5.54 |
| 4" | 114.3 | 6.02 | 8.56 |
Mild Steel Pipe Thickness Chart
IS 1239 uses Light, Medium, and Heavy classes instead of schedules.
| NB (mm) | OD (mm) | Light (mm) | Medium (mm) | Heavy (mm) |
|---|---|---|---|---|
| 15 | 21.3 | 2.0 | 2.65 | 3.25 |
| 25 | 33.7 | 2.65 | 3.25 | 4.05 |
| 50 | 60.3 | 2.90 | 3.65 | 4.50 |
Mild Steel Pipe Weight Chart
The weight of MS Pipe depends on the diameter and thickness. A 2" NPS SCH 40 pipe weighs 3.65 kg per metre.
| NPS | OD (mm) | SCH 40 (kg/m) | SCH 80 (kg/m) |
|---|---|---|---|
| 1/2" | 21.3 | 1.27 | 1.62 |
| 2" | 60.3 | 3.65 | 5.44 |
| 4" | 114.3 | 10.01 | 14.90 |
Mild Steel Pipe Price Per Kg
Prices of Mild Steel pipe in India start from INR 42 and go up to INR 89 per kg based on size, thickness, and grade. International pricing starts from USD $0.60 to $1.20 per kg. Contact us for current rates.
Types of Mild Steel Pipe
MS pipe has 4 types, as listed below.

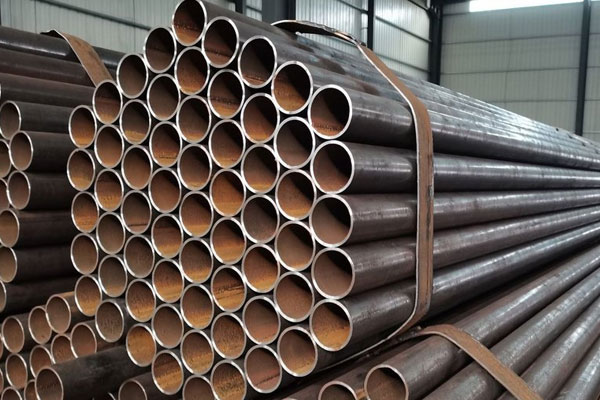

ERW Mild Steel Pipe

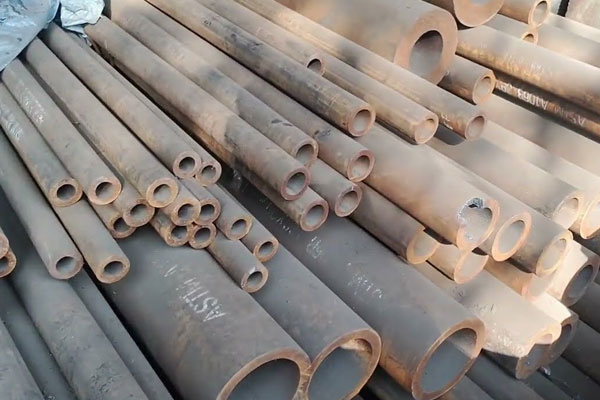

Seamless Mild Steel Pipe

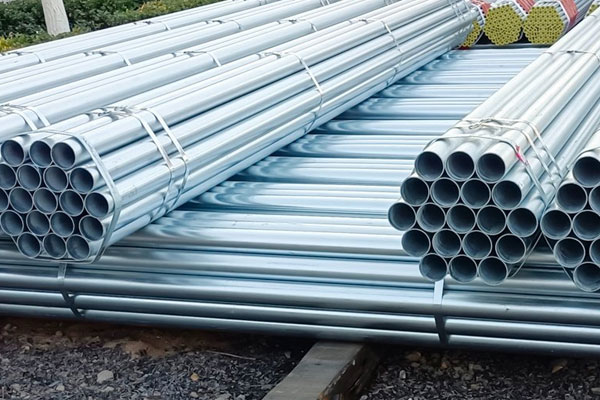

Galvanised Mild Steel Pipe (GI Pipe)
Black Mild Steel Pipe
Mild Steel Pipe Industrial Applications
MS pipe serves construction, plumbing, oil and gas, and HVAC.
Construction & Structural Applications
Mild steel pipes are used in buildings as vertical columns, temporary scaffolding frameworks, and structural supports to safely bear applied loads.
Plumbing & Water Supply
For water distribution and plumbing networks, engineers commonly choose galvanised mild steel pipes because their protective coating resists corrosion.
Oil & Gas Pipelines
Pipelines made from API 5L specification steel pipe are widely used to convey crude oil and natural gas over long distances.
Firefighting & HVAC Systems
In fire sprinkler installations and HVAC piping networks, engineers typically specify Schedule 40 black mild steel pipes as the common standard.
Mild Steel Pipe vs GI Pipe
MS and GI pipe share the same base metal but differ in surface treatment.
| Property | MS Pipe (Black) | GI Pipe (Galvanised) |
|---|---|---|
| Corrosion Resistance | Low | High |
| Cost | Lower | 15 to 30% higher |
| Applications | Gas, structural, industrial | Water supply, outdoor |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect mild steel pipes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Plastic end caps on threaded and plain-end pipes
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Tube Bundle Yard
Staging
Container End-Cap
Protection
Wrapped Export-Ready
Bundles
We Export Worldwide
Sachiya Steel International supplies mild steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
