IS 2062 E250 Sheet & Plate Manufacturer & Supplier

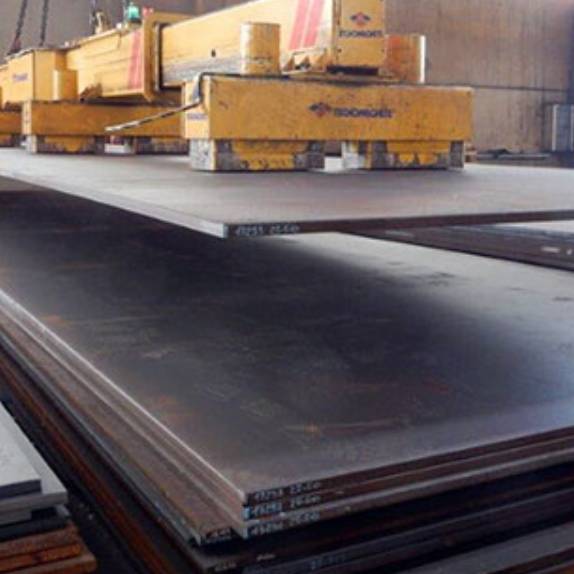

IS 2062 E250 is a mild steel plate product under the BIS IS 2062:2011 standard. It has a low-carbon base, with a maximum 0.23% carbon, 1.50% manganese, and 0.40% silicon, and controlled phosphorus, sulphur, and nitrogen. E250 steel plate offers good weldability and formability. The 250 MPa yield rating (for thickness below 20 mm) makes it a standard choice for medium-load structural steelwork, with 23% minimum elongation. IS 2062 E250 comes in four sub-grades: E250A, E250B, E250BR, and E250C, each differing in deoxidation practice and impact test requirements.

Sachiya Steel International is a trusted manufacturer and supplier of IS 2062 E250 sheet and plate, based in Mumbai, India. We stock this hot-rolled structural carbon steel (also known by its older designation Fe 410WA) for construction, fabrication, and general engineering projects.

We carry hot-rolled sheets in thickness from 5 mm to 300 mm, width from 1,000 mm to 4,050 mm, and length from 2,500 mm to 15,000 mm. Cut-to-size is available on request. All material ships with mill test certificates. We hold ISO 9001, ISO 14001, and ISO 45001 certifications.

This page covers:

Specification
Pricing
Chemical Composition
Mechanical Properties
Equivalent Materials
Sub-Grades
Industrial applications
E250 vs E350 Comparison
Shipping & Packaging
Frequently Asked Questions

Specifications of IS 2062 E250 Sheet and Plates

IS 2062 E250 specifications, including standard, dimensions, forms, finishes, and more, are covered in the table below:

Property	Value
Standard	IS 2062
Product Form	Sheet, Plate
Thickness	6 mm to 300 mm
Width	1500 mm to 4050 mm
Length	3000 mm to 15000 mm
Type	Hot Rolled Mild Steel
Edge Condition	Mill Edge / Slit Edge
Surface Finish	Hot Rolled (HR)
Deoxidation	Semi-killed / Killed

IS 2062 E250 Sheet & Plate Sizes

IS 2062 E250 sheet and plate are available in the size ranges listed below. Our Mumbai stockyard carries ready stock across common thicknesses. Plate weight can be estimated using the formula: weight (kg) = thickness (mm) x width (m) x length (m) x 7.85.

Parameter	Range
Thickness	5 mm to 300 mm
Width	1,000 mm to 4,050 mm
Length	2,500 mm to 15,000 mm
Cut-to-Size	Available on request

IS 2062 E250 Plate Forms & Surface Finish

IS 2062 E250 is supplied as a hot-rolled (HR) sheet and plate in mill finish. The following forms are available depending on thickness and application:

Hot Rolled Sheet: thin gauge (below 6 mm), HR mill finish
Hot Rolled Plate: standard gauge (6 mm and above), HR mill finish
Sheared Plate: cut-to-size from parent plate
Flame-Cut Plate: thermal cut for thicker sections
Normalised Plate: heat-treated for improved properties (on request)

IS 2062 E250 Price Per Kg

IS 2062 E250 mild steel plate price ranges from approximately Rs 45 to Rs 55 per kg in India, or $0.50 and $1.00 per kg. Pricing depends on thickness, sub-grade, order quantity, and current steel market conditions. Thinner plates (below 6 mm) and small lot sizes cost more. Contact us for a current quotation.

IS 2062 E250 Chemical Composition

The table below shows the element limits per IS 2062 for the E250A sub-grade. IS 2062 E250 is a low-carbon structural steel with controlled alloying to support weldability and forming.

Carbon C

Max 0.23%

Manganese Mn

Max 1.50%

Silicon Si

Max 0.40%

Sulphur S

Max 0.045%

Phosphorus P

Max 0.045%

Nitrogen N

Max 0.012%

Carbon Equivalent CE

Max 0.42%

IS 2062 E250 Mechanical Properties

IS 2062 E250 provides the load-bearing performance required for structural plate and sheet applications. Yield strength varies by thickness band, as shown below.

250

MPa (min)

Yield Strength (Below 20 mm)

410

MPa

Tensile Strength

23%

(min)

Elongation

Property	Below 20 mm	20 to 40 mm	Above 40 mm	Unit
Yield Strength (min)	250	240	230	MPa
Tensile Strength	410	410	410	MPa
Elongation (min)	23	23	23	%

Request a Quote for IS 2062 E250 Plate Request a Quote

IS 2062 E250 Equivalent Material

IS 2062 E250 corresponds to several international structural steel standards. The table below covers the primary equivalents for cross-standard procurement.

Standard	Designation
IS 2062:2011	E250 (Fe 410WA)
JIS G3101	SS400
GB/T 700	Q235B
DIN 17100 (superseded)	St 44-2

For US-standard projects, compare with ASTM A36 Plate for the equivalent specification.

IS 2062 E250 Sub-Grades

IS 2062 E250 is available in 4 sub-grades: E250A, E250B, E250BR, and E250C. The primary differences are in the deoxidation method and impact testing requirements.

E250A (Fe 410WA)

E250A is the most common sub-grade, produced as killed or semi-killed steel with no mandatory impact test. This grade is specified for building frames, transmission towers, and column sections. It is the most economical option in the E250 range.

E250B (Fe 410WB)

This sub-grade uses fully killed steel with improved impact properties over E250A. Buyers may request impact testing at the time of ordering. E250B serves moderate-responsibility structural projects.

E250BR

E250BR is fully killed steel with a mandatory Charpy impact test at room temperature (27 J minimum). Bridge fabrication, heavy equipment structures, and critical steelwork where verified toughness is required at ambient conditions commonly need this sub-grade.

E250C (Fe 410WC)

The most stringent sub-grade, E250C, requires impact testing at 0 degrees C with a 27 J minimum. Cold-region infrastructure and low-temperature structural applications specify E250C when operating conditions drop below ambient.

IS 2062 E250 Sheet & Plate Industrial Applications

IS 2062 E250 mild steel sheet and plate serve a broad range of structural and fabrication applications. Three major sectors account for most of the demand: construction and infrastructure, automobile and transportation, and industrial equipment fabrication.

Construction & Infrastructure

E250 steel plate is used for building columns, beams, base plates, and gusset connections in multi-storey structures. Bridges, flyovers, and transmission tower base sections use this for its weldability and load-bearing capacity.

Automobile & Transportation

Chassis frames, trailer bodies, and rail coach structural components use IS 2062 E250 plate in thicknesses from 5 mm to 20 mm. The low carbon content supports press forming and bending without cracking during fabrication.

Industrial Equipment & Fabrication

E250 MS plates are used to fabricate tanks, hoppers, conveyor frames, and general machine bases. Its combination of 410 MPa tensile strength, good weldability, and cost efficiency makes it practical for high-volume fabrication work.

IS 2062 E250 vs IS 2062 E350

The table below provides an IS 2062 E250 vs IS 2062 E350 comparison depending on strength, load conditions, and structural efficiency requirements.

Parameter	IS 2062 E250	IS 2062 E350
Minimum Yield Strength	250 MPa	350 MPa
Minimum Tensile Strength	410 MPa	490 MPa
Strength Level	Standard structural grade	High-strength structural grade
Load Capacity	Suitable for moderate loads	Suitable for high-load applications
Section Thickness Requirement	Thicker sections required	Thinner sections possible due to higher strength
Weight Optimization	Limited	Better weight reduction potential
Typical Applications	General fabrication, buildings, frames	Bridges, heavy structures, crane girders
Design Efficiency	Standard	Higher efficiency in load-bearing structures
Cost Consideration	Lower material cost	Higher initial cost but potential savings in weight
Selection Criteria	Used where loads are moderate	Preferred where the strength-to-weight ratio is critical

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect IS 2062 E250 sheet & plate from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Edge and corner protection with plastic padding
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Plate Bundle Yard Staging

Plate Bundle Edge Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies mild steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions:

What is IS 2062 E250 Plate material? +

IS 2062 E250 is a hot-rolled structural carbon steel (mild steel) plate conforming to Indian Standard IS 2062. It has a minimum yield strength of 250 MPa and a tensile strength of 410 MPa. The grade was formerly designated Fe 410WA under the pre-2011 standard revision.

What is the price of IS 2062 E250 Plate per kg? +

The IS 2062 E250 plate price starts from around Rs 45 and goes up to Rs 55 per kg in India. The final price varies with thickness, sub-grade, order volume, and market conditions. Request a quote for current rates.

What is the density of IS 2062 E250 Plate? +

The density of IS 2062 E250 steel plate is 7.85 g/cm3 (7,850 kg/m3). This is the standard density for carbon and mild steel. It is used for calculating plate weight during procurement.

What is the difference between IS 2062 E250A and E250BR Plate? +

E250A is killed or semi-killed steel with no mandatory impact test. It is suited for general structural work. E250BR is fully killed steel with a mandatory Charpy impact test at room temperature (27 J minimum). Use E250BR for critical structural applications requiring verified toughness.

What are the equivalent materials for IS 2062 E250 Plate? +

IS 2062 E250 is equivalent to ASTM A36 / ASME SA-36 (USA), JIS G3101 SS400 (Japan), and GB/T 700 Q235B (China).

What thickness range is available for IS 2062 E250 Plate? +

IS 2062 E250 plate come in thicknesses from 5 mm to 300 mm, width from 1,000 mm to 4,050 mm, and length from 2,500 mm to 15,000 mm. Cut-to-size processing is available on request.

Where can I buy IS 2062 E250 Plate in India? +

Sachiya Steel is a manufacturer and supplier of IS 2062 E250 plate in India with ready stock in Mumbai. We supply BIS-certified, mill-test-report-backed plates across India and for export.
