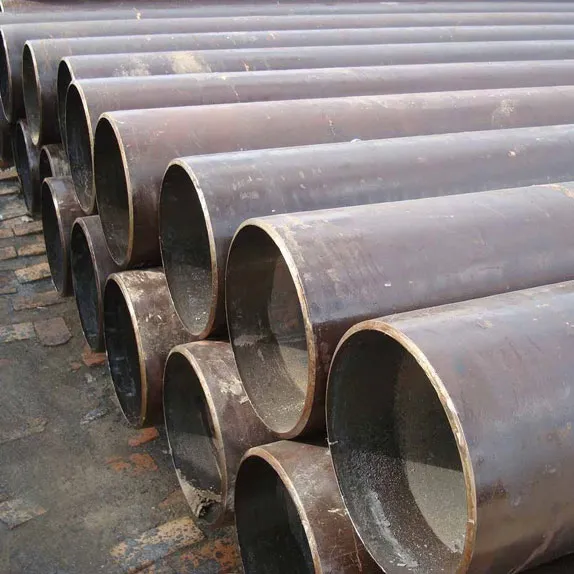

IS 4923 Pipes Specifications

The specifications of IS 4923 Pipes, including standard, length and surface finish is listed in the table below.

Parameter Value
Standard IS 4923 (Bureau of Indian Standards)
Equivalent Standards ASTM A500/A501, EN 10219/EN 10210
Grades YSt 210, YSt 240, YSt 310
Section Types SHS, RHS
SHS Size Range 20 x 20 mm to 250 x 250 mm
RHS Size Range 40 x 20 mm to 300 x 200 mm
Wall Thickness 2.0 mm to 10.0 mm
Length 6 metres standard; custom available
Process ERW (Electric Resistance Welded)
Surface Finish Black (mill finish), Galvanised (on request)

IS 4923 Pipe Sizes

We stock IS 4923 pipes across a full range of SHS and RHS profiles.

IS 4923 Square Hollow Section (SHS) Sizes

SHS pipes IS 4923 are stocked in the following dimensions.

Size (mm x mm) Wall Thickness (mm)
20 x 20 2.0
40 x 40 2.0 to 4.0
75 x 75 3.0 to 6.0
100 x 100 3.0 to 8.0
150 x 150 4.0 to 10.0
250 x 250 6.0 to 10.0

IS 4923 Rectangular Hollow Section (RHS) Sizes

RHS pipes IS 4923 are available in the profiles listed below.

Size (mm x mm) Wall Thickness (mm)
40 x 20 2.0 to 3.0
75 x 50 2.5 to 5.0
100 x 50 3.0 to 6.0
150 x 75 4.0 to 8.0
200 x 100 4.0 to 10.0
300 x 200 6.0 to 10.0

IS 4923 Pipes Price

IS 4923 pipes price in India is approximately ₹55 to ₹80 per kg and $0.60 to $1.50 per kg in USD. Final price depends on section type, dimensions, wall thickness, grade, and quantity. As an IS 4923 pipes wholesaler, we offer ex-stock dispatch from Mumbai with volume discounts. Contact us for a quotation.

Chemical Composition of IS 4923 Pipes

The chemical composition of IS 4923 pipes, along with their proportion in percentage, is listed in the table below.

YSt 210

Carbon C
≤ 0.20%
Silicon Si
≤ 0.35%
Manganese Mn
≤ 1.40%
Phosphorus P
≤ 0.045%
Sulphur S
≤ 0.045%

YSt 240

Carbon C
≤ 0.20%
Silicon Si
≤ 0.35%
Manganese Mn
≤ 1.40%
Phosphorus P
≤ 0.045%
Sulphur S
≤ 0.045%

YSt 310

Carbon C
≤ 0.20%
Silicon Si
≤ 0.35%
Manganese Mn
≤ 1.50%
Phosphorus P
≤ 0.040%
Sulphur S
≤ 0.040%

Mechanical Properties of IS 4923 Pipes

The mechanical properties of IS 4923 pipes, including tensile strength and elongation is listed in the table given below.

YSt 210

330
MPa
Tensile Strength (YSt 210)
210
MPa
Yield Strength (YSt 210)
23%
%
Elongation (YSt 210)

YSt 240

410
MPa
Tensile Strength (YSt 240)
240
MPa
Yield Strength (YSt 240)
21%
%
Elongation (YSt 240)

YSt 310

450
MPa
Tensile Strength (YSt 310)
310
MPa
Yield Strength (YSt 310)
18%
%
Elongation (YSt 310)
Grade Yield Strength (MPa) Tensile Strength (MPa) Elongation (%)
YSt 210 ≥ 210 ≥ 330 ≥ 23
YSt 240 ≥ 240 ≥ 410 ≥ 21
YSt 310 ≥ 310 ≥ 450 ≥ 18
Get the Best Price on IS 4923 Hollow Section Request a Quote

IS 4923 Pipes Industrial Applications

Hollow structural tubes, IS 4923, find use across four key sectors.

Construction & Building Structures

IS 4923 sections form the skeleton of steel-frame buildings, from roof trusses and columns to mezzanine floors.

Infrastructure & Bridge Construction

Structural steel tubes IS 4923 are specified for guardrails, pedestrian bridges, and highway gantries.

Industrial & Manufacturing Fabrication

Conveyor frames, machine guards, and storage racks use IS 4923 sections for simple bolting and welding.

Agricultural & Greenhouse Structures

Lightweight IS 4923 sections in YSt 210 serve greenhouse frames and poultry sheds. Galvanised finish adds outdoor corrosion protection.

IS 4923 Pipe Grades

IS 4923 defines 3 standard grades for hollow steel sections: YSt 210, YSt 240, and YSt 310.

IS 4923 YSt 210 Grade

YSt 210 is the basic grade in IS 4923, with a minimum yield strength of 210 MPa (like Fe 330). It suits fencing, small frames, and furniture where load demands are moderate.

IS 4923 YSt 240 Grade

IS 4923 YSt 240 is the most widely specified grade in Indian construction, at 240 MPa minimum yield strength (Fe 410). Frames, trusses, and columns are its core territory. Engineers default to YSt 240 unless loads call for YSt 310.

IS 4923 YSt 310 Grade

IS 4923 YSt 310 has the highest standard yield strength of 310 MPa (Fe 490). It is commonly used in high-rise buildings, bridges, and crane structures.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect IS 4923 Pipes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end pipes
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Pipe Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Mild Steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions:

What is IS 4923 Pipe standard? +
IS 4923 is a Bureau of Indian Standards specification for hollow steel sections in structural applications. It covers SHS and RHS profiles in grades YSt 210, YSt 240, and YSt 310.
What is the ASTM equivalent of IS 4923? +
The ASTM equivalent is ASTM A500 (cold-formed) and ASTM A501 (hot-formed). European equivalents are EN 10219 and EN 10210. YSt 240 maps closely to ASTM A500 Grade B.
What sizes are available in IS 4923 square pipes? +
IS 4923 square pipes range from 20 x 20 mm to 250 x 250 mm with wall thicknesses of 2.0 mm to 10.0 mm. Standard length is 6 metres.
What is the difference between IS 4923 YSt 210 and YSt 310? +
YSt 210 has a yield strength of 210 MPa, suited for light structural work. YSt 310 provides 310 MPa for heavy-load applications like bridges and high-rise frames.
What is the price of IS 4923 Pipes in India? +
IS 4923 pipes price in India is approximately ₹55 to ₹80 per kg and $0.60–$1.50 per kg in USD. Final price depends on section type, dimensions, wall thickness, grade, and quantity. Contact us for the current IS 4923 pipes price list.
What is the difference between IS 4923 and IS 1239 Pipes? +
IS 4923 covers structural hollow sections (SHS and RHS) for load-bearing work. IS 1239 covers round steel pipes for general engineering, such as water and gas conveyance. The two standards serve different end uses.
Where to buy IS 4923 Pipes in India? +
Sachiya Steel International is an IS 4923 pipes dealer, distributor, and stockist in Mumbai with ex-stock dispatch and export capability.
Are IS 4923 hollow sections available in custom lengths? +
IS 4923 hollow sections are shipped in standard 6-metre lengths. Custom cutting is available against a minimum order quantity.
