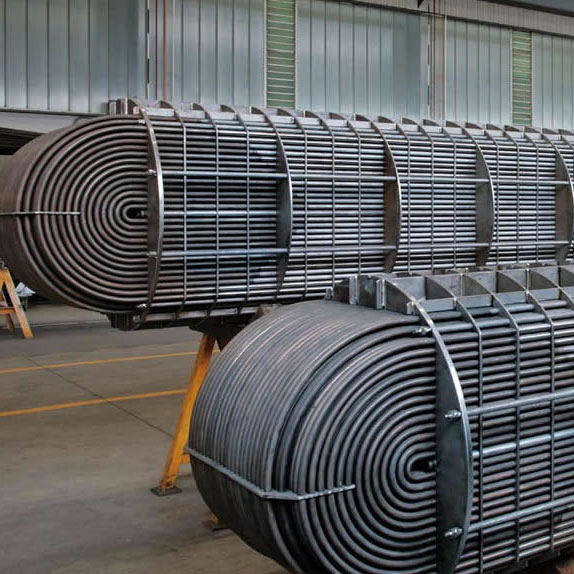

Stainless Steel 316Ti Heat Exchanger Tubes Specifications
Seamless 316Ti is supplied to ASTM A213 / ASME SA-213 and welded to ASTM A249 / ASME SA-249. Both are stocked, and the choice between them is set by pressure and budget rather than by grade.
| Parameter | Details |
|---|---|
| Standards | ASTM A213 / ASME SA213 (Seamless Boiler/Exchanger); ASTM A269 (General Service); ASTM A249 (Welded Exchanger) |
| Size Range | OD: 6.35 mm to 101.6 mm (1/4" to 4") |
| Wall Thickness | 0.5 mm to 12.7 mm (Standard BWG gauges available) |
| Length | 6m to 12m (Single/Double Random); Custom U-Bent lengths up to 18m |
| End Type | Plain End, Bevelled End, Square Cut, U-Bent |
| Surface Finish | Annealed & Pickled (AP), Bright Annealed (BA), Electropolished |
| Form | Seamless, Welded (ERW), U-Tubes, Straight Tubes, Coiled |
| Testing | Hydrostatic, Eddy Current, Flare, Flattening, and Intergranular Corrosion (IGC) Testing |
Seamless Tube Sizes
Seamless tube is pierced from a solid billet, so there is no weld seam to inspect or to fail. It is the usual choice where pressure is high or the shell side carries anything aggressive.
| Parameter | Metric Range (mm) | Imperial Range (inch) |
|---|---|---|
| Outside Diameter (OD) | 6.35 mm - 219.1 mm | 1/4" - 8" |
| Wall Thickness (WT) | 1.0 mm - 12.7 mm | 0.040" - 0.500" |
| Standard Lengths | 5.5 m - 6.5 m | 18 ft - 21.3 ft |
| Custom Lengths | Up to 12.0 m | Up to 40 ft |
| Schedules | 10S, 40S, 80S, 160 |
Welded Tube Sizes
Welded tube is rolled from strip and seam welded. The wall runs more consistent than seamless and the cost is lower, which suits most standard-pressure exchanger duty.
| Parameter | Metric Range (mm) | Imperial Range (inch) |
|---|---|---|
| Outside Diameter (OD) | 12.7 mm - 610.0 mm | 1/2" - 24" |
| Wall Thickness (WT) | 0.5 mm - 20.0 mm | 0.020" - 0.787" |
| Standard Lengths | 6.0 m | 20 ft |
| Custom Lengths | Up to 12.0 m (U-Bent) | Up to 40 ft (U-Bent) |
| Tolerances | OD: ±0.1 mm to ±0.4 mm | WT: ±10% |
Stainless Steel 316Ti Heat Exchanger Tubes Price
Stainless Steel 316Ti heat exchanger tubes are priced at approximately ₹200–500/kg, with a general average of ₹245/kg for standard sizes, which is roughly $2.35 to $5.88 per kg. See the heat exchanger tube page or 904L tube for the other grades. Tubes above 4 in. OD and below 1-1/2 in. OD carry a slight premium. Final pricing depends on OD, wall thickness, length, quantity, surface finish, and tube configuration. Contact us for a current quote.
ASTM A213 Stainless Steel 316Ti Chemical Composition
Two elements do the work in this grade. Molybdenum resists chloride pitting, and titanium ties up the carbon so chromium carbides cannot form along the grain boundaries when the tube is welded.
This grade contains 16.0–18.0%
chromium, 10.0–14.0% nickel, 2.00–3.00% molybdenum, and titanium stabilisation (5×(C+N) min, 0.70% max). The titanium is written as a ratio rather than a fixed figure because the amount needed depends on how much carbon and nitrogen there is to tie up.
Mechanical Properties of Stainless Steel 316Ti Heat Exchanger Tubes
316Ti carries the same strength minimums as standard 316, so specifying it for corrosion reasons costs nothing in the pressure calculation.
It meet strict mechanical standards: 515 MPa minimum tensile and 205 MPa yield strength.
The 35% minimum elongation ensures these tubes remain durable and resistant to
stress-related failure during operation.
| Property | Imperial | Metric |
|---|---|---|
| Tensile Strength (min) | 75 ksi | 515 MPa |
| Yield Strength, 0.2% Offset (min) | 30 ksi | 205 MPa |
| Elongation in 2 in. (min) | 35% | 35% |
Equivalent Grade Table for Stainless Steel 316Ti Heat Exchanger Tubes
316Ti arrives under a different name depending on where the drawing was produced. 1.4571 on a German print and SUS 316Ti on a Japanese one are the same material as UNS S31635. Order against the UNS number where you can, because it is the one designation that does not change between standards.
| Standard | Designation / Grade |
|---|---|
| UNS | UNS S31635 |
| EN / DIN (Europe) | 1.4571 / X6CrNiMoTi17-12-2 |
| JIS (Japan) | SUS 316Ti / SUS316TiTP |
| GB/T (China, current) | 06Cr17Ni12Mo2Ti |
| GB (China, legacy) | 0Cr17Ni12Mo2Ti |
| BS (UK, legacy) | 320S31 |
| AFNOR (France) | Z6CNDT17-12 |
Industrial Applications of SS 316Ti Heat Exchanger Tubes
316Ti heat exchanger tubes serve four primary industries: chemical processing, oil and gas refining, power generation, and pharmaceutical/food manufacturing.
Chemical and Petrochemical Processing
316Ti tubes are used in heat transfer for sulphuric acid and chloride-bearing streams, as they prevent the sensitisation during repeated thermal cycling.
Oil and Gas Refining
Ideal for crude distillation columns and overhead condensers resisting naphthenic acid and hydrogen sulphide above 425°C.
Power Generation
These tubes are used in boiler feedwater heaters and steam condensers to resist chloride stress corrosion from cooling water.
Pharmaceutical and Food Processing
Bright-annealed or electropolished SS 316Ti tubes meet hygienic surface requirements. Sterile heat exchangers and CIP systems use them.
Grade Comparisons: 316Ti vs 316L, 321H, 304H
Stainless Steel 316Ti vs 316L Heat Exchanger Tubes
The choice between 316Ti and 316L comes down to how hot the tube runs.
Titanium stabilisation allows 316Ti to carry up to 0.08% carbon without the risks found in 316L. Since 316L (capped at 0.03% carbon) becomes sensitised above 425°C, engineers prefer 316Ti for high-temperature heat exchanger projects.
| Feature | SS 316Ti (UNS S31635) | SS 316L (UNS S31603) |
|---|---|---|
| Carbon Content | Max 0.08% | Max 0.03% |
| Stabilising Element | Titanium (Ti) | None |
| Sensitisation Risk | Low (Stable up to 815°C) | Higher above 425°C for long durations |
| Creep Strength | Higher at elevated temperatures | Lower at high temperatures |
| Primary Use Case | Sustained high-heat exchangers | Ambient temperature welded structures |
Stainless Steel 316Ti vs 321H for Heat Exchanger Tubes
Both grades are titanium stabilised, so molybdenum is what decides between them.
However, 316Ti incorporates 2.00–3.00% molybdenum, while 321H carries 0.04–0.10% carbon. These distinct chemical profiles cater to very different high-temperature application requirements. In chloride conditions, molybdenum makes 316Ti pitting and crevice corrosion resistant.
| Feature | SS 316Ti | SS 321H |
|---|---|---|
| Molybdenum (Mo) | 2.00% - 3.00% | Trace / None |
| Titanium (Ti) | 5×(C+N) min to 0.70% max | 4×(C+N) min to 0.70% max |
| Carbon (C) | Max 0.08% | 0.04% - 0.10% |
| Chloride Resistance | Very good (Resists Pitting) | Moderate to Poor |
| Strength at Heat | Good | Better (Highest Creep Resistance) |
Stainless Steel 316Ti vs 304H for Heat Exchanger Tubes
304H is the cheaper grade. This is where paying more for 316Ti earns its keep.
304H lacks both molybdenum and titanium. It’s a lower-cost option for non-chloride, moderate-temperature service. Select 316Ti whenever chloride exposure, sulphuric acid, or sustained temperatures above 425°C are present.
| Feature | SS 316Ti | SS 304H |
|---|---|---|
| Alloying Matrix | Cr-Ni-Mo + Titanium | Cr-Ni (18/8) + High Carbon |
| Acid Resistance | High (Sulphuric/Acetic acids) | Moderate |
| Chloride Pitting | Resistant (PREN ~24) | Sensitive (PREN ~19) |
| Max Service Temp | Up to 850°C | Up to 800°C (Oxidising) |
| Cost Profile | Premium Performance | Economical / Standard |
Shipping & Packaging
Heavy-Duty Wooden Box Packing
Ends capped, bundles strapped and film-wrapped, crated for sea freight. 316Ti is specified for chloride service, so the surface is kept clean of embedded iron.
- Heavy-duty wooden boxes or strapped bundles, with moisture barrier lining
- LLDPE stretch film wrapping on all bundles
- Plastic end caps on plain and bevelled ends
- Silica gel desiccants to minimise moisture exposure
- ISPM-15 compliant wooden packaging for export
Tube Bundle Yard Staging
Tube End-Cap Protection
Wrapped Export-Ready
Bundles
