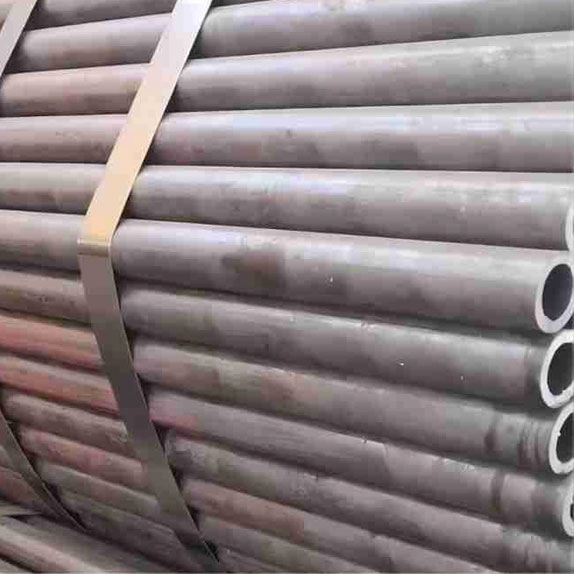

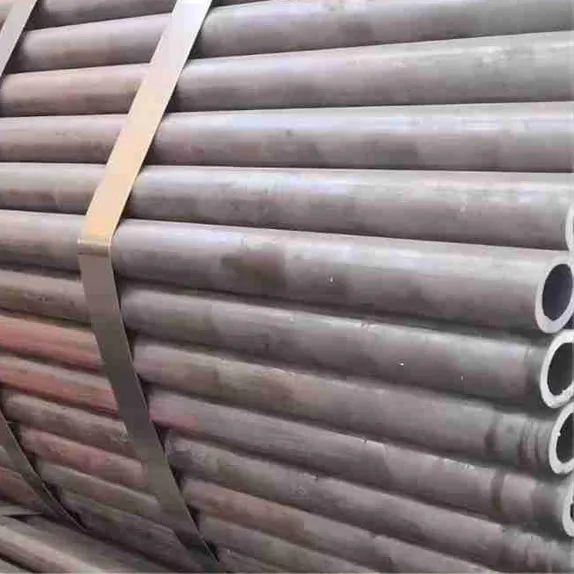

ASTM A213 T5 Tubes Manufacturer & Supplier

ASTM A213 T5 is a high-chromium seamless alloy tube engineered for boilers and heat exchangers. It provides exceptional corrosion and heat resistance. All our ASTM A213 T5 seamless tubes conform to ASTM A213 / ASME SA-213 and general requirements per ASTM A1016 / ASME SA-1016. The chromium concentration of 4.00–6.00% ensures robust oxidation resistance, whilst 0.45–0.65% molybdenum enhances creep strength under extended heat conditions. This material delivers the durability required for high-temperature, critical-path industrial piping applications.

T5 Alloy Steel Seamless Tubes have a minimum yield strength of 205 MPa (30 ksi) and a minimum tensile strength of 415 MPa (60 ksi). They have a maximum hardness of 163 HB and a maximum elongation of 30%. This combination of mechanical properties renders them well-suited for components that operate at temperatures of up to approximately 600°C (1100°F) and contain pressure.

Sachiya Steel International is a trusted manufacturer and supplier of ASTM A213 T5 alloy steel seamless tubes, based in Mumbai, India, and established in the year 2005. We supply these 5Cr-0.5Mo tubes in outside diameters from 6.35 mm to 127 mm and wall thicknesses from 0.9 mm to 12.7 mm, with custom-cut lengths on request. We stock and export SA213 T5 in all sizes for boiler, superheater, and heat-exchanger service in power generating, petrochemical, and refinery. Chrome moly T5 tubes are 5Cr-0.5Mo ferritic alloy steel. Our facility is ISO 9001, ISO 14001, and ISO 45001 certified.

This page covers:

Specifications
Pricing
Applicable Standards
Chemical Composition
Mechanical Properties
Equivalent Grades
Industrial Applications
Grade Comparisons
Frequently Asked Questions

Specifications of ASTM A213 / ASME SA213 T5 Tubes

This table outlines the dimensional standards, size availability, and technical supply specifications governing our ASTM A213 and ASME SA213 T5 tube stock.

Property	Specification / Details
Standard	ASTM A213 / ASME SA213
Manufacturing Type	Seamless (Hot Finished or Cold Finished)
Outside Diameter (OD)	1/8" to 5" (6.35 mm to 127 mm)
Wall Thickness (WT)	0.015" to 0.500" (0.4 mm to 12.7 mm)
Heat Treatment	Full or Isothermal Anneal / Normalised and Tempered
Surface Finish	Pickled, Polished, or Bright Annealed
Testing	Flaring, Flattening, Hardness, and Hydrostatic/NDE

ASTM A213 T5 Tube Sizes

Refer to the table below for the comprehensive dimensional specifications and schedule options for ASTM A213 T5 seamless tubes.

Parameter	Specification Details
Outside Diameter (OD)	6.35 mm to 127 mm
Wall Thickness	0.9 mm to 12.7 mm
Schedules	STD, SCH 40, and SCH 80
Standard Lengths	5.8 m to 12 m
Customisation	Precision trimming to specific lengths available

Outside Diameter and Tolerances

A213 T5 tubes follow ASTM A213 outside diameter tolerances based on manufacturing method. Hot-rolled tubes permit wider tolerances than cold-drawn tubes.

Hot Rolled:

OD Range	Tolerance
OD up to 101.6 mm	+0.4 / -0.8 mm
101.6 to 190.5 mm	+0.4 / -1.2 mm
190.5 to 228.6 mm	+0.4 / -1.6 mm

Cold Drawn:

OD Range	Tolerance
OD less than 25.4 mm	+/- 0.10 mm
25.4 to 38.1 mm	+/- 0.15 mm
38.1 to 50.8 mm	+/- 0.20 mm
50.8 to 63.5 mm	+/- 0.25 mm
63.5 to 76.2 mm	+/- 0.30 mm
76.2 to 101.6 mm	+/- 0.38 mm

Wall Thickness and Tolerances

Wall thickness tolerances for T5 seamless tubes differ between hot-rolled and cold-drawn production.

Hot Rolled (OD up to 101.6 mm):

Wall Thickness	Tolerance
WT up to 2.4 mm	+40% / -0%
2.4 to 3.8 mm	+35% / -0%
3.8 to 4.6 mm	+33% / -0%
WT over 4.6 mm	+28% / -0%

Cold Drawn:

OD Range	Tolerance
OD up to 38.1 mm	+20% / -0%
OD over 38.1 mm	+22% / -0%

ASTM A213 T5 Tubes Price

ASTM A213 T5 alloy steel seamless tube prices range in the Indian market, with pricing is approximately Rs 675/kg, from approximately cost between $1.88 and $3.50 per kg (USD), depending on size, quantity, and specifications. Final pricing depends on outside diameter, wall thickness, length, quantity, finish, heat treatment, and certification requirements. Contact us with your specifications for a current quotation.

Chemical Composition of ASTM A213 / ASME SA-213 T5 Tubes

The table below lists the chemical composition of the T5 tube per ASTM A213 / ASME SA-213.

ASTM A213 T5 is a ferritic alloy steel with 5% chromium and 0.5% molybdenum. The Cr-Mo composition delivers oxidation resistance and elevated-temperature strength for boiler and heat-exchanger service.

Carbon C

0.15 max

Manganese Mn

0.30 - 0.60

Phosphorus P

0.025 max

Sulphur S

0.025 max

Silicon Si

0.50 max

Chromium Cr

4.00 - 6.00

Molybdenum Mo

0.45 - 0.65

Mechanical Properties of ASTM A213 T5 Tubes

The table below provides a full analysis of the tensile strength, yield points, and elongation values.

ASTM A213 T5 tubes require a minimum tensile strength of 415 MPa (60 ksi), yield strength of 205 MPa (30 ksi), elongation of 30%, and maximum hardness of 163 HB per ASTM A213 / ASME SA-213.

415 (60)

MPa (ksi)

Tensile Strength (min)

205 (30)

MPa (ksi)

Yield Strength (min)

Elongation (min)

163

Hardness (max)

Property	Value	Unit
Tensile Strength (min)	415 (60)	MPa (ksi)
Yield Strength (min)	205 (30)	MPa (ksi)
Elongation (min)	30	%
Hardness (max)	163	HB

Request a Quote for ASTM A213 T5 Tubes Request a Quote

ASTM A213 T5 Tube Equivalent Designations

Refer to the following table for the international material equivalents and UNS designations for ASTM A213 T5 Alloy Steel Seamless Tubes.

Standard	Equivalent Grade
UNS	K41545
EN 10216-2	X11CrMo5 (1.7362)
DIN 17175	X11CrMo5-1 (1.7362)
JIS G3462	STBA 25
BS 3604	Grade 625
GOST 550	15Kh5M

ASTM A213 T5 Tube Industrial Applications

ASTM A213 T5 alloy steel tubes are designed for high-temperature and high-pressure applications. Boiler tubes, superheater tubes, heat-exchanger tubes and furnace components are frequently employed in refinery, petrochemical and power generation operations.

Power Generation

Used in superheaters and reheaters for power plants, maintaining structural strength during intense heat and suitable for elevated temperature service; allowable limits depend on the design code.

Oil and Gas and Petrochemical

Ideal for furnace coils and heat exchangers, as the chromium resists corrosion from high-sulphur crude oil at extreme processing temperatures.

Chemical Processing and Refineries

Used in reactors and furnace sections, it provides important oxidation resistance for long-term use in harsh, high-temperature chemical conditions.

ASTM A213 T5 vs Other Chrome Moly Grades

ASTM A213 T5 (5Cr-0.5Mo) has moderately high-temperature strength and corrosion resistance up to 600 degrees C. Grades with differing Cr-Mo balances are specified for greater temperatures or pressures. Compare T9, T11, and T22, three adjacent grades.

T5 vs T9

Feature	Grade T5	Grade T9
Chromium (Cr)	4.00% – 6.00%	8.00% – 10.00%
Molybdenum (Mo)	0.45% – 0.65%	0.90% – 1.10%
Oxidation Resistance	Good	Superior (Above 600°C)
Sulphidation Resistance	Standard	High
Cost Profile	Moderate	Higher per Kilogram

T5 vs T11

Feature	Grade T5	Grade T11
Chromium (Cr)	4.00% – 6.00%	1.00% – 1.50%
Molybdenum (Mo)	0.45% – 0.65%	0.44% – 0.65%
Temp. Ceiling	Approx. 600°C	Approx. 540°C
Corrosion Resistance	High	Low to Moderate
Application	High-temp crackers / furnaces	Low-temp boiler tubes

T5 vs T22

Feature	Grade T5	Grade T22
Chromium (Cr)	4.00% – 6.00%	1.90% – 2.60%
Molybdenum (Mo)	0.45% – 0.65%	0.87% – 1.13%
Creep Strength	Standard	High
Best Used For	Sulphidation Resistance	High-Load Steam Service
Temp. Threshold	~600°C	~580°C

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect ASTM A213 T5 Tubes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Tube Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies Alloy steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions:

What are ASTM A213 T5 tubes used for? +

We form ASTM A213 T5 seamless tubes for boilers, superheaters, and heat exchangers that can handle very high heat and pressure. These important parts of the furnace meet the strict needs of the petrochemical, refinery, and power generation industries.

What is the chemical composition of ASTM A213 T5? +

ASTM A213 T5 is a 5Cr-0.5Mo ferritic alloy steel. Key elements are C 0.15% max, Mn 0.30 to 0.60%, Si 0.50% max, Cr 4.00 to 6.00%, and Mo 0.45 to 0.65%.

What sizes are available for ASTM A213 T5 tubes? +

We stock ASTM A213 T5 tubes from 6.35 mm to 127 mm outside diameter, with wall thickness from 0.9 mm to 12.7 mm. Standard lengths are 5.8 to 12 m, and custom cut lengths are available on request.

What is the difference between ASTM A213 T5 and T5b? +

The Cr-Mo compositions of T5 and T5b are the same. T5b has more silicon, between 1.0 and 2.0%, while T5 has a maximum of 0.50%. UNS K51545 classifies T5b, and both grades meet the requirements of ASTM A213.

What is the maximum service temperature for ASTM A213 T5 Tubes? +

ASTM A213 T5 tubes are suitable for continuous service at elevated temperatures up to approximately 600 o C (1100 o F). This makes them a standard choice for boiler and superheater circuits.
