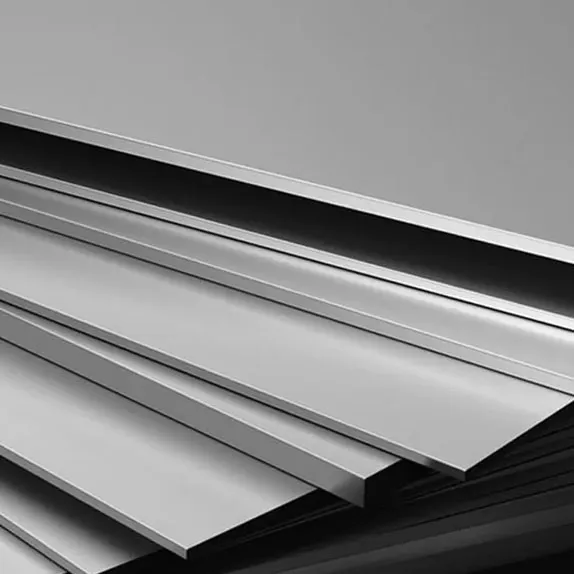

Specifications of Titanium Grade 2 Plates

The Titanium Grade 2 Plates specification, including surface finish, form and standard, is listed in the table below.

Parameter Specification
Standards ASTM B265 / ASME SB265
Size Range Width: 1000 mm to 3000 mm, Length: 2000 mm to 6000 mm
Wall Thickness 5 mm to 100 mm (Plates classified above 4.75 mm thickness)
Length Up to 6000 mm (custom sizes available on request)
End Type Mill Edge / Slit Edge
Surface Finish Hot Rolled (HR), Cold Rolled (CR), Pickled, Sandblasted, Polished
Form Plates, Sheets, Coils (depending on thickness)

Available Sizes of Titanium Grade 2 Plates

The available sizes of Titanium Grade 2 Plates are listed in the table given below.

Parameter Specification
Thickness 3/16" (4.8 mm) to 3.5" (88.9 mm)
Width Up to 48" (1,220 mm)
Length Up to 96" (2,440 mm)
Common Size 4' x 8' (1,220 mm x 2,440 mm)
Custom Sizes Cut-to-size plates available on request
Classification Thickness below 3/16" (4.8 mm) classified as sheet per ASTM B265
Processing Waterjet cutting and plasma cutting services available for custom dimensions

Available Surface Finishes

Titanium Grade 2 plates are available in 3 surface finishes.

  • Mill Finish
  • Pickled Finish
  • Polished Finish

Titanium Grade 2 Plates Price

Titanium Grade 2 plate prices range from approximately ₹2,200 to ₹3,500 per kg in India and $30 to $80 per kg in the US. Several factors, like plate thickness, dimensions, order quantity, surface finish, and the applicable specification (commercial vs aerospace vs medical grade) affect the final pricing.

Plate pricing is affected because of market conditions for titanium sponge and mill processing costs. For accurate, current pricing on your specific requirement, request a quote from our sales team with your size, quantity, and specification details.

Chemical Composition of Titanium Grade 2 Plates

The following table lists the chemical composition of Titanium Grade 2 plates, along with the percentage of each element.

Carbon C
0.08 max
Iron Fe
0.30 max
Oxygen O
0.25 max
Nitrogen N
0.03 max
Hydrogen H
0.015 max
Titanium Ti
Balance

Mechanical Properties of Titanium Grade 2 Plates

The mechanical strength of Titanium Grade 2 plates, including tensile strength, yield strength and elongation, is listed below.

345 (50)
MPa (ksi)
Tensile Strength (min)
275 (40)
MPa (ksi)
Yield Strength, 0.2% Offset (min)
20
%
Elongation (min)
Property Value
Tensile Strength (min) 345 MPa (50 ksi)
Yield Strength, 0.2% Offset (min) 275 MPa (40 ksi)
Elongation (min) 20%
Request a Quote for Titanium Grade 2 Plates Request a Quote

Equivalent Designations for Titanium Grade 2 Plates

International designations equivalent to Titanium Grade 2, including UNS and ISO, are listed in the table given below.

Standard Designation
UNS R50400
ISO ISO 5832-2
DIN 3.7035
EN EN 3.7035
JIS H4600 TP340C
AMS AMS 4902
BS BS TA2

Titanium Grade 2 Plates Applications

Titanium Grade 2 plates serve 5 major industrial sectors where corrosion resistance, light weight, and a high strength-to-weight ratio are critical.

Chemical Processing Equipment

CP Titanium Grade 2 plates are specified for reactor vessels, heat exchangers, and piping systems that handle harsh conditions.

Marine and Offshore

Offshore platforms, shipboard heat exchangers, and desalination condensers depend on Titanium Grade 2 plates.

Aerospace and Defence

Titanium Grade 2 plates are applied in airframe skins, brackets, and various other non-structural aerospace components.

Power Generation and Desalination

These grades are used for heat exchanger tube plates and condenser plates in power plants and desalination plants.

Medical Devices and Implants

ASTM F67 Grade 2 plates are used for surgical implant components, bone fixation plates, and dental abutments.

Titanium Grade 2 vs Grade 5 Plates

Buyers frequently compare these two grades for plate applications. The table below highlights the key differences between CP Grade 2 and the alloyed Grade 5 (Ti-6Al-4V). Grade 2 is the better choice for corrosion-focused applications where formability and weldability are priorities. Grade 5 suits high-strength structural components where fabrication demands are lower.

Property Grade 2 (CP) Grade 5 (Ti-6Al-4V)
Tensile Strength (min) 345 MPa (50 ksi) 895 MPa (130 ksi)
Yield Strength (min) 275 MPa (40 ksi) 828 MPa (120 ksi)
Elongation (min) 20% 10%
Formability Excellent Limited
Corrosion Resistance Excellent Good
Weldability Excellent (TIG/GTAW) Good (requires post-weld heat treatment)
Relative Cost Lower Higher

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Titanium Grade 2 plates from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Edge and corner protection with plastic padding
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Plate Bundle Yard Staging
Shipping packaging Plate Bundle Edge Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies titanium products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What sizes of Titanium Grade 2 Plates are available?+
Titanium Grade 2 plates come in thicknesses 3/16" (4.8 mm) to 3.5" (88.9 mm), with widths up to 48" (1,220 mm) and lengths up to 96" (2,440 mm). Custom cut-to-size plates are also available.
What is the price of Titanium Grade 2 plates per kg?+
Prices range from approximately INR 2,200 to INR 3,500 per kg in India and $10 and $70 per kilogram (USD). Final price depends on thickness, finish, quantity, and specification. Contact our sales team for a current quote tailored to your order.
Can Titanium Grade 2 Plates be welded?+
Titanium Grade 2 plates are highly weldable using TIG (GTAW) welding with proper argon gas shielding. The material's 20% elongation and excellent ductility make it one of the easiest titanium grades to fabricate. Back-purging with inert gas is necessary to prevent oxidation of the weld root.
What is the maximum service temperature for Titanium Grade 2 Plates?+
Ti Grade 2 plates maintain reliable mechanical strength up to 400 °F (204 °C) and resist oxidation up to 600 °F (316 °C). The melting point is 1,665 °C (3,029 °F), though sustained service above 204 °C may reduce tensile properties over time.
What is the difference between Titanium Grade 2 Plates and Grade 5 Plates?+
Grade 2 plates have 345 MPa tensile strength with 20% elongation and superior formability. Grade 5 (Ti-6Al-4V) has a tensile strength of 895 MPa and an elongation of 10%. Select Grade 2 for corrosion-critical applications, while Grade 5 is for high-strength structural requirements.
How are Titanium Grade 2 Plates cut to size?+
Titanium Grade 2 plates can be cut using waterjet, laser, plasma, or abrasive sawing methods. Waterjet cutting is preferred for thicker plates because it produces no heat-affected zone. Laser cutting works well for thinner gauges up to approximately 6 mm.
What is the density of Titanium Grade 2 Plates?+
Titanium Grade 2 has a density of 4.51 g/cm3 (0.163 lb/in3), which is approximately 56% of steel's density. This low weight makes Ti Gr 2 plates suitable for aerospace and marine applications where mass reduction is a priority.
Where can I buy Titanium Grade 2 Plates?+
Sachiya Steel International supplies Titanium Grade 2 plates in many thicknesses and provides full test reports with traceable material records. Our plates are manufactured according to ASTM B265 / ASME SB-265, AMS 4902, and ASTM F67 standards. Contact us for current stock, custom sizes, and competitive prices.
