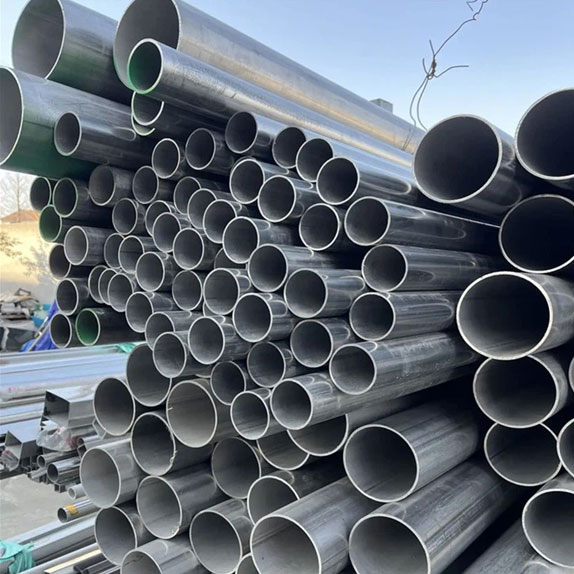

ASTM A312 TP316L Seamless Pipe Specification
SS 316L seamless pipes conform to ASTM A312 / ASME SA312 TP316L for austenitic stainless steel pipe in high-temperature and corrosive-service applications. The table below lists key specifications.
| Property | Details |
|---|---|
| Standard | ASTM A312 / ASME SA312 |
| Nominal Pipe Size | 1/2" NB to 16" NB (seamless) |
| Outer Diameter | 21.3 mm (1/2") to 406.4 mm (16") |
| Wall Thickness | Per schedule: SCH 5S, 10S, 20, 40S, 80S, 120, 160, XXS |
| Length | Single Random (5-7 m), Double Random (9-12 m), Cut Length |
| End Type | Plain End, Bevelled End, Threaded End |
| Surface Finish | Mill Finish, Annealed and Pickled (AP), Bright Annealed (BA), Polished |
| Form | Round, Square, Rectangular |
| Dimension Standard | ANSI B36.19 / ANSI B36.10 |
Stainless Steel 316L Seamless Pipe Schedule Chart (NPS 1/2" to 16")
Consult this chart for standard wall thickness and dimensions from ½" to 16".
Wall thickness increases with the schedule number to handle higher pressure ratings. We stock SCH 5S through SCH 160 and XXS, ensuring suitability for everything from low-pressure utility lines to high-stress process piping.
| NPS | OD (inch / mm) | SCH 10S WT | SCH 40S WT | SCH 80S WT |
|---|---|---|---|---|
| 1/2" | 0.840 / 21.3 | 0.083" | 0.109" | 0.147" |
| 1" | 1.315 / 33.4 | 0.109" | 0.133" | 0.179" |
| 2" | 2.375 / 60.3 | 0.109" | 0.154" | 0.218" |
| 4" | 4.500 / 114.3 | 0.120" | 0.237" | 0.337" |
| 8" | 8.625 / 219.1 | 0.148" | 0.322" | 0.500" |
| 12" | 12.750 / 323.8 | 0.180" | 0.375" | 0.500" |
| 16" | 16.000 / 406.4 | 0.188" | 0.375" (STD) | 0.500" (XS) |
Stainless Steel 316L Seamless Pipe Weight Chart
Refer to the following table for the theoretical weight of SS 316L seamless pipes. Pipe weight varies by outer diameter, wall thickness, and schedule. A 1" NB SCH 40S pipe weighs approximately 2.50 kg/m (1.68 lb/ft), while a 4" NB SCH 40S pipe weighs around 16.07 kg/m (10.80 lb/ft).
| NPS | SCH 10S (kg/m) | SCH 40S (kg/m) | SCH 80S (kg/m) |
|---|---|---|---|
| 1/2" | 1.00 | 1.27 | 1.62 |
| 1" | 2.09 | 2.5 | 3.24 |
| 2" | 3.93 | 5.44 | 7.48 |
| 4" | 8.37 | 16.07 | 22.32 |
| 8" | 20.06 | 42.55 | 64.64 |
| 12" | 35.98 | 73.86 | 97.44 |
| 16" | 47.16 | 93.2 (STD) | 123.3 (XS) |
What SS 316L Seamless Pipe Costs per Kg
SS 316L seamless pipe prices in India range from approximately ₹350 to ₹550 per kg and $1.20 to $5.00 per kilogram (in the US), depending on outer diameter, wall thickness, schedule, quantity, and surface finish. Seamless pipes carry a premium over welded equivalents, and polished finishes add 10–20% over mill finish pricing. Raw material costs on the LME directly influence rates, so prices don't stay fixed for long. Contact Sachiya Steel International for a current quote.
316L Chemistry: UNS S31603 Composition Limits
Alloy 316L (UNS S31603) chemical composition per ASTM A312/ASME SA312 is listed below.
Strength and Elongation of TP316L Seamless Pipe
The table below shows minimum mechanical property values for Grade 316L seamless pipe per ASTM A312/ASME SA312.
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (min) | 485 | MPa (70 ksi) |
| Yield Strength (min) | 170 | MPa (25 ksi) |
| Elongation (min) | 35 | % |
Matching 316L to a Local Standard
Order against the UNS number wherever the drawing allows it. S31603, 1.4404 and SUS 316L are the same material; what changes between them is the country, not the metal.
| Standard / Country | Designation |
|---|---|
| UNS | S31603 |
| European Union (EN) | 1.4404 / X2CrNiMo17-12-2 |
| Japan (JIS) | SUS 316L |
| China (GB) | 022Cr17Ni12Mo2 |
| France (AFNOR) | Z2CND17-12 |
| United Kingdom (BS) | 316S11 |
| Sweden (SS) | SS 2348 |
| Russia (GOST) | 03Kh17N14M2 |
Where Seamless Stainless Steel 316L Pipe Is Used
SS 316L seamless pipes serve major industry sectors where corrosion resistance, weldability, and pressure integrity are non-negotiable. Below are the primary applications.
Chemical and Petrochemical Industry
Transports acids and solvents in reactors and heat exchangers using molybdenum to resist pitting.
Pharmaceutical and Food Processing
Sanitary piping and orbital welding must satisfy the stringent FDA sanitation requirements.
Marine and Offshore Applications
Pitting-resistant 316L SS seamless pipe is needed in chloride-laden seawater. This grade provides long-term structural integrity to offshore platforms, desalination facilities, and shipboard pipe.
Oil and Gas Piping Systems
High-pressure process lines and downhole tubing in sour-service conditions use ASTM A312 TP316L seamless pipes. The grade handles temperatures up to 925°C (1700°F) in continuous service.
Shipping & Packaging
Heavy-Duty Wooden Box Packing
316L seamless pipe for pharmaceutical and chemical lines must arrive clean inside. Every length is capped at both ends before it leaves our yard.
- Heavy-duty wooden boxes or strapped bundles, with moisture barrier lining
- LLDPE stretch film wrapping on all bundles
- Plastic end caps on threaded and plain-end pipes
- Silica gel desiccants to minimise moisture exposure
- ISPM-15 compliant wooden packaging for export
Pipe Bundle Yard Staging
Container End-Cap Protection
Wrapped Export-Ready Bundles
We Export Worldwide
Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
