Specifications of Monel Tube

Refer to the following technical data for the material specifications of high-performance Monel Tubes.

Property Specification / Details
Standard ASTM B163, ASTM B165, ASME SB163/SB165
Outside Diameter (OD) 3.18 mm to 219.10 mm (1/8" to 8")
Grades Monel 400
Manufacturing Type Seamless, Welded, ERW, Fabricated
Testing Hydrostatic, Eddy Current, Ultrasonic, Visual Inspection

Monel Tube Sizes

Refer to the table below for the combined size ranges and dimensional specifications for seamless and welded Monel tubes.

Tube Type Outer Diameter (OD) Range Wall Thickness Range Length / Additional Details
Seamless Tube 3.18 mm to 219.10 mm (1/8" to 8") 0.35 mm to 6.00 mm Precision instrumentation and high-pressure service
Welded Tube 6.35 mm to 152 mm (1/4" to 6") 0.8 mm to 12.7 mm Extended lengths up to 26 metres available

Monel Tube Price

We price Monel tubes between ₹2,000–₹3,500/kg in India and $25–$50/kg internationally. Factors like wall thickness, outer diameter, and raw material markets influence the total. Send us your specs for a formal quote.

Request a Quote for Monel Tube Request a Quote

Monel Tube Grades

Monel tube is available in 1 grade: Monel 400 (UNS N04400).

Monel 400 Tube

Monel 400 tube is the standard grade with 70 ksi (480 MPa) tensile strength in an annealed condition. Its nickel-copper composition resists hydrofluoric acid, sulphuric acid, and seawater. It doesn't require age hardening and welds more readily than K-500.

Monel Tube Types

Monel tube comes in 4 configurations: seamless, welded, instrument, and condenser/heat exchanger. Each suits specific service conditions.

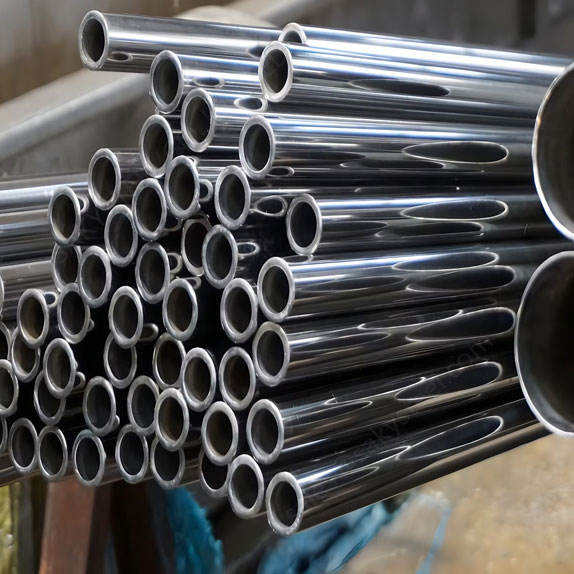

Monel Seamless Tube

Monel Seamless Tube

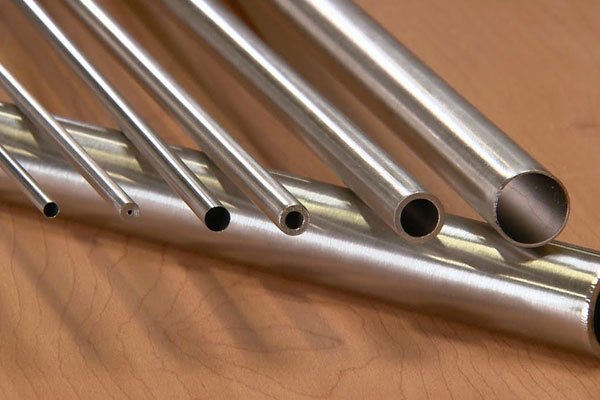

Monel Welded Tube

Monel Welded Tube

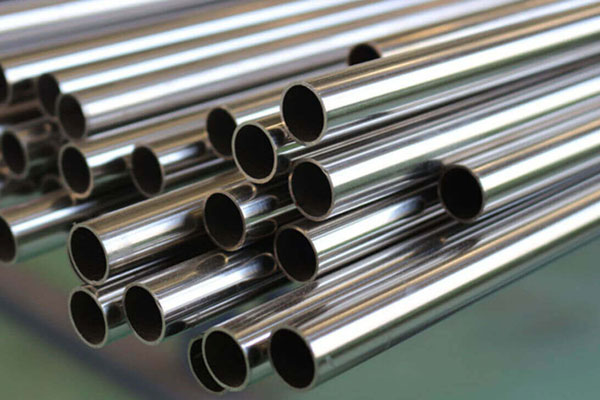

Monel Instrument Tubing

Monel Instrument Tubing

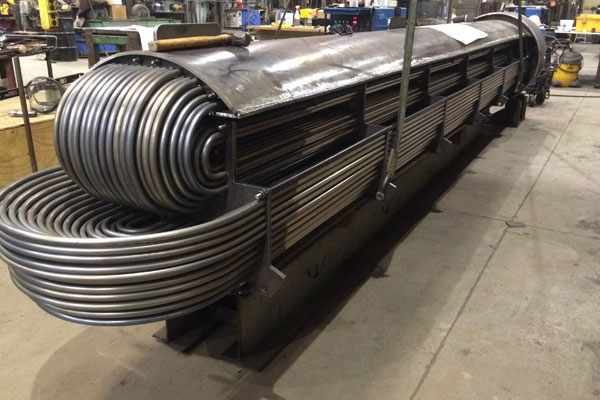

Monel Condenser & Heat Exchanger Tube

Monel Condenser & Heat Exchanger Tube

Monel Tube Industrial Applications

Monel tube serves 4 major industries: marine, chemical processing, oil and gas, and power generation.

Marine & Offshore Engineering

Monel 400 tube handles seawater piping, shipboard heat exchangers, and offshore hydraulic lines where chloride attack is constant.

Chemical & Petrochemical Processing

Monel tubes handle corrosive acids, alkalis, and high temperatures in heat exchangers, piping systems, alkylation units, and crude oil distillation.

Oil & Gas Industry

Downhole components and gas-handling systems in sour-service conditions rely on Monel tubing for its resistance to chloride stress corrosion cracking.

Power Generation

Condenser tubing per ASTM B163 serves fossil and nuclear power plants, feedwater heaters, and cooling systems in brackish water.

Get a Price for Monel Tubing Request a Quote

Shipping & Packaging

Main export packaging setup Heavy-Duty Wooden Box Packing
Export Packaging Standard

Monel tube is drawn to close tolerances on diameter and wall. Boxing, not loose bundling, is what keeps those tolerances intact through port handling.

  • Heavy-duty wooden boxes or strapped bundles, with moisture barrier lining
  • LLDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end tubes
  • Silica gel desiccants to minimise moisture exposure
  • ISPM-15 compliant wooden packaging for export
Bundle Yard Staging Tube Bundle Yard Staging
Bundle Edge Protection Container End-Cap Protection
Export-Ready Bundles Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies monel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What is Monel Tubing and what is it used For?+
Monel tubing is a nickel-copper alloy tube, predominantly Monel 400, utilised in marine, chemical processing, oil and gas, and power production due to its corrosion resistance to seawater and acids.
Is Monel Tube better than Stainless Steel Tube for corrosive environments?+
Monel 400 tube is better than SS 316L in seawater, hydrofluoric acid, and chloride-rich environments where stainless steel suffers pitting and chloride stress corrosion cracking.
What ASTM and ASME standards cover Monel Tube?+
Key standards are ASTM B165 / ASME SB-165 (seamless), ASTM B163 / ASME SB-163 (condenser tubes), and ASTM B730 / ASME SB-730 (welded). AMS 4574 covers aerospace tube.
How much does Monel Tube cost per Kg?+
Prices range from ₹2,000 to ₹3,500 per kg in India and $25 to $50 per kg internationally. Request a quote for current pricing.
What is the P-Number for Monel 400 Tube in ASME welding?+
Monel 400 is classified as P-Number 42 in the ASME Boiler and Pressure Vessel Code.
What are the pressure ratings for Monel 400 tubing?+
Pressure rating depends on OD and wall thickness. Pressure ratings are determined using ASME B31.3 design temperature, allowed stress, and corrosion allowance. A 1/4 inch OD x 0.065 inch wall tube is rated at 9,600 psig and a 1-inch OD tube with a 0.065 inch wall at 2,200 psig. Before ordering, check requirements against ASTM standards.
