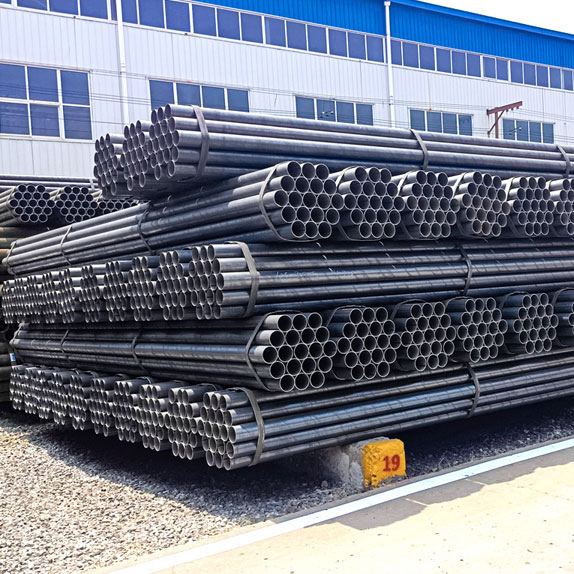

ASTM A179 Boiler Tubes Manufacturer & Supplier

ASTM A179 boiler tubes are seamless cold-drawn low-carbon steel tubes designed for heat exchangers, condensers, and similar heat transfer equipment. The standard, also designated ASME SA-179 and UNS K01200, covers tubes manufactured by cold drawing from low-carbon steel with a carbon content of 0.06 to 0.18% and manganese at 0.27 to 0.63%. Phosphorus and sulphur are each limited to 0.035% maximum.

These tubes offer a minimum tensile strength of 325 MPa (47 ksi), a minimum yield strength of 180 MPa (26 ksi), and a minimum elongation of 35%. Cold drawing produces a smooth surface finish and tight dimensional tolerances, both critical for efficient heat transfer.

Sachiya Steel International is a trusted manufacturer, supplier, stockist, and exporter of ASTM A179 boiler tubes based in Mumbai, India. With over 20 years of experience, we maintain a ready inventory of 1,500 to 2,000 metric tons and hold ISO 9001, ISO 14001, and ISO 45001 certifications.

Every shipment includes mill test certificates per EN 10204 3.1/3.2. We supply tubes with outer diameters from 1/8" (3.2 mm) to 3" (76.2 mm), in standard 6 m (20 ft) lengths or custom cut lengths. Our strong export packaging protects the tubes during sea shipping worldwide.

This page covers:

Specifications
Price
Chemical composition
Mechanical properties
Equivalent grades
Industrial applications
Grade Comparison
Shipping and packaging
Frequently asked questions

ASTM A179 / ASME SA-179 Specification

The following table explains the key specifications for ASTM A179 seamless cold-drawn boiler tubes, covering relevant standards, size range, product form, and delivery conditions.

Property	Details
Standards	ASTM A179 / ASME SA-179
Outside Diameter	3.2 mm to 76.2 mm (1/8" to 3")
Wall Thickness	Minimum wall per ASTM A179 specification
Length	6 m (20 ft) standard; cut-to-length available
Form	Seamless cold-drawn tube
Surface Condition	As-drawn or normalised
End Finish	Plain end (PE) standard

ASTM A179 Boiler Tube Sizes

ASTM A179 seamless tubes have accurate sizes, strong quality, and flexible lengths, making them ideal for heat exchangers, boilers, and other industrial uses.

Specification	Details
Outside Diameter (OD)	1/8" (3.2 mm) to 3" (76.2 mm)
Wall Thickness	Minimum per ASTM A179 specification
Standard Length	6 m (20 ft)
Cut-to-Length	Available on request

Standard Dimensions and Tolerances

ASTM A179 tubes are manufactured with tight dimensional tolerances for dependable performance, so buyers should provide precise measurements to ensure the best supply match.

Specification Aspect	Details / Recommendation
Production Tolerances	Tight OD and wall thickness tolerances as per ASTM A179 standard
Buyer Recommendation	Confirm exact OD, wall thickness, and length requirements at enquiry
Supply Options	Match from existing stock or arrange mill production

ASTM A179 Boiler Tubes Price List

ASTM A179 boiler tube prices range from ₹70 to ₹150 per kg in India and $0.50 to $4.00 per kg. Final price depends on tube size, length, order quantity, and current steel market prices. Surface finish and testing requirements also affect final cost. Contact our sales team for an updated quotation with delivery terms to your location.

ASTM A179 Chemical Composition

The chemical composition of ASTM A179 (UNS K01200) is listed below. ASTM A179 specifies only four elements; the low carbon limit supports weldability and cold-drawing formability.

Carbon C

0.06 - 0.18%

Manganese Mn

0.27 - 0.63%

Phosphorus P

0.035% max

Sulphur S

0.035% max

ASTM A179 Mechanical Properties

The table below lists the minimum mechanical properties of ASTM A179 / ASME SA-179 seamless boiler tubes.

80/551

MPa (ksi)

Tensile Strength (min)

35/241

MPa (ksi)

Yield Strength, 0.2% Offset (min)

Elongation (min)

Property	Imperial	Metric
Tensile Strength (min)	47 ksi	325 MPa
Yield Strength (min)	26 ksi	180 MPa
Elongation (min)	35%	35%

Request a Quote for ASTM A179 Boiler Tubes Request a Quote

ASTM A179 Equivalent Grades

ASTM A179 is recognised under several international designations. The table below maps each equivalent for procurement cross-referencing by buyers outside the United States.

Standard	Designation
EN 10216-1	P195TR1 (W.Nr. 1.0308) / P195TR2 (W.Nr. 1.0309)
DIN 17175	St 35.8 · Also: DIN 1629 St 35.4 (superseded)
BS 3059	Part 1 Grade 320 (superseded by EN)
JIS G3461	STB340 (STBH340)
GB/T 3639	Grade 10 · Also: GB/T 8163 Grade 10
IS 11714	Parts 1–5 (Steel Tubes for Heat Exchangers)

ASTM A179 Boiler Tube Applications

ASTM A179 heat exchanger tubes serve 3 primary industrial sectors.

Power Generation and Boiler Systems

A179 tubes line fire-tube and water-tube boilers in low-pressure power generation applications. Coal-fired and gas-fired plants use these tubes in economisers and feedwater heaters.

Petrochemical and Refinery Heat Exchangers

Refineries use ASTM A179 seamless tubes in shell-and-tube heat exchangers to cool process streams and maintain controlled operating temperatures.

HVAC and Condenser Systems

Many central chillers and industrial HVAC systems use ASTM A179 seamless condenser tubes for effective cooling and heat removal.

ASTM A179 vs ASTM A192 vs ASTM A210 Boiler Tubes

ASTM A179, A192, and A210 seamless tubes are used in heat exchangers and boilers. They are chosen based on the needed pressure, temperature, and strength.

ASTM Standard	Tube Type / Application	Key Features
ASTM A179	Cold-drawn seamless tubes	For heat exchangers and condensers
ASTM A192	Seamless tubes	High-pressure boiler service
ASTM A210	Medium-carbon seamless tubes	Higher-strength boiler and superheater applications

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect ASTM A179 Boiler Tubes from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Pipe Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What Sizes are Available for ASTM A179 Boiler Tubes?+

ASTM A179 seamless tubes are available in ODs from 1/8" (3.2 mm) to 3" (76.2 mm), with wall thicknesses set by the standard. Standard lengths are 6 m or cut-to-length.

What is the Difference Between ASTM A179 and ASTM A192 Boiler Tubes?+

A179 is for cold-drawn seamless tubes used in heat exchangers and condensers, while A192 is for seamless tubes used in high‑pressure boilers.

What is the ASME Equivalent of ASTM A179?+

ASME SA-179 is the ASME equivalent of ASTM A179 within the ASME Boiler and Pressure Vessel Code. They have the same chemical, mechanical, and dimensional requirements.

What is the Tensile Strength of ASTM A179 Tubes?+

The ASTM A179 tubes have a minimum tensile strength of 325 MPa (47 ksi).

Can ASTM A179 Tubes be used in Heat Exchangers?+

Yes. Heat exchanger service is the primary intended application.

What is the Price of ASTM A179 Boiler Tubes?+

ASTM A179 boiler tube prices range from ₹70 to ₹150 per kg in India and $0.50 to $4.00 per kg. The final price depends on tube size, length, how many you order, and current steel prices.

What Testing is Required for ASTM A179 Tubes?+

ASTM A179 tubes must pass hydrostatic, flattening, flaring, and hardness tests. Every tube is tested to this standard before shipping.

What are the International Equivalents of ASTM A179?+

International equivalents include EN 10216-1 P195TR1/P195TR2 (Europe), JIS G3461 STB340 (Japan), BS 3059 Part 1 Grade 320 (UK), GB/T 3087 Grade 10 (China), and IS 1914 (India).
