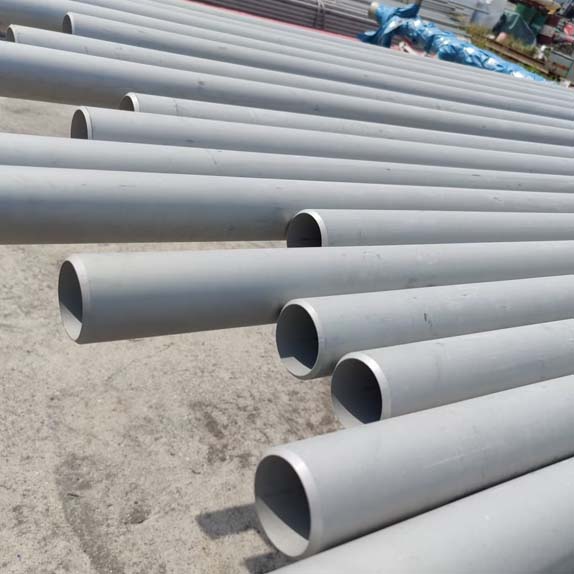

Specifications of Stainless Steel 310S Welded Pipe
The specifications of Stainless Steel 310S welded pipe, including standards, length and surface finish, are listed in the table below:
| Specification | Details |
|---|---|
| Standards |
ASTM A312 / ASME SA312 (Seamless & Welded Austenitic SS Pipes) ASTM A358 (Electric-Fusion-Welded Pipes for high-temperature service) ASTM A778 (Welded, Unannealed Austenitic SS Tubular Products) ASTM A554 (Square and Rectangular mechanical tubing, to 16” OD) |
| Size Range | 1/8” NB to 24” NB (DN 6 to DN 600); EFW to 100” NB per ASTM A358 |
| Wall Thickness | SCH 5S, 10S, 20, 40S, 60, 80S, 100, 120, 140, 160, XXS (as per ASME B36.19M / B36.10M) |
| Length |
Single Random: 5–7 metres Double Random: 10–13 metres Standard: 6 metres Custom cut lengths available |
| End Type | Plain End (PE), Bevelled End (BE), Threaded |
| Surface Finish | Pickled & Annealed, Bright Annealed, Polished (180G, 320G, 400G, 600G), Mill Finish |
| Form | Round Pipes, Square Pipes, Rectangular Pipes |
S31008 Welded Pipe Sizes and Schedules
We stock the following dimensional range. Custom-cut lengths are available per client specification. EFW pipe per ASTM A358 / ASME SA-358 extends the range to larger diameters, from 8″ to 100″ NPS, for high-pressure applications.
| Parameter | Range |
|---|---|
| Nominal Pipe Size (NPS) | 1/8″ to 24″ |
| Outer Diameter (OD) | 10.3 mm to 610 mm |
| Wall Thickness | 1.24 mm (1/8″ SCH 10S) to 59.54 mm (24″ SCH 160) |
| Schedules | SCH 5S, 10S, 20, 40S, 60, 80S, 100, 120, 140, 160, XXS |
| Length | Single random 5 to 7 metres, double random 10 to 13 metres, cut length |
SS 310S Welded Pipe Size Chart
Wall thickness per ASME B36.19M. The chart covers 1/8″ to 12″, the range in which B36.19M defines SCH 40S and 80S; from 14″ to 24″ the S-schedules are 5S and 10S only, and heavier walls follow ASME B36.10M.
| NPS | OD (mm) | SCH 10S WT (mm) | SCH 40S WT (mm) | SCH 80S WT (mm) |
|---|---|---|---|---|
| 1/8″ | 10.3 | 1.24 | 1.73 | 2.41 |
| 1/2″ | 21.3 | 2.11 | 2.77 | 3.73 |
| 1″ | 33.4 | 2.77 | 3.38 | 4.55 |
| 2″ | 60.3 | 2.77 | 3.91 | 5.54 |
| 4″ | 114.3 | 3.05 | 6.02 | 8.56 |
| 6″ | 168.3 | 3.40 | 7.11 | 10.97 |
| 8″ | 219.1 | 3.76 | 8.18 | 12.70 |
| 10″ | 273.1 | 4.19 | 9.27 | 12.70 |
| 12″ | 323.8 | 4.57 | 9.53 | 12.70 |
SS 310S Welded Pipe Weight Chart
Weight per metre calculated as (OD − wall) × wall × 0.02507, the constant for the 7.98 g/cm³ density of 310S. Mill weights vary within the tolerances ASTM A312 allows.
| NPS | SCH 10S (kg/m) | SCH 40S (kg/m) | SCH 80S (kg/m) |
|---|---|---|---|
| 1/8″ | 0.28 | 0.37 | 0.48 |
| 1/2″ | 1.02 | 1.29 | 1.64 |
| 1″ | 2.13 | 2.54 | 3.29 |
| 2″ | 4.00 | 5.53 | 7.61 |
| 4″ | 8.51 | 16.34 | 22.69 |
| 6″ | 14.06 | 28.73 | 43.27 |
| 8″ | 20.30 | 43.25 | 65.72 |
| 10″ | 28.25 | 61.31 | 82.91 |
| 12″ | 36.57 | 75.08 | 99.05 |
Difference Between 310S ERW and EFW Pipe
Both forms are welded, but they are made differently. ERW pipe is cold-formed from strip and the seam is fused by resistance heating, with no filler metal added; it covers the smaller sizes under ASTM A312. EFW pipe is rolled from plate and the seam is joined with filler metal, usually by submerged-arc welding, which is what makes the large diameters possible under ASTM A358. On this page that puts ERW across 1/8″ to 24″ NPS and EFW from 8″ NPS upward, so in the 8″ to 24″ overlap either can be supplied.
The choice matters in pressure design. ASME B31.3 applies a weld joint quality factor to any seam: welded pipe to ASTM A312 carries 0.85, and radiography does not raise it. ASTM A358 Class 1, fully radiographed, reaches 1.00: the same allowance as seamless. Where the design pressure is tight, that factor, not the grade, is usually what decides between the two.
310S SS Welded Pipe Rate per Kg
In India, SS 310S welded pipe usually costs ₹500–800 per kg, depending on the pipe’s size, thickness, quantity, and finish. That is about $5.88 to $9.41 per kg for export, moving with nickel and chromium commodity rates. The additional cost compared to 304 is due to its higher chromium (24–26% vs 18–20%) and nickel (19–22% vs 8–10.5%) levels. Sachiya Steel International provides competitive rates through mill-direct sourcing. Contact us for a quotation for your required size and schedule.
Chemical Composition of ASTM A312 TP 310S Welded Pipe
The table below lists the chemical composition of TP 310S welded pipe along with its proportion in percentage. The 25Cr-20Ni balance gives AISI 310S its stable austenitic structure at elevated temperatures. 310S has a lower carbon content than 310 (max 0.08% vs 0.25%), which reduces susceptibility to sensitisation during welding.
1.4845 Welded Pipe Mechanical Properties
The mechanical properties of stainless steel 310S welded pipe, including tensile strength and elongation, are listed in the table below. SA-312 TP 310S pipe handles structural and pressure loads in high-temperature piping without deformation at these values.
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (min) | 515 / 75 | MPa / ksi |
| Yield Strength, 0.2% Offset (min) | 205 / 30 | MPa / ksi |
| Elongation (min) | 35 | % in 2″ (50.8 mm) |
Equivalent Designations for Stainless Steel 310S Welded Pipe
International designations equivalent to this grade, such as UNS, Werkstoff Nr and ISO, are listed below:
| Standard | Designation |
|---|---|
| UNS | S31008 |
| EN/DIN | X8CrNi25-21 |
| Werkstoff Nr. | 1.4845 |
| EN (BS) | 310S24 |
| AFNOR (France) | Z8CN25-20 |
| JIS (Japan) | SUS310S |
| ISO | X8CrNi25-21 |
| GB (China) | 06Cr25Ni20 |
| GOST (Russia) | 20Kh23N18 |
Industrial Applications of 310S Welded Pipe
310S welded pipe serves 4 primary industrial sectors where sustained heat and oxidising conditions demand a high-chromium, high-nickel alloy:
Furnace and Heat Treatment Equipment
Used for carrying process gases and housing radiant-tube assemblies in continuous annealing furnaces, roller hearth kilns, and batch heat treatment ovens operating at elevated temperatures.
Chemical and Petrochemical Processing
Used in reformer outlet manifolds, catalyst regeneration loops, and high-temperature oxidising process gas streams.
Power Generation
Used in superheater tubing connections, boiler ductwork, and ash-handling systems in coal and biomass power plants.
Food Processing Equipment
Used in high-temperature sterilisation autoclaves and baking oven exhaust systems operating under repeated thermal cycles.
310S vs 310 Stainless Steel Welded Pipe
Stainless Steel 310 welded pipe and 310S have different carbon content, affecting weldability, corrosion resistance, and high-temperature performance in industrial applications.
| Parameter | Stainless Steel 310 | Stainless Steel 310S |
|---|---|---|
| UNS Designation | S31000 | S31008 |
| Carbon Content | Up to 0.25% | Max 0.08% |
| Key Difference | Higher carbon content | Low-carbon variant of 310 |
| Welding Behaviour | Prone to chromium carbide precipitation | Reduced chromium carbide precipitation |
| Intergranular Corrosion Resistance | Lower (risk of sensitisation) | Higher in the as-welded condition |
| Suitability for Welded Applications | Not recommended for corrosive/wet environments | Preferred for welded pipe applications |
| High-Temperature Strength | Slightly higher due to higher carbon | Slightly lower compared to 310 |
| Sensitisation Risk | Higher | Lower |
310S vs 304 Stainless Steel Pipe
Stainless Steel 310S and 304 welded pipe have different alloy compositions, temperature resistance, and price levels, so each is better suited to its own range of heat-focused industrial uses.
| Parameter | Stainless Steel 310S | Stainless Steel 304 |
|---|---|---|
| Chromium Content | 24–26% | 18–20% |
| Nickel Content | 19–22% | 8–10.5% |
| Thermal Performance | Very good for high-temperature service | Moderate high-temperature capability |
| Max Continuous Service Temperature | Up to 1150°C | Up to ~925°C |
| Cost | 2–3× higher due to alloy content | More economical |
| Suitable Operating Range | Above 900°C applications | Best below 900°C |
| Application Suitability | High-temperature, heat-resistant environments | General-purpose, moderate heat applications |
| Key Advantage | Better heat resistance | Cost-effective for lower temperatures |
