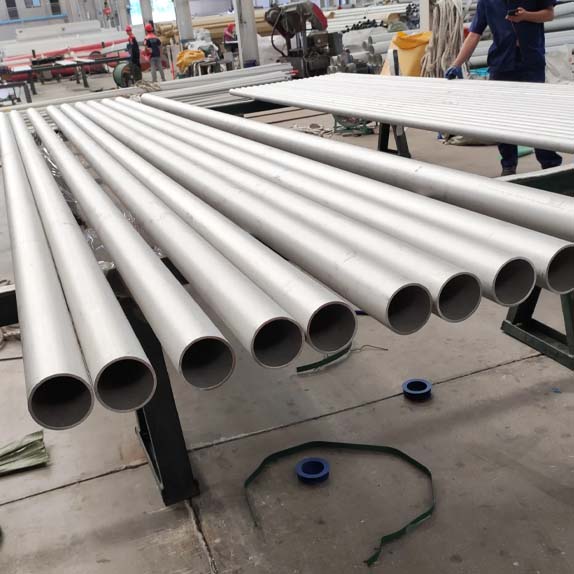

Hastelloy Pipes Manufacturer & Supplier

Hastelloy pipes are nickel-molybdenum-chromium alloy pipes designed for severe corrosion service in chemical and industrial settings. They comply with ASTM B622 / ASME SB-622 (seamless) and ASTM B619 / ASME SB-619 (welded). High molybdenum content (up to 16% in C276) delivers strong resistance to pitting, crevice corrosion, and stress-corrosion cracking. It has a minimum tensile strength of 100 ksi (690 MPa) and a yield strength of 41 ksi (283 MPa).

Sachiya Steel International is a trusted Hastelloy pipes manufacturer, supplier, and exporter in Mumbai, India. We have over 20 years of experience and hold ISO 9001, 14001, and 45001 certifications. We also keep 1,500 to 2,000 metric tons in ready stock. Our company specialises in Hastelloy C276 pipes. Sizes include 1/8" NB to 12" NB in schedules 5S through XXS. Hastelloy pipes serve chemical processing, oil & gas, pharmaceutical & biotech, and pollution control & waste treatment industries. Mill test certificates per EN 10204/3.1B are included with every order.

This page covers:

Specifications
Pricing
Applicable Standards and Grades
Forms
Industrial Applications
Hastelloy vs Inconel
Shipping and Packaging
Frequently Asked Questions

Specifications of Hastelloy Pipes

Hastelloy pipe specifications, including standards, dimensions, forms, finishes, and more, are covered in the table below.

Parameter	Specification / Details
Material Grades	Hastelloy C276
Standards	Seamless: ASTM B622 Welded: ASTM B619
Pipe Type	Seamless / Fusion Welded / Fabricated
Size Range (Seamless)	1/8" NB to 12" NB
Size Range (Welded)	6" NB to 48" NB
Wall Thickness	SCH 5S, 10S, 40S, 80S, 160, XXS (as per ASME B36.19M)
Length	Single Random, Double Random, Cut Length
End Type	Plain End (PE), Bevelled End (BE), Threaded
Form	Round, Square, Rectangular, Hydraulic
Surface Finish	Annealed & Pickled, Polished, Bright Annealed
Manufacturing Process	Cold Drawn / Hot Rolled

Hastelloy Pipe Sizes

Hastelloy pipes come in sizes 1/8" NB (6 mm) to 24" NB (600 mm) and in schedules 5S, 10S, 40S, 80S, 160, and XXS.

Nominal Bore	Outside Diameter	Schedule
1/2" (15 mm)	21.3 mm / 0.840"	5S, 10S, 40S, 80S
1" (25 mm)	33.4 mm / 1.315"	5S, 10S, 40S, 80S
2" (50 mm)	60.3 mm / 2.375"	5S, 10S, 40S, 80S, 160
4" (100 mm)	114.3 mm / 4.500"	5S, 10S, 40S, 80S, 160
6" (150 mm)	168.3 mm / 6.625"	5S, 10S, 40S, 80S

Sizes above 12" NB are supplied on a made-to-order basis.

Hastelloy Pipe Price

Hastelloy pipe prices range from Rs. 1,270 to Rs. 24,800/kg in India and $40 to $80/kg internationally. C-276 costs 10 to 15% less than C-22. Compared to 316L stainless steel, Hastelloy costs 4 to 6 times more, but a longer service life lowers the total cost of ownership. Contact us for current pricing.

Applicable Standards and Grades for Hastelloy Pipes

Seamless pipes conform to ASTM B622 / ASME SB-622; welded pipes to ASTM B619 / ASME SB-619.

Standard	Product Form
ASTM B622	Seamless pipe and tube
ASTM B619	Welded pipe
ASTM B626	Welded tube
ASME B36.19M	Pipe dimensions

Hastelloy Pipe Grades

At Sachiya Steel International, we provide Hastelloy pipes in the grade C-276. It handles the widest range of media among the other Hastelloy grades.

Hastelloy C-276 Pipes (ASTM B622 / ASTM B619)

Hastelloy C-276 is the most widely specified piping grade, resisting pitting and stress-corrosion cracking in oxidising and reducing media.

Hastelloy Pipe Forms

Hastelloy pipes are supplied in two primary forms: seamless and welded.

Seamless Hastelloy Pipes

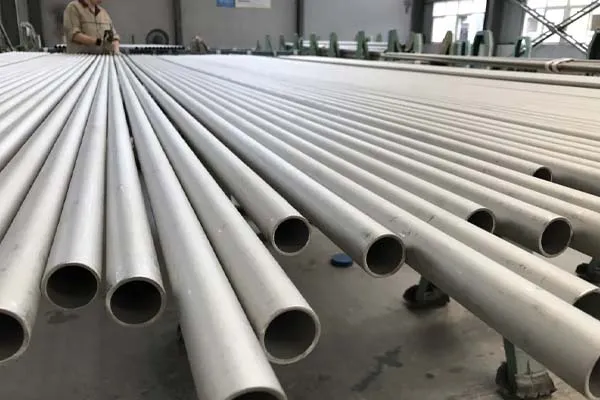

Welded Hastelloy Pipes

Welded Hastelloy pipes are formed from rolled strip and welded longitudinally, then solution-annealed. Diameters above 8" NB are more cost-effective in welded form.

Hastelloy Pipe Industrial Applications

Hastelloy pipes serve chemical processing, oil and gas, pharmaceutical, and pollution control sectors.

Chemical Processing

Hastelloy C-276 pipes handle hydrochloric acid, sulphuric acid, and wet chlorine gas in reactors and transfer lines.

Oil & Gas Industry

Sour gas wells and offshore platforms require NACE-compliant Hastelloy piping for chloride-bearing conditions.

Pharmaceutical & Biotech

Pharmaceutical plants use Hastelloy C-22 pipes in hygienic piping per ASME BPE standards.

Pollution Control & Waste Treatment

FGD scrubbers and waste incineration plants use Hastelloy piping for acidic condensates.

Get the Best Price on Hastelloy PipesRequest a Quote

Hastelloy Pipes vs Inconel Pipes

Hastelloy pipes perform well in chemical corrosion resistance; Inconel pipes suit high-temperature service. Key differences are below.

Parameter	Hastelloy (C-276)	Inconel (625)
Primary strength	Chemical corrosion resistance	High-temperature strength
Best for	Acid processing, chloride media	Exhaust systems, furnace piping
Mo content	15 to 17%	8 to 10%
Max service temp	677 degrees C (1250 degrees F)	982 degrees C (1800 degrees F)

For corrosive chemical piping, Hastelloy C-276 outperforms Inconel 625. For high-temperature service, Inconel is the preferred choice.

Shipping and Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect hastelloy pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Pipe Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies hastelloy products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions About Hastelloy Pipes

What is Hastelloy Pipe used for?+

Hastelloy pipe is used in chemical processing, oil and gas, pharmaceutical, and pollution control applications requiring acid and chloride resistance.

Which is better for pipes, Inconel or Hastelloy?+

Hastelloy pipes are better for chemical corrosion resistance. Inconel suits applications above 700 °C.

Can Hastelloy Pipes be welded?+

Yes. Hastelloy pipes have excellent weldability due to low carbon content. Use matching filler metals such as ERNiCrMo-4 for C-276.

What sizes are Hastelloy pipes available in?+

Hastelloy pipes are available from 1/8" NB to 24" NB in schedules 5S through XXS.

What ASTM standard covers Hastelloy Pipes?+

Seamless Hastelloy pipes are covered by ASTM B622 / ASME SB-622. Welded pipes fall under ASTM B619 / ASME SB-619.

What is the price of Hastelloy pipes per kg?+

Prices range from Rs. 1,270 to Rs. 24,800/kg in India and $40 to $80/kg internationally, depending on grade, size, and quantity.

What is the difference between Hastelloy C-276 and C-22 Pipes?+

C-276 offers broader corrosion resistance across mixed media. C-22 has higher chromium (20 to 22.5%) for better oxidising-acid resistance. C-276 is more available and cost-effective.

Are Seamless or Welded Hastelloy Pipes better?+

Seamless pipes (ASTM B622) are preferred for high-pressure service. Welded pipes (ASTM B619) cost less at larger diameters.
