Duplex Steel Pipe Manufacturer & Supplier

Duplex stainless steel pipe is a ferritic-austenitic stainless steel conduit with a two-phase microstructure. This structure gives it a yield strength about twice that of standard austenitic grades, which makes it useful where higher pressure ratings or thinner wall sections are needed. It is manufactured to ASTM A790 / ASME SA-790.

Available grades include 2205 (UNS S32205 / S31803). Its chromium, molybdenum and nitrogen content together give it strong resistance to pitting and crevice corrosion, particularly in chloride-heavy environments. Compared to austenitic grades, thermal conductivity is improved. Additionally, the lower nickel content, when compared to grades like 316L, helps to stabilise material costs. Grade 2205 has a PREN (Pitting Resistance Equivalent Number) of approximately 35, which makes it suitable for oil and gas, chemical processing, and desalination applications.

Sachiya Steel International is a manufacturer, supplier, stockist, and exporter of Duplex steel pipe based in Mumbai, India. With over 2 decades of experience and 1,500 to 2,000 metric tons in ready stock, our ISO 9001, ISO 14001, and ISO 45001 certified operations supply seamless and welded DSS pipe from OD 1/8" NB to 48" NB. Duplex steel pipe is available in both seamless and welded form, with full mill test certificates as per EN 10204 3.1 / 3.2.

The following topics are mentioned in detail in this page:

Specifications
Pricing
Pipe Grades
Forms
Industrial Applications
Grade Comparison
Shipping & Packaging
Frequently Asked Questions

Duplex Stainless Steel Pipe Specification

Duplex stainless steel pipes are made according to international standards for grade, size, surface finish, and testing, so they work reliably even in tough conditions.

Parameter	Details
Standard	ASTM A790 / ASME SA-790
Grades	2205 (UNS S31803 / S32205)
Outer Diameter	NPS 1/8" (10.3 mm OD) to NPS 48" (1219 mm OD)
Wall Thickness	0.5 mm to 20 mm
Schedule	SCH 5, SCH 10, SCH 40, SCH 80, STD
Length	Single Random (4-7 m), Double Random (7-14 m), Cut to Length
Form	Seamless, Welded (ERW, EFW)
End Type	Plain End, Bevelled End, Threaded
Finish	Mill Finish, Pickled & Annealed, Polished

Duplex Stainless Steel Pipe Sizes

We stock duplex stainless steel pipe in both seamless and welded types, covering a wide range of sizes, wall thickness and schedules.

Parameter	Seamless	Welded
OD Range	NPS 1/8" to 8"	5.0 mm to 1219.2 mm
NB Range	1/2" NB to 8" NB	Up to 48" NB
Wall Thickness	0.5 mm to 20 mm	0.5 mm to 20 mm
Available Lengths	Single Random, Double Random, Cut Lengths	Single Random, Double Random, Cut Lengths
Available Schedules	SCH 5, SCH 10, SCH 30, SCH 40, STD, SCH 80	SCH 5, SCH 10, SCH 30, SCH 40, STD, SCH 80

Request a Quote for Duplex Stainless Steel PipeRequest a Quote

Duplex Stainless Steel Pipe Price

Duplex stainless steel pipe (grade 2205) usually costs about ₹340-500 per kg (roughly $3.05-$5.95 per kg) in India.

Pricing depends on grade, OD, wall thickness, quantity and form. Seamless pipes are generally priced higher than welded ones. Imported material and mill-certified pipes with full test reports also affect the final cost.

Duplex Stainless Steel Pipe Grades

We provide duplex SS pipe in the following grade.

Grade 2205

Grade 2205 is the most widely used duplex pipe grade. It has a PREN of about 35, so it works well in chloride-rich environments such as oil and gas, chemical processing, and desalination plants.

Duplex Steel Pipe Forms

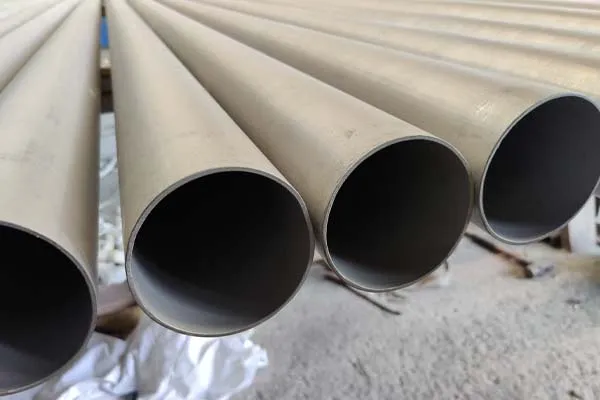

Seamless Duplex Steel Pipe

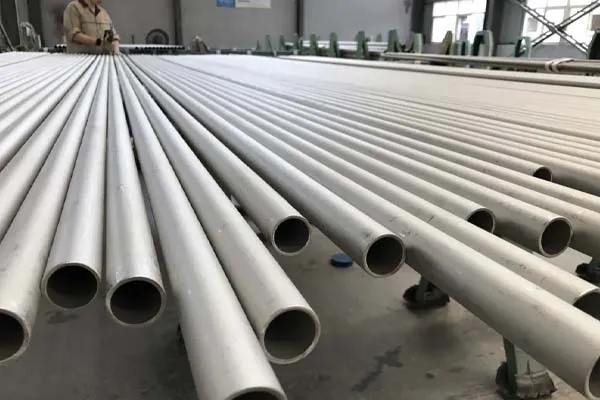

Welded Duplex Steel Pipe

Industrial Applications of Duplex Steel Pipe

Duplex stainless steel pipe is used across several demanding industries where corrosion resistance, strength and long service life are required under harsh operating conditions.

Oil and Gas

Subsea flowlines, topside piping and riser systems all rely on duplex grades for offshore platform service.

Chemical and Petrochemical Processing

Process piping for acids and chlorides uses duplex pipe, along with heat exchangers.

Desalination and Water Treatment

High-chloride feedwater and brine require the pitting resistance of duplex 2205 for smoother functioning in moist environments.

Marine and Offshore

Seawater cooling systems and ballast piping on vessels use duplex pipe. Fire-fighting circuits are another common application.

Duplex Steel Pipe vs 316 Stainless Steel Pipe

The table below lists the performance differences between Stainless Steel 316 pipe and SS duplex pipes.

Property	Duplex 2205	316 Stainless Steel
Yield Strength (min)	450 MPa (65 ksi)	~205 MPa (30 ksi)
Tensile Strength (min)	620 MPa (90 ksi)	~515 MPa (75 ksi)
PREN	~35	~25
Chloride SCC Resistance	High	Moderate
Relative Cost per kg	Higher	Lower

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect duplex steel pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Plastic end caps on threaded and plain-end pipes
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Pipe Bundle Yard Staging

Container End-Cap Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies duplex steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What is Duplex stainless steel pipe?+

Duplex stainless steel pipe is a ferritic-austenitic pipe with a dual-phase microstructure per ASTM A790 / ASME SA-790.

What is the ASTM code for Duplex stainless steel pipe?+

ASTM A790 / ASME SA-790 covers seamless and welded pipe. ASTM A928 / ASME SA-928 covers EFW duplex pipe.

What grades are available for Duplex stainless steel pipe?+

Sachiya Steel stocks duplex steel pipe in the grade 2205 (UNS S32205/S31803)

What sizes are available for Duplex steel pipe?+

Seamless pipe ranges from 1/2" NB to 8" NB (4-219 mm OD). Welded pipe goes up to 48" NB (1219.2 mm OD).

What is the price of Duplex stainless steel pipe?+

Grade 2205 is approximately ₹340-500 per kg in India and internationally $3.05-$5.95. Cost varies by size, schedule, form and quantity.

Is Duplex stainless steel pipe better than 316 stainless steel pipe for corrosive environments?+

Yes. Duplex stainless steel pipe is stronger and more corrosion-resistant than 316, allowing thinner walls and longer life, which often compensates for its higher initial price.

In which schedules is Duplex pipe schedule chart?+

Duplex stainless steel pipes are available in schedules SCH 5, 10, 20, 30, 40, STD and 80, and their wall thickness changes with pipe diameter and schedule as per ASTM A790.

What welding considerations apply to Duplex stainless steel pipe?+

Controlled heat input and interpass temperature limits maintain the phase balance. Use filler metals that are compatible, and ensure welding procedures are pre-qualified according to ASME standards.
