Monel Pipe Specifications
Monel pipe conforms to ASTM B165 / ASME SB-165 for seamless and ASTM B725 / ASME SB-725 for welded construction. The table below lists key specifications.
| Property | Details |
|---|---|
| Standards | ASTM B165 / ASME SB-165 (Seamless), ASTM B725 / ASME SB-725 (Welded) |
| Grade | Monel 400 (UNS N04400), Monel K-500 (UNS N05500) |
| Size Range | 1/8 inch to 26 inch NB (4 to 660 mm OD) |
| Schedules | 5, 5S, 10, 10S, 20, 40, 40S, 80, 80S, 120, 160, XXH |
| Length | Single Random, Double Random, Cut-to-Length |
| Form | Seamless, Welded, ERW |
| End Type | Plain End, Bevelled End |
Monel Pipe Sizes and Dimensions
Standard size range for seamless and welded Monel pipes used in industrial applications.
| Parameter | Seamless Pipe Range | Welded Pipe Range |
|---|---|---|
| Nominal Bore (NB) | 1/8" to 8" | Up to 26" |
| Outer Diameter (OD) | 4 mm to 219 mm | Up to 660 mm |
| Wall Thickness | 0.5 mm to 20 mm | 0.5 mm to 20 mm |
| Form | Seamless | Welded |
Pipe Schedule and Wall Thickness
Available pipe schedules define wall thickness options for different pressure and service conditions.
| Pipe Type | Available Schedules |
|---|---|
| Seamless Pipe | 5, 5S, 10, 10S, 20, 40, 40S, 80, 80S, 120, 160, XXH |
| Welded Pipe | 5, 10, 20, 40, 80 |
Monel Pipe Weigh Chart
Typical weight reference for standard Monel pipe size and schedule.
| Pipe Size | Schedule | Type | Weight (kg/m) | Weight (lb/ft) |
|---|---|---|---|---|
| 1 inch | SCH 40 | Seamless | 2.50 | 1.68 |
Monel Pipe Price
In India, Monel pipe price starts from approximately Rs 300/Kg. International prices are $20 to over $50 per kg. Monel pipe pricing varies with diameter, wall thickness, schedule, and quantity. Prices fluctuate with LME nickel rates; contact us for a current quote.
Applicable Standards and Grades of Monel Pipes
Key international standards covering Monel pipe manufacturing and quality requirements.
| Standard / Code | Description |
|---|---|
| ASTM B165 / ASME SB-165 | Seamless nickel-copper alloy pipe (UNS N04400) |
| ASTM B725 / ASME SB-725 | Welded nickel-copper alloy pipe |
| AMS 4574 | Aerospace material specification |
Monel Pipe Grades
Monel pipe is available in two grades: Monel 400 (UNS N04400) and Monel K-500 (UNS N05500).
Monel 400 Pipe
Monel 400 contains approximately 63% nickel and 28-34% copper, strengthened through cold working only. Resistance to seawater, hydrofluoric acid, and caustic solutions is excellent from subzero to 538 0C.
Monel K-500 Pipe
Monel K-500 is an age-hardenable variant with aluminium and titanium additions. It achieves higher tensile strength and hardness than Monel 400 after precipitation hardening, while retaining comparable corrosion resistance.
Types of Monel Pipe
Monel pipe is produced in two primary types: seamless pipe (ASTM B165) and welded pipe (ASTM B725).

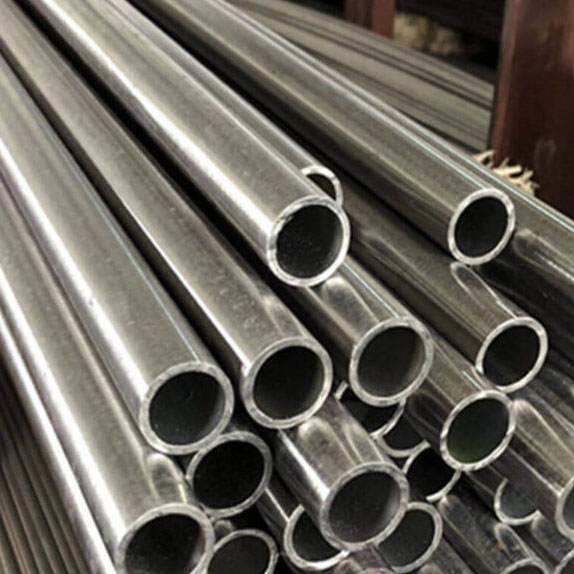

Monel Seamless Pipe

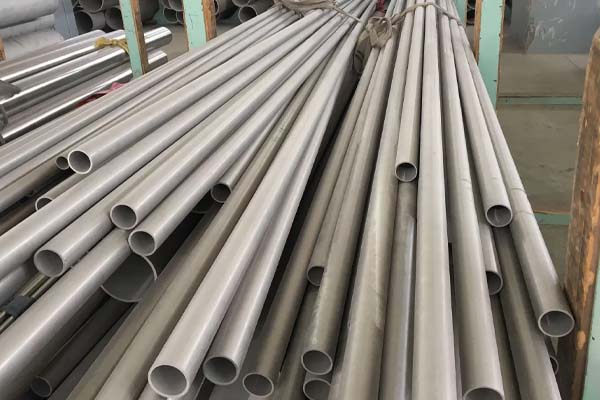

Monel Welded Pipe
Monel Pipe Industrial Applications
Monel pipe finds use where reducing acids, seawater, and high-velocity brine demand corrosion resistance at temperatures up to 538 °C.
Marine Engineering
Monel pipe serves in seawater piping systems, shipboard fire mains, and desalination condenser tubing. Chloride-induced corrosion resistance makes it a standard choice.
Chemical Processing
Chemical plants specify Monel 400 pipe for hydrofluoric acid, caustic soda, and seawater handling. Heat exchangers in HF alkylation units are a common installation.
Oil & Gas
Sour gas facilities and offshore platforms use Monel pipe where hydrogen sulfide and chloride-bearing fluids are present.
Monel Pipe vs Inconel Pipe
The selection between Monel and Inconel pipe depends on the corrosive media and operating temperature.
| Parameter | Monel Pipe (Ni-Cu) | Inconel Pipe (Ni-Cr) |
|---|---|---|
| Primary Alloying Element | Copper (28 to 34%) | Chromium (14 to 25%) |
| Best Suited For | Reducing acids, seawater, HF acid | Oxidising environments, high temperature |
| Max Service Temperature | 538 degrees C (1,000 degrees F) | Above 650 degrees C (1,200 degrees F) |
| Base Alloy System | Nickel–Copper | Nickel–Chromium |
| Key Alloying Role | Copper improves resistance in reducing media | Chromium provides oxidation and scaling resistance |
| Corrosion Environment Focus | Reducing acids, seawater | Oxidising environments, high-temperature exposure |
| Fabrication | Relatively easier to machine | Work hardening makes machining more demanding |
| Weldability | Good with standard procedures | Good, but requires tighter process control |
| Cost Range | Lower to moderate | Moderate to high |
| Typical Applications | Marine, chemical processing | Heat exchangers, aerospace, high-temp systems |
Monel pipe is the better option for reducing acid and marine environments, while Inconel suits oxidising conditions at higher temperatures.
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect monel pipe from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Plastic end caps on threaded and plain-end pipes
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Pipe Bundle Yard Staging
Container End-Cap Protection
Wrapped Export-Ready Bundles
We Export Worldwide
Sachiya Steel International supplies monel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.
