Stainless Steel Shim Sheet Specifications

The table below shows stainless steel shim sheet specifications, including standards, grades, thickness range, sizes, and surface finish.

Specification Details
Standard ASTM A240 / ASME SA-240
Grades 304 and 316
Thickness 0.025 mm to 3 mm (0.001 in to 0.125 in)
Width 150 mm to 300 mm (6 in to 12 in)
Length 300 mm to 2,500 mm (12 in to 100 in)
Temper Annealed, Half Hard, Full Hard
Finish Cold Rolled (2B, 2D, BA)
Forms Flat Sheet, Slotted Sheet, Roll, Peelable Sheet

Available Thickness Range

The available thickness range of Stainless Steel Shim Sheets is listed below.

Parameter Details
Minimum Thickness 0.025 mm (0.001 in)
Maximum Thickness 3 mm (0.125 in)
Common Increments 0.050 mm, 0.075 mm, 0.100 mm, 0.125 mm, 0.250 mm, 0.500 mm, 0.800 mm, 1.250 mm
Application Range From ultra-thin shimming to heavy-duty packing applications
Thickness Tolerance As per ASTM A480 (tightly controlled)

Standard Dimensions (Width x Length)

The standard dimensions of Stainless steel shim sheets are listed below in the table.

Category Size Range / Details
Flat Sheet Sizes 150 mm x 300 mm (6 in x 12 in), 150 mm x 625 mm (6 in x 25 in)
Roll Sizes 300 mm x 1,250 mm, 300 mm x 2,500 mm
Precut Slotted Shims 38 mm x 38 mm up to 150 mm x 150 mm
Packaging Supplied in sets of 10 to 20 pieces

Stainless Steel Shim Sheet Price

Stainless steel shim sheet prices range from approximately Rs 300-500/kg in India for standard grades 304 and 316. In the US market, it ranges from USD $2.00 to over USD $15.00 per kilogram. Final pricing depends on grade, thickness, sheet dimensions, ordered quantity, temper condition, and surface finish. Contact our team for a current quote on SS shim sheets.

Stainless Steel Shim Sheet Types

Stainless steel shim sheets are available in 4 primary configurations, given below.

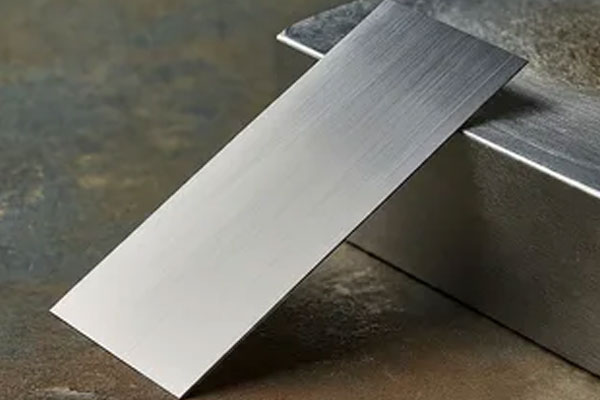

Flat Shim Sheets

Flat Shim Sheets

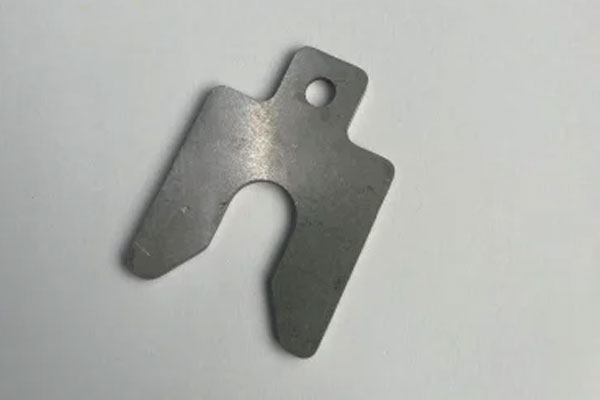

Slotted Shim Sheets

Slotted Shim Sheets

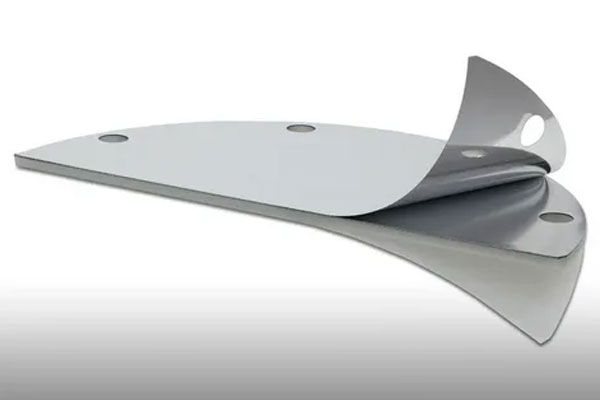

Peelable Laminated Shim Sheets

Peelable / Laminated Shim Sheets

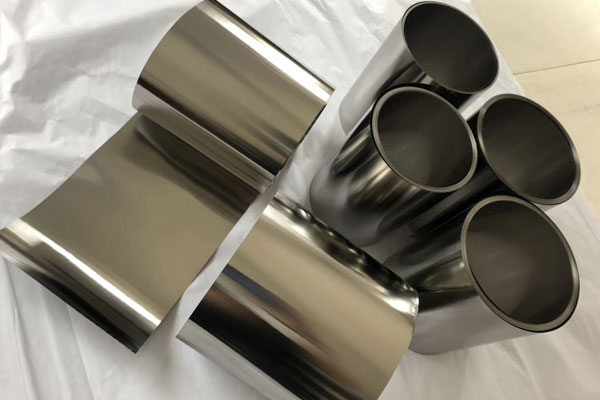

Shim Stock Rolls

Shim Stock Rolls

Request a Quote for Stainless Steel Shim Sheets Request a Quote

Industrial Applications of Stainless Steel Shim Sheets

Stainless steel shim sheets serve a broad range of industrial applications and uses, from precision machine alignment to electromagnetic shielding.

Machine Alignment & Mounting

SS shim sheets are placed under motor feet, pump bases, and generator mounts to achieve precise vertical and angular alignment.

Tool & Die Setup

Precision shims provide controlled clearance and height adjustment in stamping dies, injection moulds, and press tooling.

Power Generation & Process Industries

Power plants, oil refineries, and desalination facilities rely on stainless steel packing shims for turbine alignment, valve spring pressure adjustment, and pipe support spacing.

Electronics & EMI Shielding

Thin-gauge stainless steel shim foil (under 0.100 mm) serves as EMI/RFI shielding in electronic enclosures.

Stainless Steel Shim Sheet Grades

Common stainless steel shim sheet grades include 304 and 316. Grade 304 is the most widely stocked general-purpose shim grade; grade 316 suits corrosive environments.

Grade 304 (General Purpose)

The 18-8 austenitic composition (18% Cr, 8-11% Ni) has good corrosion resistance for general industrial conditions. It is usually supplied in full-hard, cold-rolled form to give maximum spring-back for precise alignment.

Grade 316 (Corrosion Resistant)

The addition of 2.00-3.00% molybdenum separates this grade from 304. Grade 316 shim sheets are selected for marine equipment, chemical processing plants, pharmaceutical facilities, and food processing lines where chloride or acid exposure is present.

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect stainless steel shim sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Plastic end caps on threaded and plain-end sheets
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Sheet Bundle Yard Staging
Shipping packaging Container End-Cap Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What standard sizes are Stainless Steel Shim sheets available in?+
Stainless steel shim sheets are commonly available in sizes 150 mm x 300 mm (6 in x 12 in), 150 mm x 625 mm (6 in x 25 in), and 300 mm x 1,250 mm (12 in x 50 in). Precut slotted shims come in sizes from 38 mm x 38 mm up to 150 mm x 150 mm. Custom sizes are available on request.
What thickness range is available for SS shim sheets?+
SS shim sheets come in thicknesses from 0.025 mm (0.001 in) up to 3 mm (0.125 in). Common sizes include 0.050, 0.100, 0.125, 0.250, 0.500, 0.800, and 1.250 mm.
What is the price of Stainless Steel Shim sheets?+
Stainless steel shim sheet prices range from Rs 300-500/kg in India and $2.00 to over USD $15.00 per kilogram in the US market. The final price depends on grade, thickness, dimensions, quantity, and finish. Contact us for a current quote.
Which grade of SS shim sheet should I choose, 304 or 316?+
Grade 304 is suitable for everyday uses where a medium level of corrosion resistance is adequate. Grade 316 is the better choice when the shim will face chlorides, marine conditions, or chemical processing environments. The molybdenum content in 316 (2.00-3.00%) provides meaningfully better pitting and crevice corrosion resistance.
What is the difference between full hard and annealed Stainless Steel Shim sheets?+
Full-hard shim sheets are cold rolled to maximum hardness. It springs back well and is very strong, so it works for precise shimming where the shim must not bend or deform. Annealed shim sheets are softer and easier to shape, making them better when the shim needs to be bent or formed during installation.
How is a Stainless Steel Shim sheet used for machine alignment?+
SS shim sheets are placed under machine bases, motor feet, or pump mounts to set the correct height and angle. Slotted shim sheets with pre-cut bolt slots can be slid into place quickly without removing the anchor bolts. Multiple thicknesses can be stacked to reach the exact required height adjustment.
Can Stainless Steel Shim sheets be custom-cut to specific dimensions?+
Yes. We provide custom cutting to buyer-specified width, length, and shape, including slotted, notched, or profiled shims. Custom shims can be produced from standard shim stock in any available thickness and grade.
