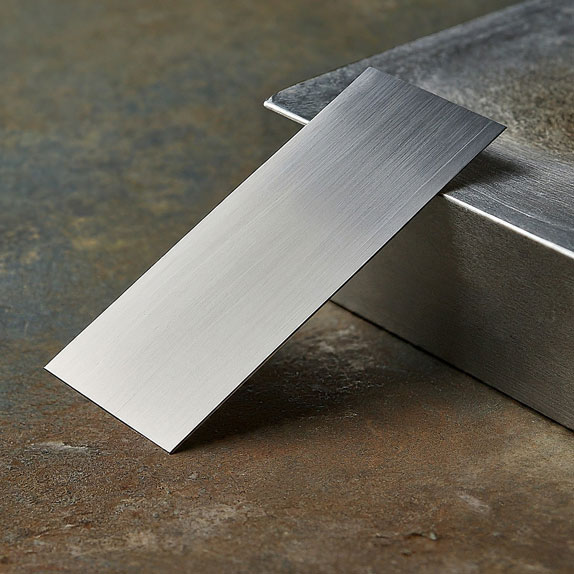

Stainless Steel 304 Shim Sheet Specifications

The table below consolidates standards, dimensions, and forms for 304 stainless steel shim sheets.

Parameter Detail
Standard ASTM A240 / ASME SA-240; ASTM A666 (Cold-Worked)
Thickness 0.025 mm (0.001") to 5.0 mm (0.197")
Width 3.2 mm to 1500 mm
Length 300 mm (12") to 6000 mm
Surface Finish 2B, BA, 2D, No.4, No.8, Hairline
Temper Soft, Quarter Hard, Half Hard, Full Hard, Spring Hard
Form Flat Sheets, Rolls/Coils, Pre-Cut, U-Cut, Alignment

Available Sizes of Stainless Steel 304 Shim Sheets

SS 304 shim sheets are stocked in thicknesses from 0.025 mm (0.001") to 5.0 mm. Standard widths are 150 mm (6"), 200 mm, 300 mm (12"), and 610 mm (24"). Lengths range from 300 mm to 6000 mm.

Stainless Steel 304 Shim Sheet Weight Chart

Approximate weights for common sizes at 7.93 g/cm³ density are as follows.

Thickness (mm) Size (mm) Weight (kg/pc)
0.10 300 × 300 0.072
0.50 300 × 300 0.360
1.00 300 × 600 1.440
2.00 610 × 1270 12.38

Temper Conditions for Stainless Steel 304 Shim Sheets

  • Soft (Annealed): Soft temper provides maximum ductility at 515 MPa tensile strength and 35% elongation. It is non-magnetic and ideal for bending or forming.
  • Quarter Hard: Quarter Hard shim goes through light cold reduction, raising yield strength above the annealed baseline.
  • Half Hard: Half Hard 304 shim stock balances increased tensile strength with moderate ductility. Slight magnetic response may occur.
  • Full Hard: Full Hard offers the highest cold-worked strength with minimal ductility for load-bearing applications.
  • Spring Hard (Spring Temper): Spring Temper offers high elastic recovery for spring clips, retaining washers, and feeler gauge stock.

Surface Finishes Available

Stainless steel 304 shim sheets are available in the following finishes.

  • 2B (cold-rolled, smooth) SS 304 shim sheet
  • BA (Bright Annealed) AISI 304 shim sheet
  • 2D (cold-rolled, matte, non-reflective finish)
  • No.4 (brushed finish with fine polishing lines)
  • No.8 (mirror finish with high reflectivity)
  • Hairline (directional satin finish with continuous fine lines)

Stainless Steel 304 Shim Sheet Price

SS 304 shim sheet prices in India start from ₹300 and goes up to 350 per kg for standard thicknesses. In the US, flat sheets (0.010" × 6" × 25") start around $1.20 to $ 5.80. Pricing depends on thickness, temper, finish, quantity, and delivery location.

Chemical Composition of Stainless Steel 304 Shim Sheets

Type 304 (UNS S30400) composition per ASME SA-240/ ASTM A240 is listed below in weight percentage (%):

CarbonC
0.08 max
ManganeseMn
2.00 max
PhosphorusP
0.045 max
SulfurS
0.030 max
SiliconSi
1.00 max
ChromiumCr
18.0–20.0
NickelNi
8.0–11.0

Mechanical Properties of Stainless Steel 304 Shim Sheets

Values below apply to the annealed (soft) condition per ASTM A240. Cold-worked tempers achieve higher strength per ASTM A666.

515 (75)
MPa (ksi)
Tensile Strength (min)
205 (30)
MPa (ksi)
Yield Strength, 0.2% Offset (min)
35
%
Elongation in 2 in. (min)
Property Value Unit
Tensile Strength (min) 515 (75) MPa (ksi)
Yield Strength, 0.2% Offset (min) 205 (30) MPa (ksi)
Elongation in 2 in. (min) 35 %
Request a Quote for SS 304 Shim Sheets Request a Quote

Equivalent Grade Designations for Stainless Steel 304 Shim Sheet

International equivalents across various regions, including EN, UNS, JIS, and more, for Grade 304 shim sheets are listed below.

Standard Designation
UNS S30400
EN 10088 X5CrNi18-10 / 1.4301
JIS G 4305 SUS 304
GB/T 20878 06Cr19Ni10
GOST 5632 08Kh18N10
AFNOR Z7CN18-09

Industrial Applications of Stainless Steel 304 Shim Sheets

Stainless Steel 304 Shim Sheets serve 5 major sectors for spacing, clearance adjustment, and gap filling.

Aerospace & Defence

Aerospace manufacturers use 304 precision shim stock for airframe clearance adjustment and engine parts spacing.

Food & Beverage Processing

Grade 304's corrosion resistance makes it suitable for shimming conveyor systems and packaging line equipment.

Medical Devices & Equipment

The alloy is used in non-implant medical equipment, instrumentation, and diagnostic equipment frames.

Automotive & General Machinery

Production lines use 304 shim sheets for die alignment, fixture spacing, and tolerance correction.

Chemical & Petrochemical Processing

SS 304 shim sheets resist most organic acids and serve as gasket spacers and valve shims in processing plants.

Stainless Steel 304 vs Stainless Steel 316 Shim Sheets

The table below provides a comparison between SS 304 and SS 316 shim sheets. This will help you select the right grade depending on cost, corrosion resistance, and service environment.

Parameter SS 304 Shim Sheets SS 316 Shim Sheets
Grade / UNS 304 / S30400 316 / S31600
Key Alloying Elements Chromium (18–20%), Nickel (8–10.5%) Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%)
Corrosion Resistance Good in mild and indoor environments Excellent resistance to chlorides, acids, and marine environments
Chloride Resistance Limited Excellent due to molybdenum addition
Cost More economical Higher cost (~20–30% more than 304)
Strength & Durability Good mechanical strength Offers superior corrosion resistance, especially in chloride environments
Typical Applications General shimming, fabrication, indoor use Offshore, marine, chemical processing, coastal applications
Best Use Case Cost-effective solution for standard conditions Ideal for critical environments with high corrosion risk

Shipping & Packaging

Main export packaging setup Heavy-duty wooden boxes Packing
Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Stainless Steel 304 Shim Sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

  • Heavy-duty wooden boxes with moisture barrier lining
  • HDPE stretch film wrapping on all bundles
  • Edge and corner protection with plastic padding
  • Silica gel desiccants to minimize moisture exposure
  • ISPM-15 fumigated wooden packaging for export
shipping preparation Sheet Bundle Yard Staging
Shipping packaging Sheet Bundle Edge Protection
Shipping stock Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

  • USA flagUSA
  • Canada flagCanada

Frequently Asked Questions

What are the standard sizes for SS 304 Shim Sheets?+
SS 304 shim sheets come in thicknesses from 0.025 mm to 5.0 mm, widths from 3.2 mm to 1500 mm, and lengths from 300 mm to 6000 mm. Custom sizes available on request.
What temper conditions are available for 304 Stainless Steel Shim Sheets?+
304 SS shim sheets are supplied in Soft (Annealed), Quarter Hard, Half Hard, Full Hard, and Spring Hard conditions.
Is 304 Stainless Steel Shim Stock magnetic?+
In the annealed condition, 304 shim stock is generally non-magnetic. Cold working to Half Hard or Full Hard can induce slight magnetism from strain-induced martensite.
What is the difference between 304 and 316 Stainless Steel Shim Sheets?+
304 offers good corrosion resistance at a lower cost. 316 contains 2–3% molybdenum for superior chloride resistance. Choose 304 for standard use; 316 for marine or chemical environments.
What ASTM Specification covers SS 304 Shim Sheets?+
ASTM A240 / ASME SA-240 covers the annealed condition. ASTM A666 applies to cold-worked temper conditions.
Can SS 304 Shim Sheets be custom cut to specific dimensions?+
Yes. Sachiya Steel International provides custom cutting to any width and length, alongside pre-cut, U-cut, and alignment shim options.
What is the price of SS 304 Shim Sheets per kg?+
Prices start from ₹300–350 per kg in India. Final pricing varies by thickness, temper, quantity, and delivery location.
What is the HS Code for Stainless Steel Shim Sheets?+
Flat-rolled stainless products under 4.75 mm thickness fall under HS heading 7219 or 7220. Confirm the exact subheading with your customs authority.
