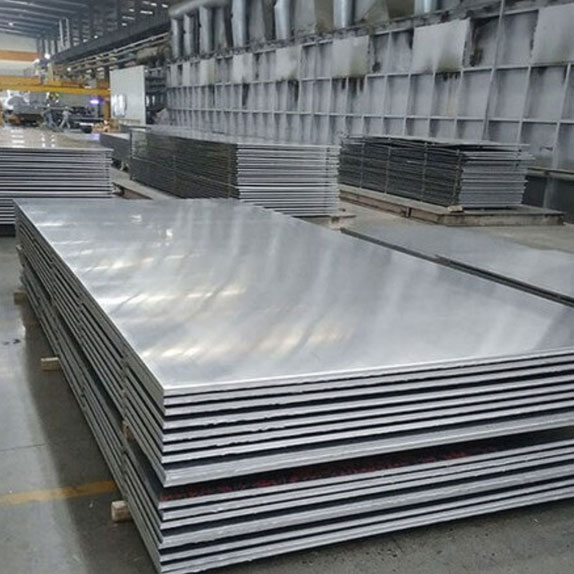

Specifications of Stainless Steel 316 HR Sheet
SS 316 hot-rolled sheet specifications, including standards, dimensions, finish, fabrication, and more, are covered in detail in the table below:
| Parameter | Specification |
|---|---|
| Product Form | Hot Rolled (HR) Sheet |
| Standards | ASTM A240 / ASME SA240 |
| Thickness Range | 3.0 mm to 100 mm (Hot Rolled) |
| Width Range | 1000 mm to 2500 mm |
| Length Range | 2000 mm to 6000 mm (custom sizes available) |
| Finish | Hot Rolled Finish (No.1) |
| Fabrication | Good weldability and formability |
| Heat Treatment | Solution Annealed |
Available Sizes of Stainless Steel 316 HR Sheet
Stainless Steel 316 HR Sheet is stocked in thicknesses from 3 mm to 100 mm, widths of 1000 mm to 2500 mm, and lengths of 2000 mm to 6000 mm. Custom-cut dimensions are available on request..
Thickness and Gauge Chart
Common hot-rolled gauges and their millimetre equivalents are listed below.
| Gauge | mm | Inches |
|---|---|---|
| 11 ga | 3.05 | 0.120" |
| 10 ga | 3.40 | 0.134" |
| 3/16" | 4.76 | 0.1875" |
| 1/4" | 6.35 | 0.250" |
Standard Sheet Sizes (4×8, 5×10)
The standard sheet sizes available at Sachiya Steel International are:
For logistics planning, weight can be calculated using the formula: thickness (mm) × width (m) × length (m) × 7.99 = weight in kg.
| Sheet Size (Feet) | Dimensions (mm) | Remarks |
|---|---|---|
| 4 × 8 ft | 1220 × 2440 mm | Most commonly used standard size |
| 5 × 10 ft | 1524 × 3048 mm | Preferred for larger fabrication requirements |
| 4 × 10 ft | 1220 × 3048 mm | Commonly stocked by many suppliers |
Stainless Steel 316 HR Sheet Price
SS 316 HR Sheet price in India is ₹250 and goes up to ₹400 per kg for standard HRAP finish sheets. In the US market, the indicative range is $3 to $6 per lb ($6.60 to $13.20 per kg). Smaller cut pieces start from around $50 per piece. Final pricing depends on thickness, width, length, order quantity, and the prevailing nickel and molybdenum surcharge. Contact Sachiya Steel International for a current quote.
Chemical Composition of Stainless Steel 316 HR Sheet
The table below lists the chemical composition of Grade 316 stainless steel per ASTM A240 / ASME SA-240 (UNS S31600).
Mechanical Properties of Stainless Steel 316 HR Sheet
ASTM A240 Type 316 hot-rolled sheet must meet the following minimum mechanical property values at room temperature.
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (min) | 515 / 75 | MPa / ksi |
| Yield Strength (min) | 205 / 30 | MPa / ksi |
| Elongation (min) | 35 | % |
Equivalent Grades of Stainless Steel 316 HR Sheets
The international equivalent designations of SS 316 HR sheets across various regions, including UNS, EN, JIS, and more, are listed in the table below:
| Standard | Designation |
|---|---|
| UNS | S31600 |
| EN (Europe) | 1.4401 / X5CrNiMo17-12-2 |
| JIS (Japan) | SUS316 |
| GB (China) | 06Cr17Ni12Mo2 |
| IS (India) | 04Cr17Ni12Mo2 |
Stainless Steel 316 HR Sheet Applications
SS 316 HR Sheet finds use across 4 major sectors. The molybdenum content (2.00 to 3.00%) is the primary reason this grade outperforms 304 in aggressive environments.
Marine and Offshore
Grade 316 is known as marine grade stainless steel. It is used for boat fittings, dock hardware, desalination plant parts, and offshore platform cladding.
Chemical & Petrochemical Industry
Chemical reactors, storage tanks, and heat exchangers from 316 HR sheet tolerate long-term exposure to chemical environments. Petrochemical plants use this sheet in column internals and flue gas treatment systems.
Food and Pharmaceutical Equipment
SS 316 HR sheet meets sanitary requirements for food contact surfaces. Dairy processing tanks, brewing vessels, pharmaceutical mixing equipment, and cleanroom wall panels are common applications.
Architectural and Construction
Exterior cladding, structural supports, and building facades in coastal or polluted urban environments benefit from the alloy's atmospheric corrosion resistance.
Stainless Steel 316 HR Sheet vs Cold Rolled Sheet
The table below provides a clear comparison between SS 316 hot-rolled and cold-rolled sheets:
| Parameter | Hot Rolled (HR) 316 Sheet | Cold Rolled (CR) 316 Sheet |
|---|---|---|
| Manufacturing Process | Produced at high temperature | Processed further at room temperature |
| Surface Finish | Rough, HRAP (Hot Rolled Annealed & Pickled) finish | Smooth, 2B finish |
| Dimensional Tolerance | Wider tolerances | Tighter thickness control |
| Thickness Range | 3 mm to 100 mm | Below 3 mm (thin gauges) |
| Surface Appearance | Less refined, industrial look | Smooth, clean, and aesthetic finish |
| Cost | Lower cost per kg (especially for thicker sections) | Higher cost due to additional processing |
| Best Use Case | Structural applications where strength is prioritized over appearance | Applications requiring precision and surface finish |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect Stainless Steel 316 HR sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Edge and corner protection with plastic padding
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Sheet Bundle Yard Staging
Sheet Bundle Edge Protection
Wrapped Export-Ready Bundles
