Stainless Steel 316L HR Sheet Manufacturer and Supplier

Stainless Steel 316L HR Sheet is an austenitic stainless steel flat product manufactured to ASTM A240 / ASME SA240 (UNS S31603). SS 316L Hot Rolled Sheet contains 2.00– 3.00% molybdenum, which sets it apart from standard 304/304L grades by providing pitting and crevice corrosion resistance in chloride-bearing environments.

SS 316L HR Sheet grade features 16.0– 18.0% chromium and 10.0– 14.0% nickel. We also limit the carbon content to a 0.030% maximum, which helps prevent sensitisation and maintains the metal's integrity. Carbide precipitation in heat-affected zones during welding is restricted by this low carbon ceiling, which establishes the "L" designation as the defining characteristic of the designation. Tensile strength must be at least 70 ksi (485 MPa), yield strength must be at least 25 ksi (170 MPa), and elongation must be at least 35%.

As an ISO 9001, ISO 14001, and ISO 45001 certified manufacturer, Sachiya Steel International specialises in 430 CR Stainless Steel Sheets. Our Mumbai facility stocks 1,500– 2,000 metric tons in gauges from 0.47 to 3.05 mm. We ensure global compliance by providing EN 10204 Type 3.1 certificates for all shipments to our partners in various countries

This page provides a complete technical and commercial overview of these materials, organised into the following sections:

Specification
Pricing
Chemical Composition
Mechanical Properties
Equivalent Grades
Industrial Applications
HR vs. CR Comparison
Shipping and Packaging
Frequently Asked Questions

Stainless Steel 316L HR Sheet Specifications

This specification table for SS 316L Hot Rolled (HR) Sheets outlines the technical standards, dimensional ranges, and surface finishes available for heavy-duty industrial fabrication.

Parameter	Details
Standard	ASTM A240, ASME SA240, EN 10088-2, JIS G4304
Thickness (HR)	3.0 mm to 150 mm (Hot Rolled / Plate)
Width	1000 mm, 1219 mm, 1250 mm, 1500 mm, 2000 mm, 2500 mm
Length	2000 mm, 2438 mm, 3000 mm, 6000 mm, 12000 mm
Finish	No. 1 (Hot Rolled, Annealed and Pickled - HRAP)
Form	HR Sheet, HR Plate, Coils
Hardness	Max 95 HRB (Rockwell B) / Max 217 HB (Brinell)
Processing	Laser Cutting, Plasma Cutting, Waterjet Cutting, Shearing
Edge	Mill Edge, Slit Edge

Available Sizes of Stainless Steel 316L HR Sheet

Stainless Steel 316L HR Sheet is stocked across a full range of thicknesses, widths, and lengths. Standard stock sizes and custom-cut dimensions are both available, with tolerances per ASME SA-480.

Standard Sheet Dimensions

The following table details the standard dimensional availability and thickness ranges for SS 316L Hot Rolled (HR) sheets to assist in your procurement planning.

Parameter	Metric Range (mm)	Imperial Range (inch/ft)
Thickness	3 mm – 150 mm	0.120" – 6.0"
Width	1000 mm – 2500 mm	36" – 96"
Standard Lengths	2000, 2500, 3000, 6000 mm	6.5, 8.2, 9.8, 19.6 ft
Common Stock Sizes	1220 x 2440 / 1500 x 3050 mm	4' x 8' / 5' x 10'
Tolerance Standard	ASME SA-480	ASTM A480

Custom Cut-to-Size Options

We provide cut-to-size processing for non-standard requirements with tolerances of +/- 1/16" (1.6 mm). Contact us with your exact dimensions for fabrication-ready sheets.

Stainless Steel 316L HR Sheet Price

Current market benchmarks for 316L HR Sheet are ₹280– ₹400/kg in India and $6.60 – $17.60 per kg in the US. Please note that finish requirements and fluctuating raw material surcharges, specifically nickel and moly, will impact these baseline figures.

Chemical Composition of Stainless Steel 316L HR Sheet

The table below lists the element-by-element composition of an ASTM A240/ ASME SA240 Grade 316L (UNS S31603) stainless steel sheet.

Molybdenum at 2.00– 3.00% strengthens resistance to chloride pitting, while chromium forms a passive oxide layer for general corrosion protection.

Carbon C

0.030% max

Manganese Mn

2.00% max

Phosphorus P

0.045% max

Sulfur S

0.030% max

Silicon Si

1.00% max

Chromium Cr

16.0 - 18.0%

Nickel Ni

10.0 - 14.0%

Molybdenum Mo

2.00 - 3.00%

Nitrogen N

0.10% max

Mechanical Properties of Stainless Steel 316L HR Sheet

ASTM A240 Grade 316L HR Sheet meets the following minimum mechanical values per ASME SA-240.

The 35% minimum elongation confirms that this grade can be cold formed, bent, and drawn without cracking under standard shop conditions.

70/485

MPa (ksi)

Tensile Strength (min)

25/170

MPa (ksi)

Yield Strength, 0.2% offset (min)

Elongation in 2 in. (min)

217 / 217

Brinell Hardness (typical)

Property	Imperial	Metric
Tensile Strength (min)	70 ksi	485 MPa
Yield Strength, 0.2% offset (min)	25 ksi	170 MPa
Elongation in 2 in. (min)	35%	35%
Brinell Hardness (typical)	217 HB	217 HB
Rockwell Hardness (typical)	B 95	B 95

Request a Quote for 316L HR Sheet Request a Quote

Equivalent designation of Stainless Steel 316L HR Sheets

The following table shows the well-recognised international designations for the Stainless Steel 316L HR Sheet.

Standard Body	Designation / Grade
UNS	S31603
AISI / SAE (USA)	316L
EN 10088 (Europe)	1.4404 / X2CrNiMo17-12-2
JIS G4305 (Japan)	SUS 316L
GB/T (China, current)	022Cr17Ni12Mo2
GB (China, legacy)	00Cr17Ni14Mo2
BS (UK, legacy)	316S11 / 316S12
AFNOR (France)	Z3 CND 17-11-02
GOST (Russia)	03Ð¥17Ð14Ðœ2

Applications of Stainless Steel 316L HR Sheet

Chemical & Petrochemical Industry

316L is one of the reliable options in acidic pipelines and tanks. Its unique chemical mixture avoids localised corrosion and structural leaks, making the alloy a standard in tough chemical processing plants.

Marine & Offshore Structures

This alloy is oil rigs’ and ships' preferred option. Though not immune to high-chloride or stagnant seawater conditions, it retains its strength and resists chloride-induced pitting better than 304 when submerged in seawater.

Food, Pharmaceutical & Brewery Equipment

Perfect for clean environments like dairies and labs. It handles high-heat cleaning and welding without trapping bacteria or corroding.

Architectural & Structural Cladding

316L HR sheet offers a sleek and long-lasting exterior for structures located along the coast. It is resistant to damage from pollution and salt air, and it maintains its beautiful appearance for decades.

Stainless Steel 316L HR Sheet vs 316L CR Sheet

This comparative chart outline the principal functional and physical distinctions between 316L hot-rolled and cold-rolled sheets.

316L HR sheet has a No.1 surface and is treated above recrystallisation. It costs less per kg than cold rolled equivalents and covers thicknesses from 3 to 150 mm. Below the recrystallisation point, cold rolled 316L sheet produces a nicer 2B finish with tighter tolerances, usually limited to gauges below 6 mm.

Feature	316L HR (Hot Rolled)	316L CR (Cold Rolled)
Thickness Range	3 mm to 150 mm	Typically below 6 mm
Surface Finish	No. 1 (Dull, scaled, and pickled)	2B / BA (Smooth, bright, and reflective)
Dimensional Tolerance	Standard (ASME SA-480)	Tighter / High Precision
Production Process	Above recrystallization temperature	Below recrystallization temperature
Relative Cost	Lower cost per kg	Higher (due to extra processing)
Best Application	Pressure vessels, heavy structural work	Precision parts, decorative/visible surfaces

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Stainless Steel 316L HR sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Edge and corner protection with plastic padding
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Sheet Bundle Yard Staging

Sheet Bundle Edge Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What is the cost of SS 316L HR Sheet per kg?+

SS 316L HR Sheet price in India is approximately ₹280 to ₹400 per kg, depending on thickness, finish, and order volume. Contact Sachiya Steel International for the most current rates.

What is HR Stainless Steel Sheet?+

HR (Hot Rolled) stainless steel sheet is produced by rolling steel above its recrystallisation temperature, resulting in a No.1 finish. Hot rolled sheet is available in thicknesses from 3 mm to 150 mm.

What Sizes are available for 316L HR Sheet?+

The thickness of our 316L HR Sheet stock ranges from 3 mm to 150 mm. The widths range from 1000 mm to 2500 mm, and the lengths can be as long as 6000 mm. We have standard sheets in stock that are 1220x2440 mm (4x8 ft) and can cut them to your specifications.

What is the difference between 316 and 316L HR Sheet?+

Carbon is restricted to a maximum of 0.030% in 316L, while standard 316 permits up to 0.08%. This reduction enhances the weldability and fortifies the resistance to intergranular corrosion. However, it also results in a slightly lower minimum tensile strength of 70 ksi compared to 75 ksi.

What specification does 316L HR Sheet conform to?+

316L HR Sheet conforms to ASTM A240 / ASME SA240 as the primary specification. Additional applicable standards are AMS 5507, AMS 5524, and ASME SA-666.

Can 316L HR Sheet be welded?+

Carbide precipitation during welding isn't an issue with 316L HR Sheet, thanks to its 0.030% max carbon. This protects the heat-affected zone from intergranular corrosion and eliminates the need for post-weld annealing. It offers truly excellent welding characteristics.

What is the minimum order quantity for 316L HR Sheet?+

Sachiya Steel International offers flexible order quantities, from single sheets to bulk tonnage. Reach out to our sales desk with your volume and size needs.

What surface finishes are available for 316L HR Sheet?+

The standard supply finish is No.1 (hot rolled, annealed, and pickled). Upgraded options, including 2B, #4 brushed, BA (bright annealed), and #8 mirror finishes, are available through additional processing.

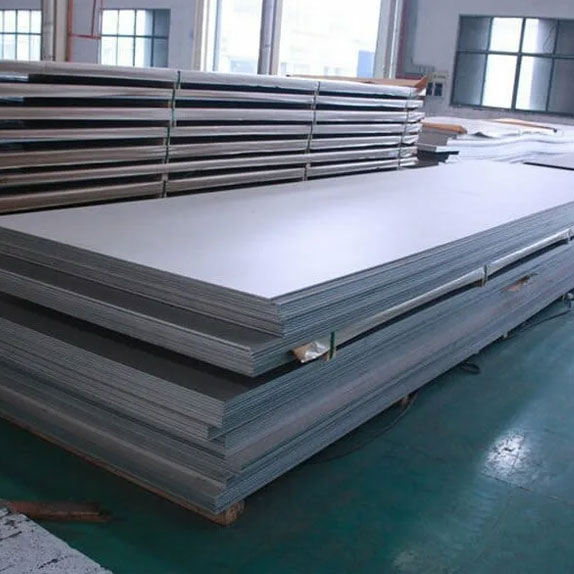

Stainless Steel 316L Hot Rolled Sheet
