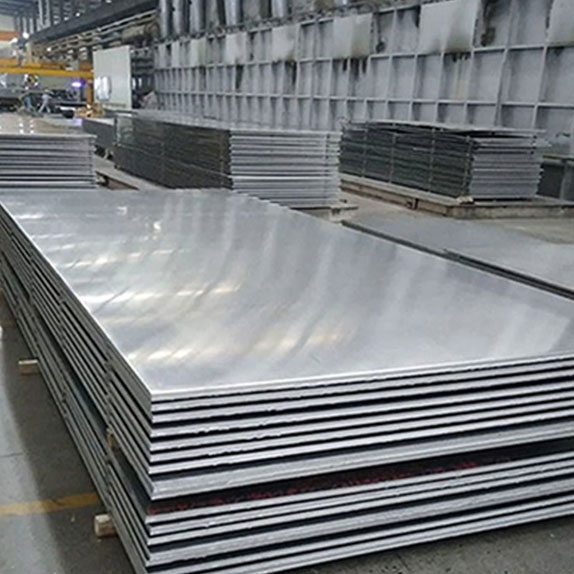

Stainless Steel 430 CR Sheet Specification
Refer to the following table for the technical standards and precise dimensional ranges of SS 430 Cold Rolled (CR) Sheets.
| Parameter | Details |
|---|---|
| Standard | ASTM A240 / ASME SA240, JIS G4305, EN 10088-2 |
| Thickness (CR) | 0.3 mm to 6.0 mm (Commonly 0.5 mm - 3.0 mm) |
| Width | 1000 mm, 1219 mm, 1250 mm, 1500 mm (Up to 2000 mm) |
| Length | 2000 mm, 2438 mm (8ft), 3048 mm (10ft), 6000 mm |
| Finish | 2B (Matte), BA (Bright Annealed), No. 4 (Brushed), HL (Hairline) |
| Edge | Slit Edge, Mill Edge |
| Hardness | Max 89 HRB (Rockwell B) / 183 HB (Brinell) |
| Form | Sheets, Coils, Strips |
| Protection | PVC Film, Laser Film, Paper Interleaved |
Available Sizes of Stainless Steel 430 CR Sheet
Refer to the following table for the complete range of standard stock sizes and available thickness gauges for SS 430 cold-rolled (CR) sheets.
| Dimension Parameter | Metric Range (mm) | Imperial Range (inch/ft) |
|---|---|---|
| Thickness Range | 0.3 mm – 6.0 mm | 0.012" – 0.236" |
| Common Widths | 1000, 1219, 1250, 1524 mm | 36", 48", 50", 60" |
| Common Lengths | 2000, 2438, 3048, 6096 mm | 6.5 ft, 8 ft, 10 ft, 20 ft |
| Standard Sheet Sizes | 1220 x 2440 / 1500 x 3000 mm | 4' x 8' / 5' x 10' |
| Tolerances | ASTM A480 / ASME SA480 | - |
Stainless Steel 430 CR Sheet Price per Kg
Stainless Steel 430 CR sheet price in India ranges from approximately ₹130 to ₹450 per kg, depending on thickness, surface finish, quantity, and prevailing raw material rates. Mirror finishes and thinner gauges sit at the higher end. In the US market, sheet prices run from $2.50 to $4.50 per kg based on dimensions. Pricing varies with ferrochrome costs, mill surcharges, and freight. Contact our sales desk for a live quotation.
Chemical Composition of Stainless Steel 430 CR Sheet
The table below lists the chemical composition of ASTM A240 / ASME SA-240 Grade 430, UNS S43000, in the annealed condition.
This high-chromium alloy (16–18%) delivers excellent corrosion resistance. Low carbon levels and controlled impurities like phosphorus and sulfur guarantee long-term durability.
Mechanical Properties of 430 Cold Rolled Stainless Steel Sheet
These minimum values apply to SS 430 CR sheet in the annealed condition per ASTM A240 / ASME SA-240.
Grade 430's formability suits moderate bending and drawing. For deep drawing, an Nb-stabilised 430DDQ variant offers improved ductility.
| Property | Imperial | Metric |
|---|---|---|
| Tensile Strength (min) | 65 ksi | 450 MPa |
| Yield Strength, 0.2% Offset (min) | 30 ksi | 205 MPa |
| Elongation in 2 in. (min) | 22% | 22% |
Equivalent Table for Stainless Steel 430 CR Sheet
Global engineering and procurement are simplified by this SS 430 (UNS S43000) equivalent grade table. It gives designations for all key worldwide standards, enabling project compatibility independent of source region.
| Standard Body | Designation / Grade |
|---|---|
| UNS (USA) | S43000 |
| AISI / SAE (USA) | 430 |
| EN 10088 (Europe) | 1.4016 / X6Cr17 |
| JIS G4305 (Japan) | SUS 430 |
| GB/T (China, current) | 10Cr17 / 06Cr17 |
| BS (UK, legacy) | 430S17 |
| AFNOR (France) | Z8C17 |
| GOST (Russia) | 12Kh17 |
Applications of Stainless Steel 430 CR Sheet
Stainless Steel 430 CR provides corrosion resistance at a reasonable price. In order to ascertain whether it is appropriate for your particular application, investigate its adaptable performance in the four primary sectors listed below:
Appliance & Kitchen Equipment
Used for durable dishwasher liners, refrigerator panels, and range hoods, where Grade 430 CR sheets excel.
Architectural & Decorative
This adaptable alloy is utilised in the construction of cladding, roofing, and lift doors for projects that are located on the interior (inland).
Automotive Trim & Components
Commonly used for shiny exterior trim strips, grille accents, and heat shields in vehicle exhaust systems.
Industrial & Chemical Processing
Ideally suited for use in tank linings, ductwork and flue components that are exposed to conditions containing dry gas or mild acids.
Stainless Steel 430 CR Sheet vs 304 Stainless Steel Sheet
Review the comparison table below to identify the primary technical and performance differences between these two grades.
Alloy 430 and SS 304 are the two most comparable stainless steel sheet grades. Grade 430 is ferritic with 16 to 18% chromium and no nickel; 304 is austenitic with 18% chromium and 8% nickel. This gap drives every difference in performance, cost, and suitability.
Key Differences Between SS 430 and 304 Sheet
| Property | SS 430 | SS 304 |
|---|---|---|
| Chromium | 16–18% | 18–20% |
| Nickel | None (0.75% max) | 8–10.5% |
| Magnetic | Yes | No (annealed) |
| Tensile Strength | 450 MPa min | 515 MPa min |
| Elongation | 22% | 40% |
| Corrosion Resistance | Moderate | High |
| Relative Cost | Lower | Higher |
Shipping & Packaging
Heavy-duty wooden boxes Packing
We strictly follow seaworthy export handling standards to protect Stainless Steel 430 CR sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.
- Heavy-duty wooden boxes with moisture barrier lining
- HDPE stretch film wrapping on all bundles
- Edge and corner protection with plastic padding
- Silica gel desiccants to minimize moisture exposure
- ISPM-15 fumigated wooden packaging for export
Sheet Bundle Yard
Staging
Sheet Bundle Edge
Protection
Wrapped Export-Ready
Bundles
