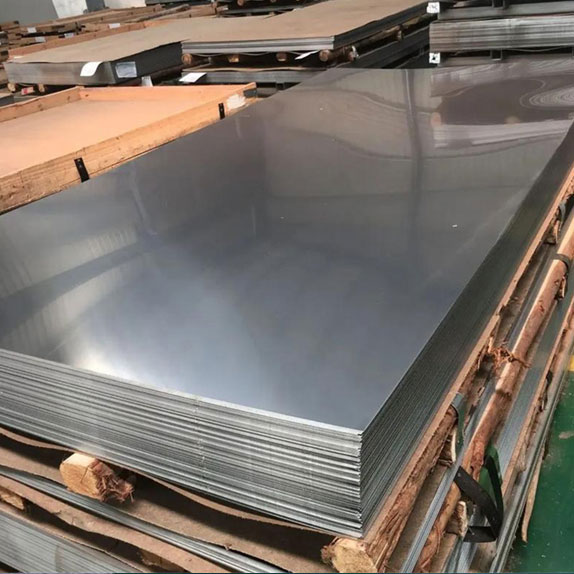

Stainless Steel 202 CR Sheet Manufacturer and Supplier

Stainless Steel 202 CR Sheet is a 200-series austenitic stainless steel flat product manufactured to ASTM A240 / ASME SA-240, Type 202 (UNS S20200). The alloy belongs to the Cr-Mn-Ni family; it consists of 17.0–19.0% chromium, 4.0–6.0% nickel, and 7.50–10.00% manganese. Manganese and nitrogen partially substitute for nickel, reducing material cost while preserving the austenitic crystal structure.

Minimum tensile strength is 620 MPa (90 ksi), yield strength is 260 MPa (38 ksi), and elongation reaches 40%. Hardness does not exceed HRB 100 / HB 241. Cold rolling produces tighter dimensional tolerances and smoother surface quality than hot-rolled variants. The grade provides moderate corrosion resistance, good formability, and a density of approximately 7.8 g/cm³.

Sachiya Steel International is an ISO 9001, ISO 14001, and ISO 45001 certified manufacturer, supplier, stockist, and exporter of Stainless Steel 202 CR Sheet, based in Mumbai, India, with over two decades of experience. We stock SS 202 Cold Rolled Sheet in thicknesses from 0.5 mm to 6.4 mm, widths up to 2000 mm, and finishes including 2B, BA, No.4, and mirror. It is generally found in architectural cladding, food service equipment, transportation interiors, and general fabrication. All shipments include mill test certificates per EN 10204 3.1.

This page covers the following sections:

Specifications
Pricing
Chemical Composition
Mechanical Properties
Equivalent Designations
Grade Comparison
Industrial Applications
Shipping & Packaging
Frequently Asked Questions

Specifications of Stainless Steel 202 CR Sheet

The specifications of Stainless Steel 202 CR Sheet, including standards, surface finish and form, are mentioned in the table below.

Parameter	Specification
Standards	ASTM A240 / ASME SA240
Size Range	Width: 1000 mm, 1220 mm, 1250 mm, 1500 mm
Wall Thickness	0.3 mm to 3.0 mm (Cold Rolled range)
Length	2000 mm, 2440 mm, 2500 mm, 3000 mm (Custom sizes available)
End Type	Mill Edge (ME) / Slit Edge (SE)
Surface Finish	2B, BA, No.4, Hairline, Mirror Finish
Form	Sheets, Coils, Strips

Available Sizes of Stainless Steel 202 CR Sheet

SS 202 CR Sheet is stocked in thicknesses from 0.5 mm to 6.4 mm, widths of 1000 mm, 1219 mm, 1500 mm, and 2000 mm, and lengths of 2000 mm, 2440 mm, 3000 mm, and 6000 mm. Custom sizes are produced as per the client's specification.

Dimension	Range
Thickness	0.5 mm – 6.4 mm
Width	1000, 1219, 1500, 1800, 2000 mm
Length	2000, 2440, 3000, 5800, 6000 mm
Custom Sizes	Available on request

Gauge-to-Millimetre Thickness Reference

Buyers specifying thickness in gauge units can reference this conversion for SS 202 CR Sheet.

Gauge	Approx. Thickness (mm)
26	0.46
24	0.61
22	0.76
20	0.91
18	1.22
16	1.52
14	1.90

Stainless Steel 202 CR Sheet Price

Stainless Steel 202 CR Sheet's price is around ₹145 per kg in India and $1.2-1.3 USD for standard sizes. The final cost varies based on thickness, surface finish, width, order quantity, and prevailing market conditions. This grade costs 15–25% less than SS 304 CR Sheet due to lower nickel content. Contact Sachiya Steel International for current pricing.

Chemical Composition of Stainless Steel 202 CR Sheet

The chemical composition of Stainless Steel 202 CR Sheet, with its proportion in percentage, is listed below.

Carbon C

0.15 max

Manganese Mn

7.50–10.00

Phosphorus P

0.060 max

Sulfur S

0.030 max

Silicon Si

1.00 max

Chromium Cr

17.0–19.0

Nickel Ni

4.0–6.0

Nitrogen N

0.25 max

Mechanical Properties of Stainless Steel 202 CR Sheet

The mechanical properties of Stainless Steel 202 CR Sheet, including tensile strength and elongation, are listed in the table.

620 / 90

MPa / ksi

Tensile Strength (min)

260 / 38

MPa / ksi

Yield Strength 0.2% (min)

40%

Elongation (min)

100 / 241

HRB / HB

Hardness (max)

Property	Value	Unit
Tensile Strength (min)	620 / 90	MPa / ksi
Yield Strength 0.2% (min)	260 / 38	MPa / ksi
Elongation (min)	40	%
Hardness (max)	100 / 241	HRB / HB

Request a Quote for SS 202 CR Sheet Request a Quote

Equivalent Designations of Stainless Steel 202 CR Sheet

International designations equivalent to Stainless Steel 202 CR Sheet with its JIS and UNS are listed below.

Standard	Designation
UNS	S20200
AISI	202
EN / DIN	1.4373 / X12CrMnNiN17-7-5
JIS	SUS 202
China (GB)	1Cr18Mn8Ni5N

Industrial Applications of Stainless Steel 202 CR Sheet

Stainless Steel 202 CR Sheet is employed in applications that demand both corrosion resistance and reliable high performance.

Architectural & Interior Applications

SS 202 CR Sheet is used for elevator panels, door frames, window trims, and decorative column covers.

Food Service & Kitchen Equipment

Grade 202 cold-rolled sheet is a common material for commercial sinks, countertops, utensils, and restaurant equipment.

Transportation & Automotive

Used for railway coach interiors, bus body panels, and automotive trim components.

General Fabrication & Industrial Use

This grade is found in storage tanks, enclosures, brackets, and structural components in dry or mildly corrosive indoor settings.

Stainless Steel 202 CR Sheet vs Stainless Steel 304 CR Sheet

SS 202 CR sheet costs less and offers strength, while SS 304 CR provides superior corrosion resistance in high-performing applications.

Parameter	SS 202 CR Sheet	SS 304 CR Sheet
Composition Approach	Uses manganese and nitrogen to reduce nickel content	Contains 8.0–10.5% nickel
Tensile Strength	~620 MPa	~515 MPa
Cost	15–25% lower	Higher cost
Corrosion Resistance	Moderate	Superior, especially in outdoor and chemical environments
Application Suitability	Indoor use, moderate exposure	Outdoor and chemically aggressive environments
Overall Advantage	Cost-effective with higher strength	Better corrosion resistance and durability

Shipping & Packaging

Heavy-duty wooden boxes Packing

Export Packaging Standard

We strictly follow seaworthy export handling standards to protect Stainless Steel 202 CR sheets from transit damage, moisture ingress, and surface contamination during long-distance dispatch.

Heavy-duty wooden boxes with moisture barrier lining
HDPE stretch film wrapping on all bundles
Edge and corner protection with plastic padding
Silica gel desiccants to minimize moisture exposure
ISPM-15 fumigated wooden packaging for export

Sheet Bundle Yard Staging

Sheet Bundle Edge Protection

Wrapped Export-Ready Bundles

We Export Worldwide

Sachiya Steel International supplies stainless steel products to major industrial markets across North America, Europe, the Middle East, Asia and Africa with export-ready documentation and logistics support.

USA
Canada

Frequently Asked Questions

What is the price of Stainless Steel 202 CR Sheet per kg?+

In India, Stainless Steel 202 CR Sheet costs from about ₹145 per kg (ex-works). The exact price depends on thickness, surface finish, width, and how much you order. Contact Sachiya Steel International for the latest quotation.

What are the available thicknesses for SS 202 CR Sheet?+

SS 202 Cold Rolled Sheet is supplied in thicknesses from 0.5 mm up to 6.4 mm. This corresponds to gauge sizes from 26 gauge (0.46 mm) to 14 gauge (1.90 mm).

Which is better for my application: SS 202 CR Sheet or SS 304 CR Sheet?+

Grade 202 is stronger (620 MPa vs 515 MPa) and affordable. It is used for indoor and mildly corrosive environments. Grade 304 resists rust and corrosion better because it has more nickel (8.0–10.5%). It is better for outdoor use and harsh or chemical environments.

What surface finishes are available for 202 Cold Rolled Stainless Steel Sheet?+

Five surface finishes available are 2B, BA (bright annealed), No.4 (brushed/satin), mirror (No.8), and matt. 2B, BA (bright annealed), No.4 (brushed/satin), mirror (No.8), and matt. PVC-coated variants are also available.

Is Stainless Steel 202 CR Sheet suitable for food-grade applications?+

Yes, for mild food-contact conditions. SS 202 CR Sheet is used in sinks, utensils, and restaurant equipment. For prolonged acidic food contact or aggressive cleaning chemicals, SS 304 is preferred.

What is the standard sheet size for SS 202 CR?+

Standard widths: 1000, 1219, 1500, and 2000 mm. Standard lengths: 2000, 2440, 3000, and 6000 mm. Custom dimensions are available as per the client's specification.

Can Stainless Steel 202 CR Sheet be welded?+

Yes. SS 202 CR Sheet can be welded using TIG and MIG methods with AWS E/ER 308L filler metal. Preheating is not required. Post-weld annealing restores full corrosion resistance.

Does the SS 202 CR Sheet become magnetic after cold rolling?+

SS 202 is non-magnetic in the annealed condition. Cold rolling can induce slight magnetism through strain-induced martensite. A post-rolling anneal restores the non-magnetic state.
